DisplayPort Interface

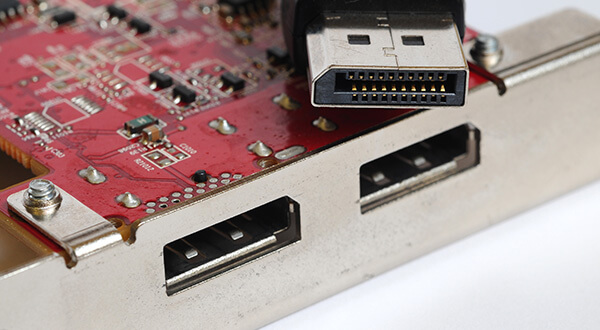

Future of Display Technology

Display standards such as DisplayPort™ and HDMI continue to revolutionize display interfaces in a variety of applications, including laptops, monitors, and docking stations.

Defined by the Video Electronics Standards Association (VESA), DisplayPort version 2.0 significantly increases data rates. This enables a higher dynamic range, improves refresh rates, and supports the highest display resolutions.

Our comprehensive solutions are adaptable to fit your unique display testing needs for VESA or HDMI certification. Our automated software dramatically reduces test time and complexity by handling setup and calibration.

Comprehensive Solutions for Display Standards

DisplayPort 2.1 Transmitter Compliance Solution

Tektronix TekExpress DP2.1 is a single button solution for the testing of UHBR10, UHBR13.5, and UHBR20 for DP2.1 Source devices. The Tektronix solution supports Enhanced DP, mDP, and Type-C connectors. Use the TekExpress DP2.1 solution to test and validate the physical electrical layer requirement of the DP source.

  • Option to de-embed the RF cable and fixture
  • Support both TP2 and TP3EQ test points
  • Signal validation helps to detect anomalies quickly in the signal
  • Supports 16 preset selection for all the UHBR data rates

DisplayPort TM is a trademark of the Video Electronics Standards Association (VESA).

See DisplayPort 2.1 datasheet

DisplayPort 1.4a Transmitter Compliance Solution

Engineers designing DisplayPort silicon for computer and embedded systems or validating the physical layer compliance of DisplayPort devices need comprehensive solutions.

With Tektronix oscilloscopes and software analysis tools such as DPOJET and SDLA, designers can characterize DisplayPort 1.4 source devices operating at HBR3 (8.1 Gbps). Our DP1.4 solution performs all transmitter testing including compliance in under 7 hours at HBR2 (5.4 Gbps) and 11 hours at HBR3.

  • Supports Standard DP, mini-DP and USB Type-C connectors
  • Fully automated DUT controlling with intelligent pattern recognition
  • Optimized measurement algorithms execute tests faster with improved accuracy
See DisplayPort 1.4 datasheet

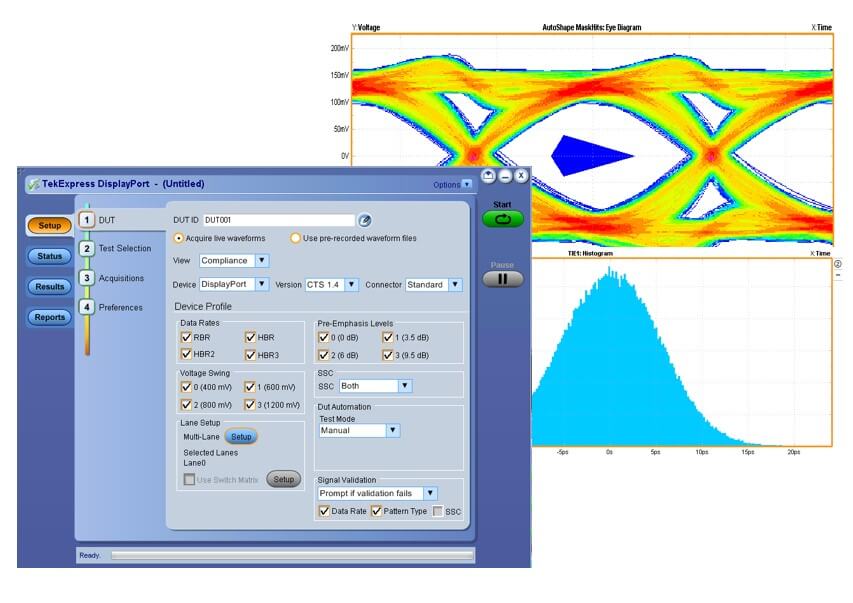

DisplayPort Validation Software

HDMI Transmitter and eARC Compliance Solution

With each successive generation, HDMI source developers face faster data rates and new test challenges. HDMI 2.1 increases data rates up to 48 Gbps over 4 lanes, expanding test cases and test times. Differential, eye diagram and single-ended measurements require high signal integrity with the lowest noise to accurately measure device performance.  Enhanced Audio Return Channel (eARC) is a new feature which simplifies audio connectivity and supports the most advanced audio formats and highest audio quality.

With no connection changes or manual interventions required between tests, the Tektronix test solution provides simple set-up, ease of use, measurement accuracy and reduced test times for all HDMI Tx and eARC (Tx & Rx) measurements.

HDMI Compliance Data Sheet
eARC Compliance Data Sheet

Embedded DisplayPort (eDP)

Embedded DisplayPort (eDP) is a standard designed specifically for mobiles and embedded displays. In contrast to other display protocols, eDP has reduced transmitter voltage swings and lower receiver sensitivity requirements, making it a great option for power-sensitive mobiles applications. These and other low-power features supported by eDP introduce new test and debug challenges for both source and sink devices. The Tektronix eDP solution provides engineers with an easy and fast way to debug eDP Tx devices.

DPO70000SZX ATI performance oscilloscope

DPO70000SX ATI 高性能示波器

带宽为 70 GHz。
采样速率 200 GS/s:低噪声。
高保真度。高性能。

MSO/DPO70000 MSO Mixed Signal oscilloscope

MSO/DPO70000DX 混合信号/数字荧光示波器

带宽为 8 GHz 至 33 GHz。采样速率为 100 GS/s。

Solution Resource Section

DisplayPort 2.0 Pre-Compliance and Debug Solution
Video

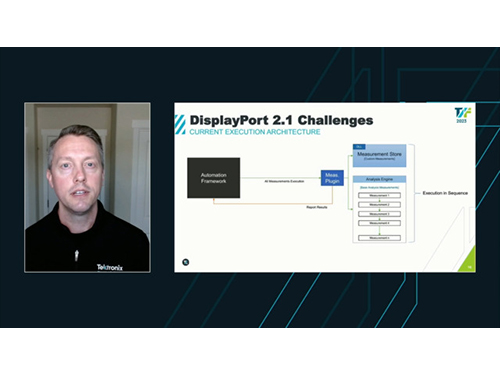

如何应对全新DisplayPort v2.1的测试挑战

DisplayPort v2.1(DP2.1)规范和合规性测试要求的发布引入了独特的挑战,需要一种新的测试方法来减少不断增长的测试时间。本次演讲钟,我们将简要介绍DP2.1得测试挑战及全新测试解决方案。
DisplayPort 2.0 Pre-Compliance and Debug Solution
速查资料

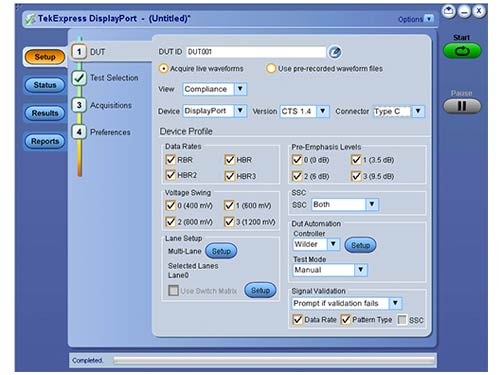

DisplayPort 2.0 Pre-Compliance and Debug Solution

Learn more about the TekExpress DisplayPort 2.0 pre-compliance/debug solution for testing DP2.0 devices in our data sheet. See how it provides the most comprehensive solution for the designing DisplayPort silicon, as well as for physical-layer compliance validation.

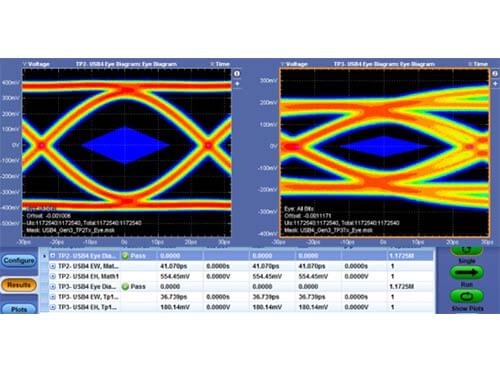

Jitter Analysis Software
速查资料

DPOJET Data Sheet

DPOJET is the premier eye-diagram, jitter, noise and timing analysis package available for real-time oscilloscopes.

Serial Data Debug
速查资料

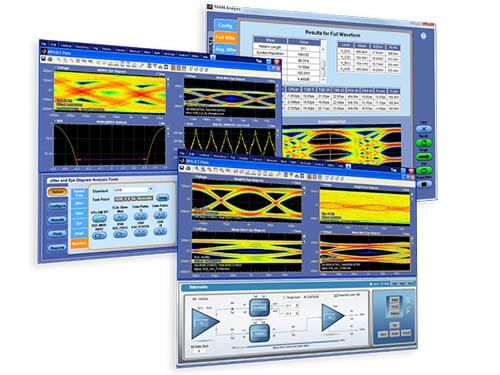

SDLA

Tektronix’s advanced Serial Data Link Analysis solutions enable a seamless transition between characterization, compliance, and debug tasks required to bring your product to market.

HDMI Phyiscal Layer
应用指南

HDMI Phyiscal Layer

See how to perform tests that ensure validation and address the challenges faced while testing complex HDMI signals.

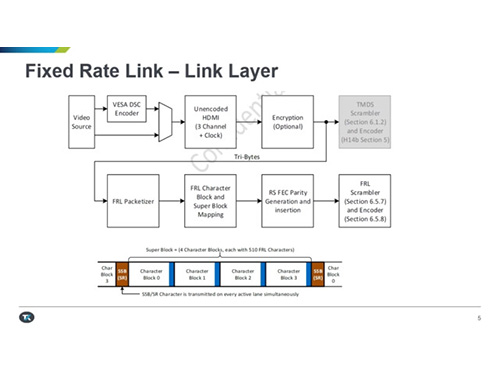

HDMI Webinar
Webinar

Solving HDMI 2.1 Test Challenges

Watch this presentation for a brief introduction to HDMI 2.1 followed by a discussion of fixture rate, link layer, and transmission measurements.
