用于 AWG70000 系列和 SourceXpress 的 RF Generic 插件

RF仪器正变得越来越复杂，准确地创建测试和分析RF系统所需的信号变得越来越难。 为应对这种挑战，RF Generic 提供高级功能以数字方式合成调制的基带、IF 和 RF/微波信号，支持多种调制方案。

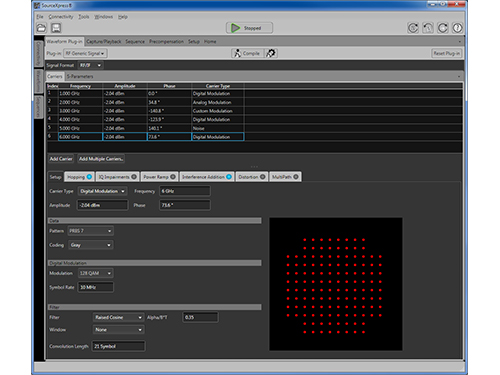

RF Generic 插件简便易用的图形用户界面与 AWG70000 系列 用户界面和 SourceXpress 平台无缝整合。

免费试用

基本价格
HKD 97,800 +
产品技术资料 手册
RF Generic Plug-in for AWG70000 Series and SourceXpress
Feature Benefit
Baseband analog or digital IQ, IF and RF/microwave signal generation on AWG Series Synthesize waveforms directly. Apply impairments such as quadrature error and imbalance or non-linear impairments, or add interferences and multipaths during waveform creation. Replay signals at desired frequency or output.
Versatile carrier signal generation
  • Create single or Multi-carrier signals where each carrier is independently defined. RF Generic also allows for easy addition of modulated analog signals or noise signals.
  • Define and create carrier frequency hopping patterns
  • Define and apply a power ramping profile to the transmitted signal with control over ramp function, duration, position and amplitude.
Support for a wide range of modulation schemes Define baseband I and Q signals using a variety of predefined modulation schemes such as, BPSK, QPSK, PI/4 QPSK, OQPSK, SDPSK, 8-PSK, O-8PSK, up to QAM1024, GMSK, up to 32-FSK, and analog modulations.
Designed with integration in mind RF Generic has support for a Programmatic Interface built-in, allowing for immediate integration into existing workflows.
Offline Mode All of the Tektronix waveform creation Plug-ins are designed to also run on an external PC via the SourceXpress platform, thereby reducing the time taken to synthesize large waveforms and leaving the AWG free for continued testing.
