Vector Network Analyzers

TTR500 Series Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

TTR500-Series-VNA-Datasheet
TTR500 Series Datasheet

Legendary support and quality meets ease-of-use and affordability. The Tektronix TTR500 series 2-port, 2-path VNA is our latest breakthrough - an unmatched combination of measurement performance and convenience. Get the power to make everyday measurements with the accuracy and confidence you expect from Tektronix, all without breaking your budget.

Key performance specifications
  • 100 kHz to 6 GHz frequency range
  • > 122 dB dynamic range
  • -50 to +7 dBm output power
  • < 0.008 dB RMS trace noise
Key features
  • Full 2-port 2-path S-parameter measurement (S11, S21, S12, S22) in a variety of formats.
  • Complete vector network analysis capability with Tektronix VectorVu-PC™ software.
  • Built-in bias tee accessible on both ports to bias active devices.
  • Application programming interface (API) for Microsoft Windows environment and LabView driver.
  • Robust SCPI command interface (compatible with current VNA models) to optimize code migration.
  • Touchstone file support (import/export) for use with Electronic Design Automation (EDA) simulation tools.
  • Offline simulation mode for analysis of S-parameter files when disconnected from the instrument.
  • Industry-leading three year warranty.
Applications
  • Antenna matching and tuning
  • RF component design and validation
  • Education

Benchtop performance at a fraction of the cost

The TTR500 offers industry-leading price and performance. With more than 122 dB dynamic range and less than 0.008 dB RMS trace noise, the TTR500 has performance similar to expensive, conventional benchtop VNAs.

TTR500-Series-VNA-Datasheet-EN_US-9-L

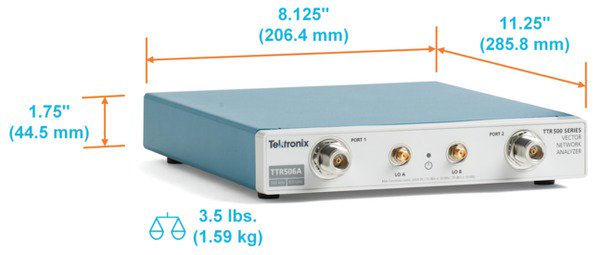

Compact and transportable: Take test where you need it

Gone are the days when you had to roll a cart with a heavy, shared VNA. Weighing under 3.5 lbs (1.59 kg), the TTR500 has a form factor small enough to fit in a briefcase. With a price tag to match, you can put a VNA on every engineering bench to improve efficiency and uptime. In a classroom, students can get hands-on experience with industry standard test instrumentation.

TTR500-Series-VNA-Datasheet-EN_US-10-L

Performance, size, reliability, affordability - choose four

The TTR500A series VNA includes an impressive array of technological and patented advances that allowed us to bend many of the traditional trade-offs between RF performance, size, reliability, and cost.

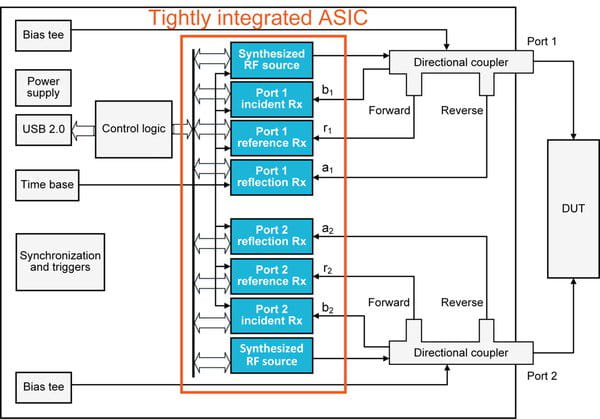

Performance: Inside the VNA is a tightly integrated, single-board design. At its core lies a proprietary ASIC that implements all of the transmitting and receiving functions. Along with decades of experience in RF front-end and shielding design, this integration allowed us to implement advanced DSP and patented error correction techniques that dramatically improve measurement accuracy and dynamic range.

TTR500-Series-VNA-Datasheet-EN_US-11-L

Convenience: Traditional benchtop VNAs have a computer inside that typically becomes obsolete by the time the product hits the market. Our architecture enables significant improvements in size, cost, and reliability by communicating over USB to your PC, while adding additional benefits and convenience. For example, run VectorVu-PC with other applications, share data seamlessly, and save individual application setups on your PC when multiple users share the TTR500.

Size: A compact single-board design without heavy input and display components allows the TTR500 to pack a lot of powerful functionality in a tablet-sized frame. Store it in a drawer, pack it in your briefcase, or carry it on a plane. Take quality test and measurement technology wherever you need it.

Reliability: In addition to reduced part count, integration on a singleboard consumes less energy than traditional benchtop VNAs. The board generates less heat, resulting in lower component stresses and higher reliability. A fanless design provides a quieter operation. We back all of this with a three year warranty.

Affordability: With fewer parts and an integrated design, we created a handheld VNA that delivers traditional benchtop performance and convenience at an unrivaled price. Why settle for less?

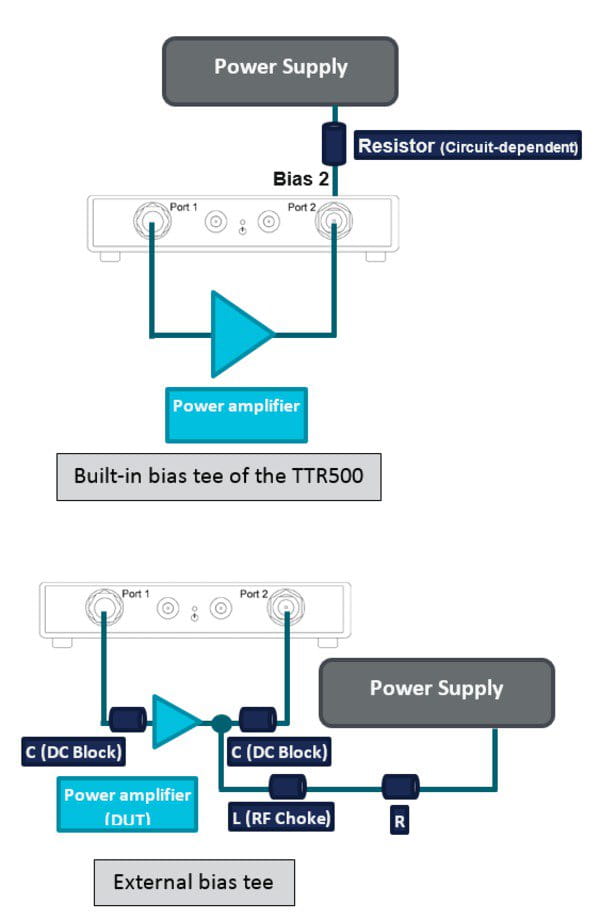

Integrated bias tee for active devices

Use the built-in bias tee (standard in both models) to provide a DC bias to active devices without the expense and complication of external circuitry. Power the bias tee directly through BNC connectors on the rear panel.

TTR500-Series-VNA-Datasheet-EN_US-12-L

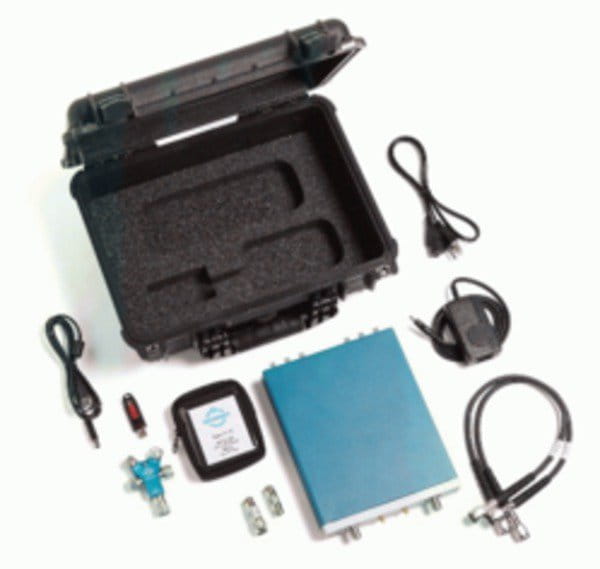

Complete line of affordable accessories

To simplify shopping for the complete VNA solution, Tektronix offers a range of accessories for high-accuracy measurements. Select from calibration kits, phase-stable cables, adapters, attenuators, rackmount, rugged carry case, and a training kit. See Ordering Information for a full list of available accessories.

TTR500-Series-VNA-Datasheet-EN_US-13-L

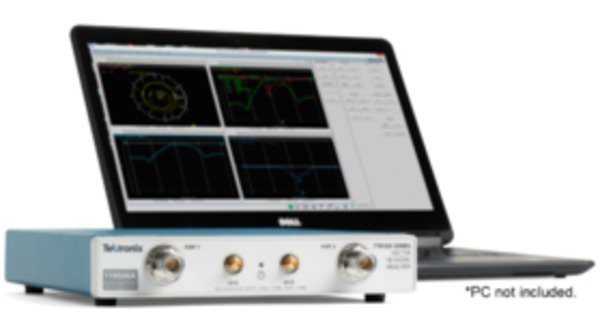

Full 2-port 2-path S-parameter measurements

TTR500-Series-VNA-Datasheet-EN_US-14-L

An independent RF source and three RF receivers for each port of the TTR500 enable you to take high-accuracy magnitude and phase measurements with a 1-port or 2-port device under test (DUT). Use the TTR500 to perform complete S11, S12, S21, and S22measurements of the DUT and display data in a variety of formats (see measurement functionality table).

VectorVu-PC measurement functionality

Sweep typesMeasured parameters
Frequency (linear or log)
Segmented
Power
S11, S12, S21, S22
Absolute receiver level
Data display formatsChannel/trace functions
Logarithmic magnitude
Linear magnitude
Phase
Expanded phase
Group delay
Smith chart
Polar
SWR
Real/Imaginary
Up to 16 channels
Up to 16 traces/channel
Up to 9 markers/trace + reference marker
Memory math
Averaging
Smoothing
Save/load state, calibration, and trace data
CalibrationTrigger
Response (Reflection/Transmission)
Enhanced response
Full 1-port SOL
Full 2-port SOLT
User-defined calibration kit
Electronic calibration
Manual
Internal
External
SCPI command
Sweep modesAll specifications listed in this document have been tested in Normal mode. Fast mode provides faster sweeps at the cost of reduced accuracy or increased uncertainty.Analysis tools
Fast
Normal
Limit line test
Ripple limit test
Bandwidth test

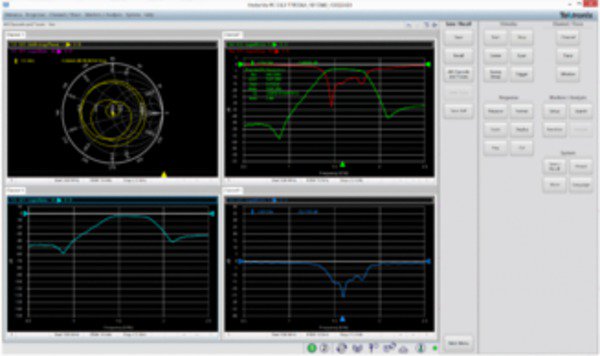

Rapid measurement and analysis with VectorVu-PC

VectorVu-PC (available as free download) features an industry-standard interface that minimizes the learning curve so you have more time to test your design. The software delivers a traditional look and feel to control and calibrate the instrument, while providing touchscreen compatibility for Windows PC, laptop, or tablet. For automated test systems, we include a SCPI programming interface that is compatible with common legacy VNAs. A LabView driver is also available for analysis and control. See the TTR500 programmer manual for more information.

TTR500-Series-VNA-Datasheet-EN_US-15-L

Offline simulation mode for convenient data analysis

VectorVu-PC features a simulation mode to analyze S-parameter data when disconnected from the TTR500. Capture measurements at the test site and analyze the data anywhere. Share it with your team or class when access to the TTR500 is limited.

Compatibility with EDA simulation tools

VectorVu-PC supports the Touchstone (S1P, S2P) file format to import and export S-parameter data in the simulation mode. You can also share data in this format with common EDA simulation tools.

Tektronix: A name you can trust

For over 70 years, Tektronix has delivered industry-leading solutions to the people who drive technological progress. We maintain unrivaled standards of quality, reliability, service, and support with every product, like free access to our Technical Support Centers around the world.

Specifications

All specifications are warranted performance characteristics with guaranteed tolerance limits, unless noted otherwise. All specifications are valid between 18 °C and 28 °C ambient temperature and apply to all models unless noted otherwise.

Nominal refers to the features or characteristics of the design.

Typical indicates that 80% of units will meet the published typical performance with 80% confidence, unless otherwise noted. Typical performance is not warranted.

Typical-Mean indicates the mean performance measured on a sample of units immediately after performing an alignment. Typical-Mean performance is not warranted.

General
Connectivity
USB 2.0
Software
VectorVu-PC™ (requires Windows® 7/8/10, 64-bit)
Corrected system performance with calibration kit
Spinner Type-N mechanical calibration kit BN533861

User Correction ON.

Two 60 cm Tektronix cables 012-1765-00 or 012-1768-00

Frequency

Directivity

(dB)

Source match

(dB)

Load match:

Insertable devices (dB)

Load match with M-M or F-F thru

(dB)

Reflection tracking

(dB)

Transmission tracking:

Insertable devices (dB)

300 kHz to < 1 MHz -38  -34  -37  -35  0.08  0.05
1 MHz to < 10 MHz -37  -34  -37  -35  0.08  0.02
10 MHz to < 100 MHz -37  -34  -37  -35  0.08  0.01
100 MHz to < 1 GHz -36  -34  -37  -35  0.08  0.01
1 GHz to < 3 GHz -36  -34  -37  -35  0.08  0.02
3 GHz to 6 GHz -36  -34  -36  -35  0.09  0.02
18 °C to 28 °C, within 1 °C of calibration temperature and at the same ambient humidity conditions in which calibration was performed.
Spinner 3.5 mm mechanical calibration kit BN533854

User Correction ON.

Two 60 cm Tektronix cables 012-1769-00 or 012-1772-00

Frequency

Directivity

(dB)

Source match

(dB)

Load match:

Insertable devices (dB)

Load match with M-M or F-F thru

(dB)

Reflection tracking

(dB)

Transmission tracking:

Insertable devices (dB)

300 kHz to < 1 MHz -36  -33  -37  -35.5  0.1  0.06
1 MHz to < 10 MHz -35  -33  -37  -35.5  0.1  0.02
10 MHz to < 100 MHz -35  -33  -37  -35.5  0.1  0.01
100 MHz to < 1 GHz -35  -33  -35  -35.5  0.1  0.01
1 GHz to < 4 GHz -35  -33  -35  -35.5  0.1  0.02
4 GHz to 6 GHz -28  -28  -29  -29  0.22  0.03
18 °C to 28 °C, within 1 °C of calibration temperature and at the same ambient humidity conditions in which calibration was performed.
Spinner Type-N calibration kit BN533844

User Correction ON.

Two 60 cm Tektronix cables 012-1765-00

Frequency

Directivity

(dB)

Source match

(dB)

Load match:

Insertable devices (dB)

Load match with M-M or F-F thru

(dB)

Reflection tracking

(dB)

Transmission tracking:

(dB)

300 kHz to < 1 MHz -32  -31  -32  -31  0.15  0.07
1 MHz to < 10 MHz -32  -31  -32  -31  0.15  0.03
10 MHz to < 100 MHz -31  -31  -32  -31  0.15  0.01
100 MHz to < 1 GHz -31  -31  -32  -31  0.15  0.01
1 GHz to < 4 GHz -31  -31  -32  -31  0.15  0.02
4 GHz to 6 GHz -25  -25  -26  -26  0.3  0.04
18 °C to 28 °C, within 1 °C of calibration temperature and at the same ambient humidity conditions in which calibration was performed.
Uncorrected system performance
User correction OFF. Factory correction ON.
Frequency

Directivity

(dB)

Source match

(dB)

Load match

(dB)

Reflection tracking

(dB)

Transmission tracking

(dB)

300 kHz to < 500 kHz -25  -25  -4.5  ±1  ±1
500 kHz to < 2 MHz -25  -25  -4.5  ±1  ±1
2 MHz to < 10 MHz -25  -25  -11  ±1  ±1
10 MHz to < 200 MHz -25  -25  -11  ±1  ±1
200 MHz to <1.5 GHz -25  -25  -10  ±1  ±1
1.5 GHz to < 4.5 GHz -25  -25  -8  ±1  ±1
4.5 GHz to < 5 GHz -25  -25  -7  ±1  ±1
5 GHz to 6 GHz -25  -25  -7  ±1  ±1
Frequency
Range
TTR503A
100 kHz to 3.0 GHz
TTR506A
100 kHz to 6.0 GHz
Resolution
1 Hz
Accuracy
± 7.0 ppm over 1 year calibration interval, 18 °C to 28 °C
Internal reference
Frequency
10 MHz
Initial accuracy
±10 Hz

Aging

± 0.9 ppm/year
External reference input
10 MHz ± 50 Hz
Test port output
Dynamic range
Description 300 kHz to

< 1 MHz

1 MHz to

< 2 MHz

2 MHz to

< 200 MHz

200 MHz to

< 3 GHz

3 GHz to

< 4.5 GHz

(TTR506A only)

4.5 GHz to 6 GHz

(TTR506A only)

Dynamic range Typical 112 dB 117 dB 124 dB 125 dB 123 dB 122 dB
Specification - - - 124 dB 123 dB 122 dB
Noise floor -110 dBm/Hz
(< -115 dBm/Hz typical)
< -120 dBm/Hz
(< -125 dBm/Hz typical)
< -120 dBm/Hz
(< -125 dBm/Hz typical)
< -125 dBm/Hz
(< -130 dBm/Hz typical)
< -125 dBm/Hz
(< -130 dBm/Hz typical)
< -125 dBm/Hz
(< -130 dBm/Hz typical)
Crosstalk with load
Description

300 kHz to

< 1 MHz

1 MHz to

< 10 MHz

10 MHz to

< 200 MHz

200 MHz to

< 1 GHz

1 GHz to

< 2 GHz

2 GHz to 6 GHz

(TTR506A only above 3 GHz)

Uncorrected crosstalk with load -85 dB -110 dB -105 dB -120 dB -115 dB -120 dB
Corrected crosstalk with load 1 - 90 dB -118 dB -115 dB -125 dB -125 dB -120 dB

1After full 2-port SOLT calibration with isolation using a Spinner BN533861 Type-N 50 Ω load.

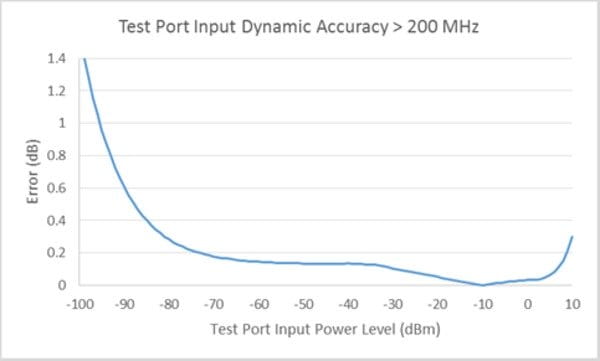

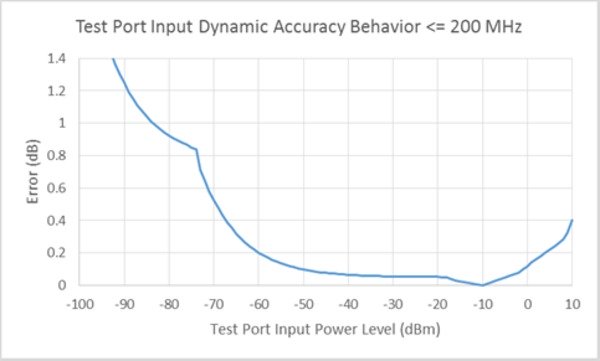

Dynamic accuracy and compression
Dynamic accuracy
Received level range 105 MHz 2 GHz
> +5 to +10 dBm 0.65 dB 0.4 dB
> 0 to +5 dBm 0.35 dB 0.2 dB
> -20 to 0 dBm 0.2 dB 0.15 dB
> -34 to -20 dBm 0.25 dB 0.2 dB
> -50 to -34 dBm 0.35 dB 0.3 dB
> -60 to -50 dBm 0.55 dB 0.45 dB
Dynamic accuracy, typical-mean
Received level range 10 MHz 105 MHz 350 MHz

783.5

MHz

1.083

GHz

2 GHz 3 GHz 4 GHz 5.25 GHz 6 GHz
> +5 to +10 dBm 0.4 dB 0.3 dB 0.3 dB 0.3 dB 0.25 dB 0.2 dB 0.2 dB 0.15 dB 0.15 dB 0.15 dB
> 0 to +5 dBm 0.25 dB 0.25 dB 0.1 dB 0.1 dB 0.1 dB 0.05 dB 0.05 dB 0.05 dB 0.05 dB 0.05 dB
> -30 to 0 dBm 0.15 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB 0.1 dB
-50 to -30 dBm 0.2 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB 0.15 dB

TTR500-Series-VNA-Datasheet-EN_US-16-L_1

TTR500-Series-VNA-Datasheet-EN_US-17-L_1

Test port compression at maximum input level
Compression at +10 dBm input level (typical-mean) is > +5 to +10 dBm
Frequency 10 MHz 105 MHz 350 MHz

783.5

MHz

1.083

MHz

2 GHz 3 GHz 4 GHz 5.25 GHz 6 GHz
Compression 0.4 dB 0.4 dB 0.3 dB 0.25 dB 0.25 dB 0.2 dB 0.2 dB 0.2 dB 0.2 dB 0.2 dB
Trace noise 1, typical
 300 KHz to < 200 MHz 200 MHz to 6 GHz
Magnitude 0.008 dB RMS 0.006 dB RMS
Phase 0.05 degrees RMS 0.04 degrees RMS

1Measured in a 1 KHz IF BW, 10 dBm output power, thru connection

Temperature stability 1, typical
 300 KHz to 3 GHz > 3 GHz to 6 GHz
Magnitude 0.008 dB/°C 0.015 dB/°C
Phase 0.1 degrees/°C 0.2 degrees/°C

1Measured in a 10 Hz IF BW, 0 dBm output power, thru connection

Maximum receiver input level
 DC < 10 MHz ≥ 10 MHz to 6 GHz
Operational ± 24 V 10 dBm 10 dBm
Without damage ± 30 V 15 dBm 20 dBm
Output level calibration
Manufacturer Supported power sensors
Tektronix USB power sensors PSM3000 series
PSM4000 series
PSM5000 series
Keysight USB power sensors U848x series
U2020 series
U2000 series
Rohde and Schwarz USB power sensors NRP-Z power sensors
NRP-xxS/SN power sensors
Connectors

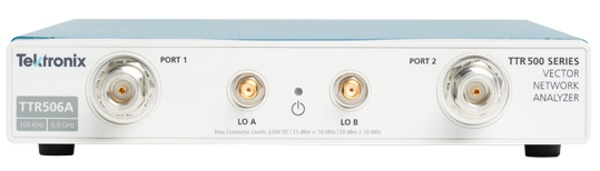

Front panel

TTR500-Series-VNA-Datasheet-EN_US-18-L_1

Name Function Description
Port 1  VNA measurement port 1  Type N female conductor
Port 2  VNA measurement port 2  Type N female conductor
LO A LO A In/Out SMA female conductor
LO B LO B In/Out SMA female conductor
Power Power indicator Red/green LED

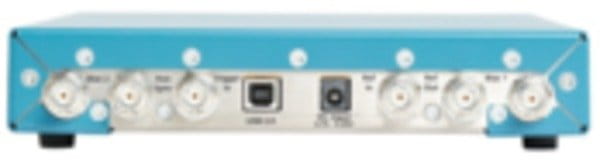

Rear panel

TTR500-Series-VNA-Datasheet-EN_US-19-L_1

Name Function Specifications Connector
Bias 1  Port 1 bias tee connection ± 24 VDC
± 200 mA maximum
BNC Female
Bias 2  Port 2 bias tee connection
Ref Out 10 MHz reference output 10 MHz ± 60 Hz
> 5 dBm
Ref In 10 MHz reference input 10 MHz ± 50 Hz
-5 dBm to + 10 dBm
Trigger Trigger input TTL
± Edge, ± Level
> 250 μS duration (10 mS max.)
Aux Sync Auxiliary trigger TTL
DC input Power supply 4.752 to 5.25 VDC 2.5 x 5.5 x 9.5 mm barrel connector
Center positive
USB 2.0  USB connector for computer connection USB 2.0  USB 2.0 B connector
Power supply
Tektronix part number Input Output
119-8763-01  100 to 240 V AC, 50/60 Hz
IEC60320 C14 receptacle
+ 5 V ±1%
4 A maximum
VectorVu-PC™ software
System requirements
 Processor Memory Drive
Best Intel® Core™ i7 8 GB SSD
Recommended Intel® Core™ i3 8 GB SSD
Minimum Intel® Core™ i3 8 GB HDD
Operating system: Windows® 7 or greater, 64-bit
Physical characteristics

Length: 11.25” (28.58 cm)

Width: 8.125” (20.64 cm)

Depth: 1.75” (4.45 cm)

Weight: 3.5 lbs. (1.59 kg)

Environmental and safety
Temperature

Operating: +5 °C to +50 °C ( 41 °F to 122 °F)

Non-operating: -40 °C to 71 °C ( -40 °F to 159.8 °F)

Humidity (operating)

5% to 80% ±5%RH (relative humidity) in the temperature range of +10 °C to 30 °C (+50 °F to 86 °F)

5% to 75% ±5%RH above +30 °C to 40 °C (+86 °F to 104 °F)

5% to 45% ±5%RH above +40 °C up to 50 °C (+104 °F to +122 °F)

Non-condensing

Altitude

Operating: 5000 m (16,404 ft)

Non-operating: 15,240 m (50,000 ft)

Dynamics
Vibration

Operating: 0.31 GRMS: 5-500 Hz, 3 Axes at 10 min/axis

Non-operating: 2.46 GRMS: 5-500 Hz, 3 Axes at 10 min/axis

Shock

Operating: Half-sine mechanical shocks, 30 g peak amplitude, 11 msec duration, 3 drops in each direction of each axis, 18 total

Non-operating: Half-sine mechanical shocks, 40 g peak amplitude, 11 msec duration, 3 drops in each direction of each axis, 18 total

Handling and transit

Bench handling, operating: MIL-PRF-28800F Class 3

Transit drop, non-operating: MIL-PRF-28800F Class 2

Ordering information

Models
TTR503A
USB Vector Network Analyzer, 100 kHz to 3 GHz
TTR506A
USB Vector Network Analyzer, 100 kHz to 6 GHz
Power plug options
Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord
Service options
Opt. C3
Calibration Service 3 Years
Opt. C5
Calibration Service 5 Years
Opt. D1
Calibration Data Report
Opt. D3
Calibration Data Report 3 Years (with Opt. C3)
Opt. D5
Calibration Data Report 5 Years (with Opt. C5)
Opt. G3
Complete Care 3 Years (includes loaner, scheduled calibration, and more)
Opt. G5
Complete Care 5 Years (includes loaner, scheduled calibration, and more)
Opt. R5
Repair Service 5 Years (including warranty)
Opt. R5DW

Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase

Warranty
Three year warranty
Accessories
Carrying case and rackmount
Description Name
TTR500 Carrying case TTR500TRANSIT
TTR500 Rackmount kit TTR500RACK
Calibration kits
Description Name
7/16 SOLT mechanical calibration kit 0 to 7.5 GHz (Spinner BN 53 38 40) CALMECH-716
Type-N SOLT mechanical calibration kit 0 to 18 GHz (Spinner BN 53 38 61) CALMECH-N
3.5mm SOLT mechanical calibration kit 0 to 32 GHz (Spinner BN 53 38 54) CALMECH-35MM
7/16 SOLT mechanical calibration kit MF Thru Option 0 to 7.5 GHz (Spinner BN 75 63 01 R000) THRU-716-FM
Type-N SOLT mechanical calibration kit MF Thru Option 0 to 18 GHz (Spinner BN 533918R000) THRU-N-FM
3.5mm SOLT mechanical calibration kit MF Thru Option 0 to 32 GHz (Spinner BN 533769R000) THRU-35MM-FM
3.5 mm female SOLT 4-in-one kit CALSOLT35F
3.5 mm male SOLT 4-in-one kit CALSOLT35M
7/16 female SOLT 4-in-one kit CALSOLT716F
7/16 male SOLT 4-in-one kit CALSOLT716M
Type N female SOLT 4-in-one kit CALSOLTNF
Type N female SOLT 4-in-one kit 75 Ω CALSOLTNF-75
Type N male SOLT 4-in-one kit CALSOLTNM
Type N male SOLT 4-in-one kit 75 Ω CALSOLTNM-75
Cables
Description Part number
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(m), 60 cm 012-1768-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(f), 60 cm 012-1765-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(m), 3.28 ft. (1 m) 012-1767-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(f), 3.28 ft. (1 m) 012-1766-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(m), 5 ft. (1.5 m) 012-1746-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-N(f), 5 ft. (1.5 m) 012-1745-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f), 60 cm 012-1747-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 60 cm 012-1752-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 3.28 ft. (1 m) 012-1750-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f), 3.28 ft. (1 m) 012-1748-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(m), 5 ft. (1.5 m) 012-1751-00
Cable, Rugged, Phase-stable, Type-N(m) to 7/16(f), 5 ft. (1.5 m) 012-1749-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f), 60 cm 012-1753-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 60 cm 012-1758-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 3.28 ft. (1 m) 012-1756-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f), 3.28 ft. (1 m) 012-1754-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(m), 5 ft. (1.5 m) 012-1757-00
Cable, Rugged, Phase-stable, Type-N(m) to DIN 9.5(f), 5 ft. (1.5 m) 012-1755-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(m), 60 cm 012-1762-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 60 cm 012-1761-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(m), 3.28 ft. (1 m) 012-1763-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 3.28 ft. (1 m) 012-1759-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(m), 5 ft. (1.5 m) 012-1764-00
Cable, Rugged, Phase-stable, Type-N(m) to TNC(f), 5 ft. (1.5 m) 012-1760-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m) 60 cm 012-1772-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f), 60 cm 012-1769-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m), 3.28 ft. (1 m) 012-1773-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f), 3.28 ft. (1 m) 012-1770-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(m), 5 ft. (1.5 m) 012-1774-00
Cable, Rugged, Phase-stable, Type-N(m) to Type-SMA(f), 5 ft. (1.5 m) 012-1771-00
Adapters
Description Part number
Adapter, Coaxial, 50 Ohm Type-N(f) to Type-N(f) 013-0410-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-N(f) 013-0411-00
Adapter, Coaxial, 50 Ohm, Type-N(m) to Type-N(m) 013-0412-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-N 7/16(m) 013-0402-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-7/1 (f) 013-0404-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type DIN 9.5(m) 013-0403-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-DIN 9.5(f) 013-0405-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-SMA(f) 013-0406-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-SMA(m) 013-0407-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-TNC(f) 013-0408-00
Adapter, Coaxial, 50 Ohm Type-N(m) to Type-TNC(m) 013-0409-00
