What are the primary differences between the DPO/MSO4000B, MDO4000, MDO4000B, and MDO4000C?

问题:

What are the primary differences between the DPO/MSO4000B, MDO4000, MDO4000B, and MDO4000C?

答案:

The 4000 Series Mixed Domain Oscilloscopes (MDO) continues to be the only true RF/Time domain syncronized instrument on the market. The major differences between revisions of the DPO/MSO/MDO4000 Series are described below. Please note the MDO4000C replaced all DPO/MSO/MDO4000B Series instruments, therefor making purchasable options in the 4000 space simplified with upgradable bandwidth and upgradable 6-in-1 features.  Refer to the MDO4000C datasheet for a full list of options and specifications.



MSODPOMDO204KB20to204KC

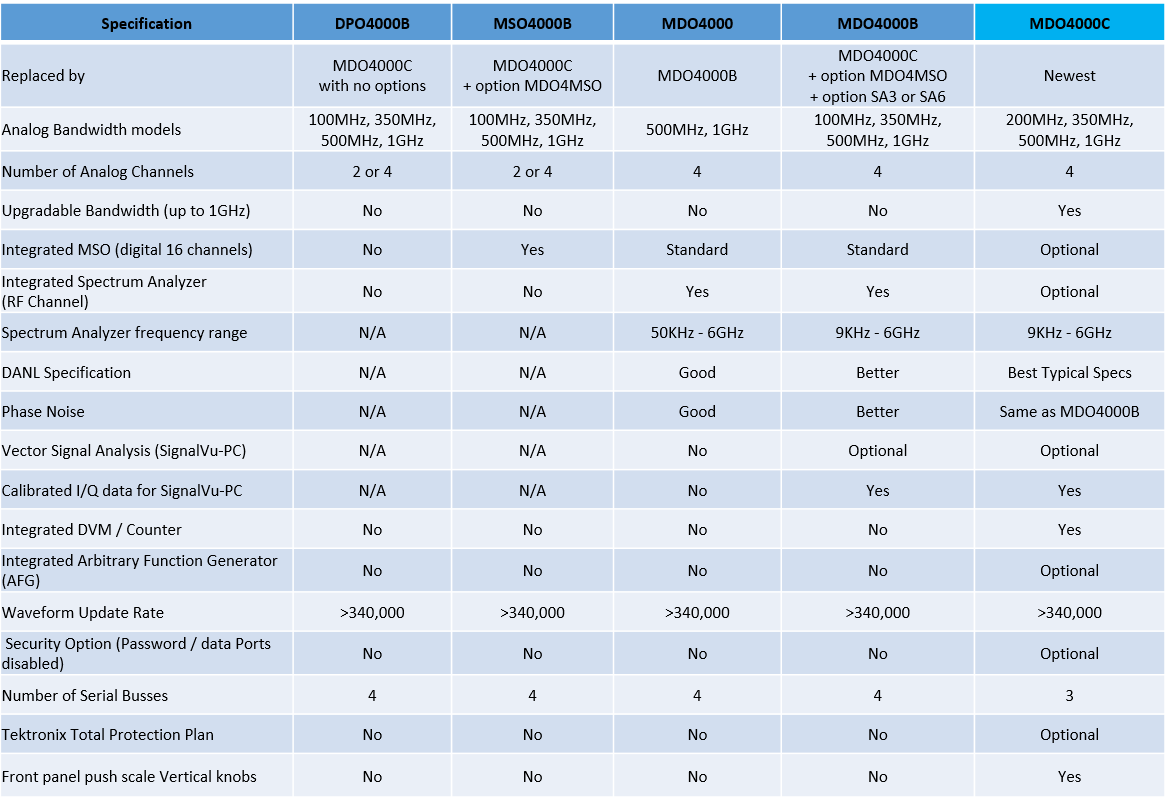

Compare20MDO20series20FAQ3

If you still have questions, please connect with our Technical Support Center and they'll get all your questions answered. Press the "Contact Us" button on the right of the screen to get started.
