2 Series MSO Specification and Performance Verification Manual

MSO22 and MSO24 Specification and Performance Verification Manual

This document contains the specifications and performance verification procedures for the 2 Series MSO.


此手册适用于:

MSO22, MSO24

  • 手册类型: 性能验证
  • 部件号: 077171102
  • 发布日期:
  • Revision: Rev B

By downloading, you agree to the terms and conditions of the Manuals Download Agreement.

Manuals Download Agreement

ATTENTION: please read the following terms and conditions carefully before downloading any documents from this website. By downloading manuals from Tektronix' website, you agree to the following terms and conditions:

Manuals for Products That Are Currently Supported:

Tektronix hereby grants permission and license to owners of Tektronix instruments to download and reproduce the manuals on this website for their own internal or personal use. Manuals for currently supported products may not be reproduced for distribution to others unless specifically authorized in writing by Tektronix, Inc.

A Tektronix manual may have been revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.

Manuals for Products That Are No Longer Supported:

Tektronix cannot provide manuals for measurement products that are no longer eligible for long term support. Tektronix hereby grants permission and license for others to reproduce and distribute copies of any Tektronix measurement product manual, including user manuals, operator's manuals, service manuals, and the like, that (a) have a Tektronix Part Number and (b) are for a measurement product that is no longer supported by Tektronix.

A Tektronix manual may be revised to reflect changes made to the product during its manufacturing life. Thus, different versions of a manual may exist for any given product. Care should be taken to ensure that one obtains the proper manual version for a specific product serial number.

This permission and license does not apply to any manual or other publication that is still available from Tektronix, or to any manual or other publication for a video production product or a color printer product.

Disclaimer:

Tektronix does not warrant the accuracy or completeness of the information, text, graphics, schematics, parts lists, or other material contained within any measurement product manual or other publication that is not supplied by Tektronix or that is produced or distributed in accordance with the permission and license set forth above.

Tektronix may make changes to the content of this website or to its products at any time without notice.

Limitation of Liability:

TEKTRONIX SHALL NOT BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR FOR INFRINGEMENT OF INTELLECTUAL PROPERTY) ARISING OUT OF THE USE OF ANY MEASUREMENT PRODUCT MANUAL OR OTHER PUBLICATION PRODUCED OR DISTRIBUTED IN ACCORDANCE WITH THE PERMISSION AND LICENSE SET FORTH ABOVE.



Read Online

Important safety information

This manual contains information and warnings that must be followed by the user for safe operation and to keep the product in a safe condition.

To safely perform service on this product, see the Service safety summary that follows the General safety summary.

General safety summary

Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Carefully read all instructions. Retain these instructions for future reference.

This product shall be used in accordance with local and national codes.

For correct and safe operation of the product, it is essential that you follow generally accepted safety procedures in addition to the safety precautions specified in this manual.

The product is designed to be used by trained personnel only.

Only qualified personnel who are aware of the hazards involved should remove the cover for repair, maintenance, or adjustment.

Before use, always check the product with a known source to be sure it is operating correctly.

This product is not intended for detection of hazardous voltages.

Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.

While using this product, you may need to access other parts of a larger system. Read the safety sections of the other component manuals for warnings and cautions related to operating the system.

When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system.

To avoid fire or personal injury

Use proper power cord

Use only the power cord specified for this product and certified for the country of use. Do not use the provided power cord for other products.

Ground the product

This product is grounded through the grounding conductor of the power cord. To avoid electric shock, the grounding conductor must be connected to earth ground. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do not disable the power cord grounding connection.

Power disconnect

The power cord disconnects the product from the power source. See instructions for the locations. Do not position the equipment so that it is difficult to operate the power cord; it must remain accessible to the user at all times to allow for quick disconnection if needed.

Use proper AC adapter

Use only the AC adapter specified for this product.

Connect and disconnect properly

Do not connect or disconnect probes or test leads while they are connected to a voltage source.

Use only insulated voltage probes, test leads, and adapters supplied with the product, or indicated by Tektronix to be suitable for the product.

Connect the probe output to the measurement instrument before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement instrument.

De-energize the circuit under test before connecting or disconnecting the current probe.

Observe all terminal ratings

To avoid fire or shock hazard, observe all rating and markings on the product. Consult the product manual for further ratings information before making connections to the product.

Do not exceed the Measurement Category (CAT) rating and voltage or current rating of the lowest rated individual component of a product, probe, or accessory. Use caution when using 1:1 test leads because the probe tip voltage is directly transmitted to the product.

Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.

Do not float the common terminal above the rated voltage for that terminal.

The measurement terminals on this product are not rated for connection to Category III or IV circuits.

Do not connect a current probe to any wire that carries voltages above the current probe voltage rating.

Do not operate without covers

Do not operate this product with covers or panels removed, or with the case open. Hazardous voltage exposure is possible.

Avoid exposed circuitry

Do not touch exposed connections and components when power is present.

Do not operate with suspected failures

If you suspect that there is damage to this product, have it inspected by qualified service personnel.

Disable the product if it is damaged. Do not use the product if it is damaged or operates incorrectly. If in doubt about safety of the product, turn it off and disconnect the power cord. Clearly mark the product to prevent its further operation.

Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows.

Examine the exterior of the product before you use it. Look for cracks or missing pieces.

Use only specified replacement parts.

Replace batteries properly

Replace batteries only with the specified type and rating.

Recharge batteries for the recommended charge cycle only.

Wear eye protection

Wear eye protection if exposure to high-intensity rays or laser radiation exists.

Do not operate in wet/damp conditions

Be aware that condensation may occur if a unit is moved from a cold to a warm environment.

Do not operate in an explosive atmosphere

Keep product surfaces clean and dry

Remove the input signals before you clean the product.

Provide proper ventilation

Refer to the installation instructions in the manual for details on installing the product so it has proper ventilation.

Slots and openings are provided for ventilation and should never be covered or otherwise obstructed. Do not push objects into any of the openings.

Provide a safe working environment

Always place the product in a locations convenient for viewing the display and indicators.

Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury.

Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries.

Use only the Tektronix rackmount hardware specified for this product.

Probes and test leads

Before connecting probes or test leads, connect the power cord from the power connector to a properly grounded power outlet.

Keep fingers behind the protective barrier, protective finger guard, or tactile indicator on the probes. Remove all probes, test leads and accessories that are not in use.

Use only correct Measurement Category (CAT), voltage, temperature, altitude, and amperage rated probes, test leads, and adapters for any measurement.

Beware of high voltages

Understand the voltage ratings for the probe you are using and do not exceed those ratings. Two ratings are important to know and understand:

  • The maximum measurement voltage from the probe tip to the probe reference lead.
  • The maximum floating voltage from the probe reference lead to earth ground.

These two voltage ratings depend on the probe and your application. Refer to the Specifications section of the manual for more information.

WARNING:To prevent electrical shock, do not exceed the maximum measurement or maximum floating voltage for the oscilloscope input BNC connector, probe tip, or probe reference lead.

Connect and disconnect properly.

Connect the probe output to the measurement product before connecting the probe to the circuit under test. Connect the probe reference lead to the circuit under test before connecting the probe input. Disconnect the probe input and the probe reference lead from the circuit under test before disconnecting the probe from the measurement product.

De-energize the circuit under test before connecting or disconnecting the current probe.

Connect the probe reference lead to earth ground only.

Do not connect a current probe to any wire that carries voltages or frequencies above the current probe voltage rating.

Inspect the probe and accessories

Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the probe body, accessories, or cable jacket). Do not use if damaged.

Ground-referenced oscilloscope use

Do not float the reference lead of this probe when using with ground-referenced oscilloscopes. The reference lead must be connected to earth potential (0 V).

Floating measurement use

Do not float the reference lead of this probe above the rated float voltage.

Service safety summary

The Service safety summary section contains additional information required to safely perform service on the product. Only qualified personnel should perform service procedures. Read this Service safety summary and the General safety summary before performing any service procedures.

To avoid electric shock

Do not touch exposed connections.

Do not service alone

Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present.

Disconnect power

To avoid electric shock, switch off the product power and disconnect the power cord from the mains power before removing any covers or panels, or opening the case for servicing.

Use care when servicing with power on

Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components.

Verify safety after repair

Always recheck ground continuity and mains dielectric strength after performing a repair.

Terms in this manual

These terms may appear in this manual:

WARNING:Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION:Caution statements identify conditions or practices that could result in damage to this product or other property.

Terms on the product

These terms may appear on the product:

  • DANGER indicates an injury hazard immediately accessible as you read the marking.
  • WARNING indicates an injury hazard not immediately accessible as you read the marking.
  • CAUTION indicates a hazard to property including the product.

Symbols on the product



When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the user to ratings in the manual.)

The following symbols(s) may appear on the product.



CAUTION: Refer to Manual


Protective Ground (Earth) Terminal


Earth Terminal


Chassis Ground


WARNING: High Voltage


Breakable. Do not drop.


Standby


Functional Earth Terminal


Use only on an insulated wire.


Connection and disconnection to hazardous bare wire permitted.


Do not connect to or remove from an uninsulated conductor that is HAZARDOUS LIVE.

Specifications

This chapter contains specifications for the instrument. All specifications are typical unless noted as guaranteed. Typical specifications are provided for your convenience but are not guaranteed. Specifications that are marked with the ✔ symbol are guaranteed and checked in Performance Verification.

To meet specifications, these conditions must first be met:
  • The instrument must have been calibrated in an ambient temperature between 18 °C and 28 °C (64 °F and 82 °F).
  • The instrument must be operating within the environmental limits. (See Environmental characteristics).
  • The instrument must be powered from a source that meets the specifications. (See Power supply system).
  • The instrument must have been operating continuously for at least 20 minutes within the specified operating temperature range.
  • You must perform the Signal path compensation procedure after the warmup period. See the Signal path compensation procedure for how to perform signal path compensation. If the ambient temperature changes more than 5 °C (9 °F), repeat the procedure.

Analog signal acquisition system

Analog input channels
MSO22: 2 channel
MSO24: 4 channel
Input coupling
AC, DC
Input termination selection
1 MΩ only
Input termination, 1 MΩ DC-coupled
1 MΩ ± 1%
Input capacitance, 1 MΩ DC-coupled
14 pF ± 3 pF
Digitized bits
8 bits
Displayed vertically with 25 digitization levels (DL) per division, 10.24 divisions dynamic range. A converter can resolve the smallest voltage level change by using an 8-bit A–D converter. This value is also known as the Least Significant Bit (LSB).
Sensitivity range (coarse), 1 MΩ
1 mV/Div to 10 V/Div in a 1-2-5 sequence
Sensitivity range (fine)
Continuous adjustment from 1 mV/DIV to 10 V/DIV, 1 MΩ 1x
Sensitivity resolution (fine)
≤10% of current setting
Maximum input voltage, 1 MΩ DC-coupled
Maximum input voltage at the BNC, 300 Vrms. Installation category II
Derate at 20 dB/decade between 3 MHz to 30 MHz
Derate at 15.5 dB between 30 MHz to 300 MHz; above 300 MHz, 5 Vrms
Maximum peak input voltage at the BNC: ± 424 V
DC gain accuracy
Guaranteed for 2 mV/div and above, typical otherwise. Specification valid after 30 minute warm-up and Signal Path Compensation (SPC) at ambient.
<2 mV/div: ±3.0%, typical, derated at 0.100%/°C above 30 °C
≥2 mV/div: ±2.0%, derated at 0.100%/°C above 30 °C
Offset ranges
1 mV/div to 63.8 mV/div : ±1 V
63.9 mV/div to 999.5 mV/div : ±10 V
1 V/div to 10 V/div : ±100 V
Position range
±5 divisions
Offset accuracy
All terms must be converted to volts by multiplying by the current volts/div setting.
>2 mV/div: ± (0.005 X |offset – position | + 0.2 div)
≤2 mV/div: ± (0.005 X |offset – position | + 0.3 div)
Waveforms for average acquisition mode
2 to 10.24 k waveforms; default of 16 waveforms
DC voltage measurement accuracy, average acquisition mode
The basic accuracy specification applies directly to any sample and to the following measurements: high, low, maximum, minimum, mean, cycle mean, RMS, and cycle RMS. The delta volts accuracy specification applies to subtractive calculations involving two of these measurements. The delta volts (difference voltage) accuracy specification applies directly to the following measurements; positive overshoot, negative overshoot, Pk-Pk, and amplitude.
Offset, position, and the constant offset term must be converted to volts by multiplying by the appropriate volts/div term.
The limits are as follows:
Measurement typeDC accuracy (in volts)
Average of > 16 waveforms± ((DC Gain accuracy) X |reading -(offset - position)| + Offset accuracy + 0.1 div + 1 mV)
Delta volts between any two averages of ≥16 waveforms acquired with the same oscilloscope setup and ambient conditions± (DC Gain accuracy X |reading| + 0.08 div + 1.4 mV)
Bandwidth selections
20 MHz, 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz (when equal to or less than instrument's rated bandwidth)
✔ Analog bandwidth
Below 5 mV/div, 500 MHz bandwidth is specified as typical.
The limits stated below are for an ambient temperature of ≤30 °C. For each degree above 30 °C, reduce the upper bandwidth frequency by 1%.
Instrument bandwidthVolts/div settingBandwidth
70 MHz1 mV/div – 10 V/divDC – 70 MHz
100 MHz1 mV/div – 10 V/divDC – 100 MHz
200 MHz1 mV/div – 10 V/divDC – 200 MHz
350 MHz1 mV/div – 10 V/divDC – 350 MHz
500 MHz<5 mV/divDC – 500 MHz
500 MHz≥5 mV/div - 10 V/divDC – 500 MHz
Lower frequency limit, AC-coupled
<10 Hz
The AC-coupled lower frequency limits are reduced by a factor of 10 (<1 Hz) when 10X passive probes are used.
Upper frequency limit, 20 MHz bandwidth-limited
20 MHz, ± 25%, DC-coupled
Calculated rise time
Measurements made using the oscilloscope's automated measurement feature may read slower rise time values than those determined by the above equation. This is because the automated measurements do not take interpolation into account. Measuring using cursors on the interpolated waveform gives a more accurate result.
The formula is calculated by measuring the –3 dB bandwidth of the oscilloscope. The formula accounts for the rise time contribution of the oscilloscope independent of the rise time of the signal source.
Calculated rise time (10% to 90%, in ps) equals 0.35/BW except from 1000 to 2100 mentioned in below table.
BandwidthRise time (ps)
500 MHz1000
350 MHz1400
200 MHz2100
100 MHz3500
70 MHz5000
Peak detect or envelope mode pulse response
Peak detect response indicates how effective the oscilloscope is at picking up a single narrow pulse and determining its amplitude.
The minimum single pulse widths for peak detect or envelope mode is at least:
Bandwidth (MHz)Minimum pulse width
500> 2 ns
350> 3 ns
200> 5 ns
100> 10 ns
70> 14 ns
50> 20 ns
Deskew range
-95 ns to +95 ns
Crosstalk (channel isolation)
≤ 100 MHz> 100 MHz
1 MΩ100:130:1
Sample rate range
Maximum 1.25 GS/s - All channels
Maximum 2.5 GS/s - Half channel
Record length range
10 M Standard
Seconds/Division range
1 ns/div to 1000 s/div when in half channel mode
2 ns/div to 1000 s/div when in full channel mode
Maximum triggered acquisition rate
>5k wfm/s
Timebase accuracy
± 25 x 10-6 over any over any ≥1 ms interval
Guaranteed, the specification valid after 30 minute warm-up and Signal Path Compensation (SPC) at ambient.
Timebase delay time range
-10 divisions to 5000 s
Delta time measurement accuracy (DTA)
The formula to calculate delta-time measurement accuracy (DTA) for a given instrument setting and input signal is as follows (assumes insignificant signal content above the Nyquist frequency).

SR1 = Slew rate (1st Edge) around 1st point in measurement

SR2 = Slew rate (2nd Edge) around 2nd point in measurement

N = Input-referred noise (Vrms)

TBA = Timebase accuracy

tp = Delta-time measurement duration (sec)

RD = (Record length)/(Sample rate)

(assume edge shape that results from Gaussian filter response)

(Assumes insignificant error due to aliasing)

The term under the square root sign is stability and is due to Time Interval Error (TIE). The errors due to this term occur throughout a single-shot measurement. The second term is due to both the absolute center-frequency accuracy and the center-frequency stability of the time base and varies between multiple single-shot measurements over the observation interval (the amount of time from the first single-shot measurement to the final single-shot measurement).

Triggering system

Aux In (external) trigger channels
One channel
Aux In (external) trigger input impedance
1 MΩ ± 1% in parallel with 14 pF ± 3 pF
Aux In (external) trigger maximum input voltage
300 Vrms, Installation category II
Derate at 20 dB/decade above 3 MHz to 30 Vrms at 30 MHz; 10 dB/decade above 30 MHz.
Based upon a sinusoidal or DC input signal. The excursion above 300 V should be less than 100 ms in duration, and the duty factor is limited to < 44%. The RMS signal level must be limited to 300 V. If these values are exceeded, damage to the instrument may result.
Edge-type trigger sensitivity, DC-coupled
The greater of 2 mV or 0.4 div from DC to 20 MHz
The greater of 3 mV or 0.5 div from >20 MHz to 70 MHz
The greater of 4 mV or 0.5 div from >70 MHz to 100 MHz
The greater of 4 mV or 0.6 div from >100 MHz to 200 MHz
The greater of 5 mV or 0.7 div from >200 MHz to 350 MHz
The greater of 6 mV or 0.8 div from >350 MHz to instrument bandwidth
Edge trigger sensitivity, AC-coupled
The minimum sensitivities are as follows:
Trigger couplingTypical sensitivity
AC1.0 times the DC coupled limits for frequencies above 10 Hz. Attenuates signals below 10 Hz
NOISE REJ2.5 times the DC coupled limits
HF REJ1.0 times the DC coupled limits from DC to 50 kHz. Attenuates signals above 50 kHz
LF REJ1.0 times the DC Coupled limits for frequencies above 50 kHz. Attenuates signals below 50 kHz
Trigger modes
Auto, normal, and single
Trigger coupling
DC, HF Reject (attenuates > 50 kHz), LF Reject (attenuates < 50 kHz), noise reject (reduces sensitivity)
Trigger level ranges
Any input channel
±5 divisions from center of screen
Aux In
±8 V
Trigger types
Edge
Positive, negative, or either slope on any channel.
Pulse Width
Trigger on width of positive or negative pulses. Event can be time- or logic-qualified.
Timeout
Trigger on an event which remains high, low, or either, for a specified time period. Event can be logic-qualified.
Runt
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. Event can be time- or logic-qualified.
Logic
Trigger when logic pattern goes true, goes false, or occurs coincident with a clock edge. Pattern (AND, OR, NAND, NOR) specified for all input channels defined as high, low, or don't care. Logic pattern going true can be time-qualified.
Setup/Hold
Trigger on violations of both setup time and hold time between clock and data present on any input channels.
Rise/Fall
Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either. Event can be logic-qualified.
Parallel (with MSO option)
Trigger on a parallel bus data value. Parallel bus can be from 1 to 20 bits (from the digital and analog channels) in size. Supports binary and hex radices.
I2C (option)
Trigger on start, repeated start, stop, missing ack, address (7 or 10 bit), data, or address and data on I2C buses up to 10 Mb/s.
SPI (option)
Trigger on slave select, idle time, or data (1-16 words) on SPI buses up to 20 Mb/s.
RS-232/422/485/UART (option)
Trigger on start bit, end of packet, data, and parity error up to 15 Mb/s.
CAN (option)
Trigger on start of frame, type of frame (data, remote, error, or overload), identifier, data, identifier and data, end of frame, missing ack, and bit stuff error on CAN buses up to 1 Mb/s and CAN-FD buses up to 16 Mb/s.
LIN (option)
Trigger on sync, identifier, data, identifier and data, wakeup frame, sleep frame, and error on lin buses up to 1 Mb/s.
SENT (option)
Trigger on start of packet, fast channel status and data, slow channel message ID and data, and CRC errors.
Lowest frequency for successful operation of "Set level to 50%" function
50 Hz
Logic trigger minimum logic or rearm time
For logic, time between channels refers to the length of time a logic state derived from more than one channel must exist to be recognized. For events, the time is the minimum time between a main and delayed event that will be recognized if more than one channel is used.
For all vertical settings, the minimums are:
Triggering typePulse widthRearm timeTime between channels
LogicNot applicble2 ns2 ns
Time qualified logic4 ns2 ns2 ns
Setup/hold violation trigger, setup and hold time ranges
Input coupling on the clock and data channels must be the same.
For setup time, positive numbers mean a data transition before the clock.
For hold time, positive numbers mean a data transition after the clock edge.
Setup + hold time is the algebraic sum of the setup time and the hold time programmed by the user.
The limits are as follows:
FeatureMinimumMaximum
Setup time0 ns20 s
Hold time0 ns20 s
Setup + hold time400 ps21 s
Minimum pulse width, rearm time, and transition time
For trigger class width and runt, pulse width refers to the width of the pulse being measured. Rearm time refers to the time between pulses.
For trigger class slew rate, pulse width refers to the delta time being measured. Rearm time refers to the time it takes the signal to cross the two trigger thresholds again.
For Slew rate triggering, the minimum transition time defined as the time signal spends between the two trigger threshold settings.
Pulse classMinimum pulse widthMinimum rearm time
Runt4 ns2 s
Width4 ns2 ns + 5% of width upper limit setting
Slew rate4 ns8.5 ns + 5% of delta time setting
Rise/fall time trigger, delta time range
800 ps to 20 s
Pulse width, or time-qualified runt trigger time range
800 ps to 20 s
Trigger holdoff range
0 s minimum to 10 s maximum.
Hold off may not function correctly in sequence trigger mode.

Digital channel acquisition

Digital input channels
16 Digital Inputs [D0:D15]
Input resistance, typical
101 KΩ to ground
Input capacitance, typical
8 pF
Specified at the input to the P6316 probe with all 8 ground inputs connected to the user's ground. Use of leadsets, grabber clips, ground extenders, or other connection accessories may compromise this specification.
Minimum input signal swing, typical
500mV peak-to-peak
Specified at the input to the P6316 probe with all 8 ground inputs connected to the user's ground. Use of leadsets, grabber clips, ground extenders, or other connection accessories may compromise this specification.
Maximum input signal swing, typical
+30 V, -20 V
DC input voltage range
+30 V, -20 V
Maximum input dynamic range
50 Vpp (threshold setting dependent)
Channel to channel skew (typical)
500 ps
Digital Channel to Digital Channel only
This is the propagation path skew, and ignores skew contributions due to bandpass distortion, threshold inaccuracies (see Threshold Accuracy), and sample binning (see Digital Channel Timing Resolution).
Thresholds
Thresholds per set of 8 channels
Threshold Selections
TTL, CMOS, ECL, PECL, User-Defined
Threshold voltage range
–15 V to +25 V
Digital channel timing resolution
Minimum: 2 ns
Threshold accuracy
± [180 mV + 2% of threshold setting after calibration]. Requires valid SPC.
Minimum detectable pulse
5.0 ns
Specified at the input to the P6316 probe with all eight ground inputs connected to the user's ground. Use of lead sets, grabber clips, ground extenders, or other connection accessories may compromise this specification.

Digital pattern generator

Number of channels
4
Pattern memory length
4 K bits
Output amplitude
2.5 V, 3.3 V, 5 V (Continuous Mode)
5 V ( Burst Mode)
Typical voltages are 10% below the nominal settings to allow for voltage differentials and tolerances
Bit Rate
1 bps to 25 Mbps
Pattern type
Square, counter, user defined, and manual

Arbitrary function generator

Operating modes
Continuous, burst
Function types
Arbitrary, sine, square, pulse, ramp, DC level, Gaussian, Lorentz, exponential rise/fall, sin(x)/x, random noise, Haversine, and Cardiac.
Amplitude and frequency range
Values are peak-to-peak voltages.
WaveformAmplitude range 50 ΩAmplitude range 1 MΩFrequency range
Arbitrary10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 25 MHz
Sine10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 50 MHz
Square10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 20 MHz
Pulse10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 20 MHz
Ramp10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 500 KHz
DC Level20 mV to 5V
Gaussian10 mV to 1.25 V 20 mV to 2.5 V 0.1 Hz to 5 MHz
Lorentz10 mV to 1.2 V 20 mV to 2.4 V 0.1 Hz to 5 MHz
Exponential rise10 mV to 1.25 V 20 mV to 2.5 V 0.1 Hz to 5 MHz
Exponential decay10 mV to 1.25 V 20 mV to 2.5 V 0.1 Hz to 5 MHz
Sin(X)/X10 mV to 1.5 V 20 mV to 3.0 V 0.1 Hz to 2 MHz
Random noise10 mV to 2.5 V 20 mV to 5 V
Haversine10 mV to 1.25 V 20 mV to 2.5 V 0.1 Hz to 5 MHz
Cardiac10 mV to 2.5 V 20 mV to 5 V 0.1 Hz to 500 KHz
Maximum sample rate
250 MS/s
Arbitrary function length
128 K sample
Sine waveform
Frequency setting resolution
0.1 Hz
Amplitude flatness
±0.5 dB at 1 kHz
±1.5 dB at 1 kHz for <20 mVpp amplitudes with 50 Ω termination
Total harmonic distortion
1% into 50 Ω for amplitude > 100 mV
Spurious-free dynamic range
40 dB (Vpp ≥ 0.1 V) 50 Ω load
Square and pulse waveform
Frequency setting resolution
0.1 Hz
Duty cycle range
10% - 90% or 10 ns minimum pulse, whichever is larger
Minimum pulse time applies to both on and off time, so maximum duty cycle will be reduced at higher frequencies to maintain 10 ns of off time.
Minimum pulse width, typical
10 ns. This is the minimum time for either on or off duration.
Rise/fall time
5.5 ns, 10% - 90% with 50 Ω termination
Pulse width resolution
100 ps
Overshoot
<5% for signal steps > 100 mVpp and frequency settings ≥100 kHz with 50 Ω termination
<7% for signal steps > 100 mVpp and frequency settings < 100 kHz with 50 Ω termination
This applies to the overshoot of the positive-going transition (+overshoot) and the negative-going (-overshoot) transition.
Asymmetry
± 1% ± 5 ns, at 50% duty cycle with 50 Ω termination
Jitter
<500 ps TIErms
<60 ps TIErms, ≥100 mVpp amplitude, 40% - 60% duty cycle (Square and pulse waveforms, 5 GHz measurement bandwidth)
Ramp and triangle waveform
Frequency setting resolution
0.1 Hz
Variable symmetry
0% - 100%
Symmetry resolution
0.1%
DC level range
±2.5 V into Hi-Z
±1.25 V into 50 Ω
Random noise amplitude range
20 mVpp to 5 Vpp in to Hi-Z
10 mVpp to 2.5 Vpp into 50 Ω
For both isolated noise signal and additive noise signal. Additive noise is 0% to 100% of the peak-to-peak amplitude specified. The additive noise range is restricted in favor of amplitude in order not to exceed the maximum output limits. There is currently a linear reduction from 100% to 0% above 50% amplitude.
Sine and ramp frequency accuracy
130 ppm (frequency ≤10 kHz); 50 ppm (frequency > 10 kHz)
Square and pulse frequency accuracy
130 ppm (frequency ≤10 kHz); 50 ppm (frequency > 10 kHz)
Signal amplitude resolution
500 μV (50 Ω)
1 mV (Hi-Z)
Signal amplitude accuracy
±[ (1.5% of peak-to-peak amplitude setting) + (1.5% of absolute DC offset setting) + 1 mV ] (frequency = 1 kHz)
DC offset Range
±2.5 V into Hi-Z
±1.25 V into 50 Ω
DC offset Resolution
500 μV (50 Ω)
1 mV (Hi-Z)
DC offset accuracy
± [ (1.5% of absolute offset voltage setting) + 1 mV ]
Add 3 mV of uncertainty per 10 °C change from 25 °C ambient
Guaranteed, specification valid after 30 minute warm-up and Signal Path Compensation (SPC) at ambient.

Processor system

Host processor
Application processing unit: Dual-core Arm Cortex-A53 MPCore with CoreSight; NEON and single/double precision floating point; 32 KB/32 KB L1 cache, 1 MB L2 cache
Real-time processing unit Dual-core Arm Cortex-R5F with CoreSight; single/double precision floating point; 32 KB/32 KB L1 cache, and TCM

Display system

Display type
Display area – 217 mm x 135 mm, TFT active matrix, and Liquid Crystal Display (LCD) with capacitive touch.
Display resolution
1,280 horizontal × 800 vertical pixels
Display modes
Overlay and stacked
Luminance
260 cd/m²
Display luminance is specified for a new display set at full white brightness.
Color support
16,777,216 (8-bit RGB) colors
Zoom
Horizontal and vertical zooming is supported in all waveform and plot views
Interpolation
Sin(x)/x and linear
Waveform styles
Vectors, dots, variable persistence, and infinite persistence
Graticules
Movable and fixed graticules, selectable between grid, time, full, and none
Color palettes
Normal and inverted for screen captures
Individual waveform colors are user-selectable
Format
YT, XY
Language support

English, Japanese, Simplified Chinese, Traditional Chinese, French, German, Italian, Spanish, Portuguese, Russian, Korean

Interfaces, input, and output ports

USB interface
Two USB 2.0 high speed host ports on the side of the instrument
One USB 2.0 high speed device port on the side of the instrument (USBTMC support)
Ethernet Interface
One 8-pin RJ-45 connector that supports 10/100 Mb/s and 1000 Mbps Ethernet (in full duplex mode only)
Probe compensator, output voltage and frequency
CharacteristicValue
Output voltageNormal: 0-2.5 V amplitude
Source impedanceNormal: 1 kΩ
Frequency1 kHz
Auxiliary output (Aux out)
Aux out connector and functional modes
A single BNC connector
Acquisition (main) trigger out and AFG out
Aux out output voltage
Non-AFG voltage thresholds are listed in the following table:
CharacteristicLimits
Vout (HI)≥ 2.5 V open circuit; ≥ 1.0 V into a 50 Ω load to ground
Vout (LO)≤ 0.7 V into a load of ≤ 4 mA; ≤ 0.25 V into a 50 Ω load to ground
Aux input
300 Vrms CAT II with peaks ≤ ±425 V
Security lock
Rear-panel security slot connects to standard Kensington-style lock
VESA mount
Standard (VESA MIS-D 100) 100 mm x 100 mm VESA mounting points on rear of instrument
Ground lug
Provides a safe ground return path when the instrument is operating on battery

Data handling characteristics

Real-time clock
A programmable clock maintains and reports the current time in the units of years, months, days, hours, minutes, and seconds.
Non-volatile memory capacity
One eMMC device (limited to 2 GB of usable space in SLC mode) contains the bootloader, operating system, application software, calibration constants, and user data storage.
Mass storage device capacity
Linux: ≥4 GB.
The form factor is an embedded eMMC BGA. It provides storage for saved customer data, all calibration constants and the Linux operating system. Not customer serviceable. Partition on the user device, with a nominal capacity of 2 GB, is available for the storage of saved customer data.
The physical capacity is larger, but in SLC mode it is 2 GB only for the longevity of the NAND flash.

Power supply system

Power consumption
60 W maximum
Source voltage
100 – 240 VAC ±10% (50/60 Hz)
Source frequency
50 – 60 Hz (100 – 240 VAC)
AC Adapter output
24 V DC, 2.71 A
Fuse rating
T3.15 A, 250 V
The fuse is not customer replaceable.
The line lead is fused, but the neutral lead is not fused.
Battery
Description
Requires Opt 2-BATPK or 2-BP battery pack, with 2 slots for batteries
Supports up to 2 TEKBAT-01 Li-Ion rechargeable batteries
Cell chemistry
Li-lon
Nominal capacity
6700 mAh
Voltage
14.52 VDC
Weight
450 g (1 lb)
Battery operating time, typical
Up to 4 hours with single battery
Up to 8 hours with dual batteries
Hot swappable
Battery life is measured under following conditions:
  • Only one channel is turned on
  • Lowest timebase setting selected
  • Lowest record length is selected
  • Fastest sample rate is selected
  • All analysis or interpolation capabilities are turned off
  • Edge trigger is selected
  • Back-light set to low

Safety characteristics

Safety certification
The following certifications and compliance are applicable:
UL/CSA/EN 61010-2-030.
US NRTL Listed - UL61010-1.
Canadian Certification - CAN/CSA-C22.2 No. 61010.1.
EU Compliance – Low Voltage Directive 2014-35-EU and EN61010-1.
International Compliance – IEC 61010-1.
Pollution degree
Pollution degree 2, indoor, and dry locations use only.

Mechanical characteristics

Weight
Instrument only
1.8 kg (4 lbs)
Instrument with battery pack
3.2 kg (7 lbs) – one battery
3.6 kg (8 lbs) – two batteries
Instrument only dimensions
Height
210 mm (8.26 in)
Width
344 mm (13.54 in)
Depth
40.4 mm (1.59 in)
Instrument with battery pack dimensions
Height
210 mm (8.26 in)
Width
344 mm (13.54 in)
Depth
78 mm (3.07 in)
Clearance requirements
The clearance requirement for adequate cooling is 13 mm (0.5 in) on the rear of the instrument along the bottom edge (inlet vents) and top edge (exhaust vents).
Rackmount configuration
5U

Electromagnetic compatibility

Regional certifications, classifications, and standards list

European union
EC Council EMC Directive 2014/30/EU
Demonstrated using:
EN 61326-2-1:2006 Electrical equipment for measurement, control, and laboratory, part 2-1. Emissions that exceed the levels required by this standard may occur when this equipment is connected to a test object. Compliance is demonstrated using high-quality, shielded interface cables.
EN IEC 61326-1:2021 and EN IEC 61326-2-1:2021 EMC requirements for Class A electrical equipment.
Emissions:
EN 55011, Class A
Immunity:
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
EN 61000-3-2
EN 61000-3-3
Australia
EMC Framework, demonstrated per emission standard CISPR 11 in accordance with EN 61326-2-1.
United Kingdom
Electromagnetic Compatibility Regulations 2016-UK SI 2016 No.1091
Demonstrated using:
EN 61326-2-1:2013 Electrical equipment for measurement, control, and laboratory, Part 2-1. Emissions that exceed the levels required by this standard may occur when this equipment is connected to a test object. Use high quality shielded cables to maintain compliance.
Emissions:
EN 55011, Class A
Immunity:
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
EN 61000-3-2
EN 61000-3-3
Ukraine
Technical Regulations on Electromagnetic Equipment Compatibility TR 1077
DSTU EN 61326-1: 2016 (EN 61326-1: 2013. IDT) and DSTU EN 61326-2-1: 2016 (EN 61326-2-1: 2013. IDT): Electrical equipment for measuring control and laboratory use. Requirements for electromagnetic compatibility Part 1 consists of general requirements, and Part 2-1 consists of additional requirements. Test configurations, working conditions, and quality criteria for the operation of an accurate test.
Emissions:
DSTU EN 55011: 2019 (EN 55011: 2009. IDT. CISPR 11: 2009. MOD) / Amendment № 1: 2019 (EN 55011: 2009 / A1: 2010. IDT.
CISPR 11: 2009 / A1: 2010. IDT) - Industrial equipment, scientific, and medical radio frequency. Characteristics of electromagnetic interference, norms, and methods of measurement.
Immunity
DSTU EN 61000-4-11: 2019 (EN 61000-4-11: 2004. IDT. IEC 61000-4-11: 2004. IDT) - Electromagnetic compatibility Part 4-11 consists of test and measurement methods. Tests for immunity to voltage dips, short-term interruptions, and voltage changes.
DSTU EN 61000-4-2: 2018 (EN 61000-4-2: 2009. IDT. IEC 61000-4-2: 2008. IDT) - Electromagnetic compatibility Part 4-2 consists of test and measurement methods. Tests for resistance to electrostatic discharges.
DSTU EN 61000-4-3: 2019 (EN 61000-4-3: 2006. IDT. IEC 61000-4-3: 2006. IDT) / Amendment № 2: 2019 (EN 61000-4-3: 2006 / A2: 2010 IDT IEC 61000-4-3: 2006 / A2: 2010 IDT) - Electromagnetic compatibility. Part 4-3. Test and measurement methods. Tests for immunity to radio frequency electromagnetic fields of radiation.
DSTU EN 61000-4-4: 2019 (EN 61000-4-4: 2012. IDT. IEC 61000-4-4: 2012. IDT) - Electromagnetic compatibility Part 4-4 consists of test methods for testing and measurement. Tests for susceptibility to electrical rapid transition processes or pulse packets.
DSTU EN 61000-4-5: 2019 (EN 61000-4-5: 2014. IDT. IEC 61000-4-5: 2014. IDT) - Electromagnetic compatibility Part 4-5 consists of test and measurement methods. Tests for immunity to voltage and current surges.
DSTU EN 61000-4-6: 2019 (EN 61000-4-6: 2014. IDT. IEC 61000-4-6: 2013. IDT) - Electromagnetic compatibility Part 4 consists of test and measurement methods. Tests for immunity to conductive perturbations induced by radio frequency fields
Emissions that exceed the levels required by this standard may occur when this equipment is connected to a test object.
Compliance demonstrated using high quality, shielded interface cables.
Korea
EC Council EMC Directive 2014/30/EU
Demonstrated using:
EN 61326-2-1:2013 Electrical equipment for measurement, control, and laboratory, Part 2-1. Emissions that exceed the levels required by this standard may occur when this equipment is connected to a test object. Use high quality shielded cables to maintain compliance.
EN IEC 61326-1:2021 and EN IEC 61326-2-1:2021 EMC Requirements for Class A electrical equipment
Emissions
EN 55011, Class A
Immunity
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
EN 61000-3-2
EN 61000-3-3

Immunity

Electrostatic discharge (ESD), and enclosure port
IEC 61000-4-2
Radiated radio frequency electromagnetic field, and enclosure port
IEC 61000-4-3
Triggering when the trigger threshold is offset by less than 4 minor divisions from ground reference is allowed.
Electrical fast Transient/burst, and common-mode
IEC 61000-4-4
Surge/electrical slow transient
IEC 61000-4-5
Conducted radio frequency
IEC 61000-4-6
Ambient fields may induce triggering when the trigger threshold is offset by less than 1 major division from ground reference.
Voltage dips and short interruptions, and AC power port
IEC 61000-4-11

Environmental

Product recycling information and documentation
User information should include an explanation of the recycling mark and direct the customer to the appropriate resources for recycling the product via one of the following methods:
  1. Operator manual boilerplate; or
  2. Pack-in errata sheet (only use this method if manual has been finalized); or
  3. Online help file (if no other documentation is shipped with the product).
Temperature
Operating
0 °C to +50 °C (+32 °F to 120 °F)
Operating battery
0 °C to 45 °C (+32 °F to 113 °F)
Non-operating
-20 °C to +60 °C (-4 °F to 140 °F)
Humidity
Operating
5% to 90% relative humidity at temperatures up to +30 °C,
5% to 60% relative humidity at temperatures greater than +30 °C and up to +50 °C
Non-operating
5% to 90% relative humidity at temperatures up to +30 °C
5% to 60% relative humidity at temperatures greater than +30 °C and up to +60 °C
Altitude
Operating
Up to 3,000 meters (9,842 feet)
Non-operating
Up to 12,000 meters (39,370 feet)

Regulatory compliance

EMC
Conforms to European Union EMC Directive (CE-marked)
Safety
Conforms to European Union Low Voltage Directive (CE-marked)
Conforms to ANSI/UL61010-1 and ANSI/UL61010-2-030 (CSA-marked)
Certified to CAN/CSA C22.2 No.61010-1 and CAN/CSA C22.2 No.61010-2-030 (CSA-marked)
RoHS
Conforms to European Union Restrictions on Hazardous Substances (CE-marked)

Performance verification procedures

This chapter contains performance verification procedures for the specifications marked with the ✔ symbol. The following equipment, or a suitable equivalent, is required to complete these procedures.

The performance verification procedures verify the performance of your instrument. They do not adjust your instrument. If your instrument fails any of the performance verification tests, repeat the failing test, verifying that the test equipment and settings are correct. If the instrument continues to fail a test, contact Tektronix Customer Support for assistance.

These procedures cover all 2 Series MSO instruments. Completion of the performance verification procedure does not update the instrument time and date.

Print the test records on the following pages and use them to record the performance test results for your oscilloscope. Disregard checks and test records that do not apply to the specific model you are testing.

The following table lists the required equipment. You might need additional cables and adapters, depending on the actual test equipment you use.

Required equipment Minimum requirements Examples
DC voltage source 3 mV to 4 V, ±0.1% accuracy Fluke 9500B Oscilloscope Calibrator with a 9530 Output Module
Leveled sine wave generator 50 kHz to 2 GHz, ±4% amplitude accuracy
Time mark generator 80 ms period, ±1.0 x 10-6 accuracy, rise time <50 ns

Test records

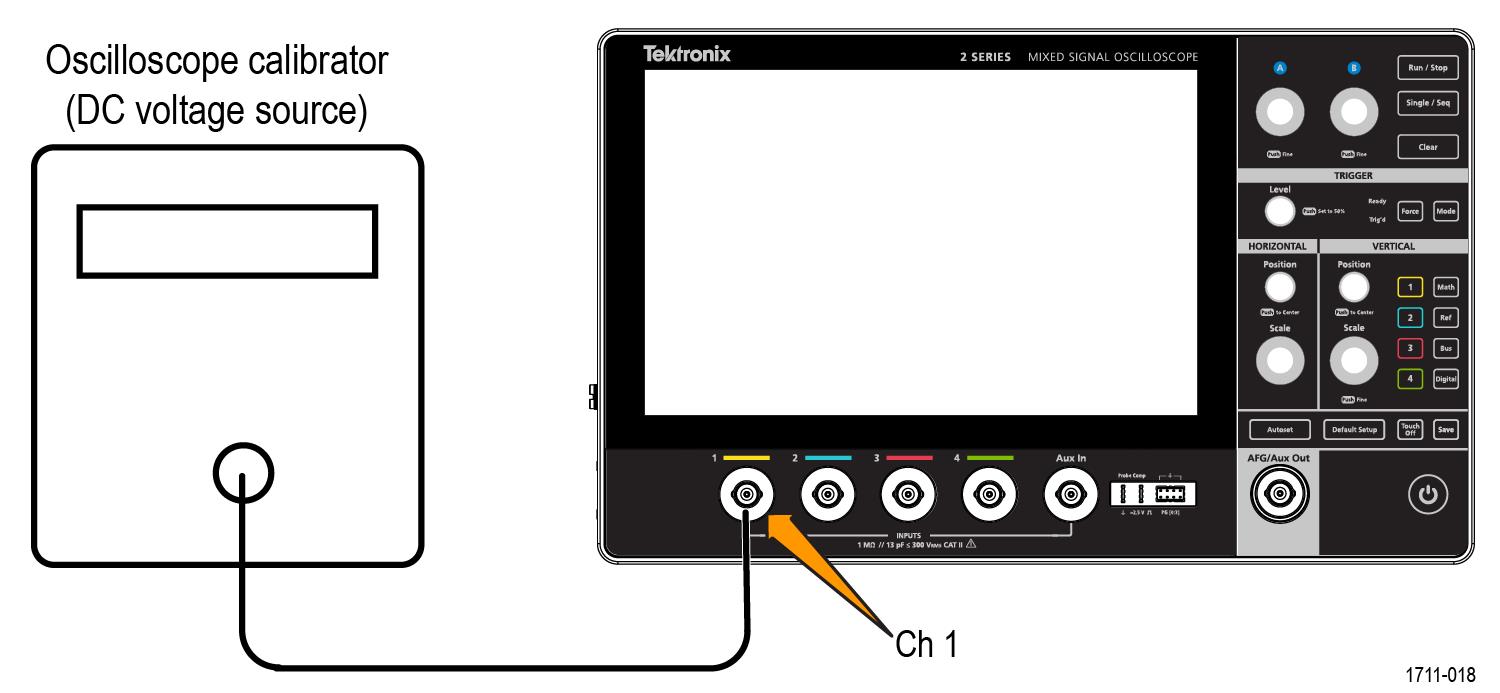

DC Gain Accuracy test record

DC Gain Accuracy
Performance checksBandwidthVertical scaleLow limitTest resultHigh limit
Channel 1 DC Gain Accuracy, 0 V offset, 0 V vertical position20 MHz2 mV/div-2%2%
4.98 mV/div-2%2%
5 mV/div-2%2%
10 mV/div-2%2%
20 mV/div-2%2%
49.8 mV/div-2%2%
50 mV/div-2%2%
100 mV/div-2%2%
200 mV/div-2%2%
500 mV/div-2%2%
1 V/div-2%2%
FULL100 mV/div-2%2%
Channel 2 DC Gain Accuracy, 0 V offset, 0 V vertical position20 MHz2 mV/div-2%2%
4.98 mV/div-2%2%
5 mV/div-2%2%
10 mV/div-2%2%
20 mV/div-2%2%
49.8 mV/div-2%2%
50 mV/div-2%2%
100 mV/div-2%2%
200 mV/div-2%2%
500 mV/div-2%2%
1 V/div-2%2%
FULL100 mV/div-2%2%
Channel 3 DC Gain Accuracy, 0 V offset, 0 V vertical position20 MHz2 mV/div-2%2%
4.98 mV/div-2%2%
5 mV/div-2%2%
10 mV/div-2%2%
20 mV/div-2%2%
49.8 mV/div-2%2%
50 mV/div-2%2%
100 mV/div-2%2%
200 mV/div-2%2%
500 mV/div-2%2%
1 V/div-2%2%
FULL100 mV/div-2%2%
Channel 4 DC Gain Accuracy, 0 V offset, 0 V vertical position20 MHz2 mV/div-2%2%
4.98 mV/div-2%2%
5 mV/div-2%2%
10 mV/div-2%2%
20 mV/div-2%2%
49.8 mV/div-2%2%
50 mV/div-2%2%
100 mV/div-2%2%
200 mV/div-2%2%
500 mV/div-2%2%
1 V/div-2%2%
FULL100 mV/div-2%2%

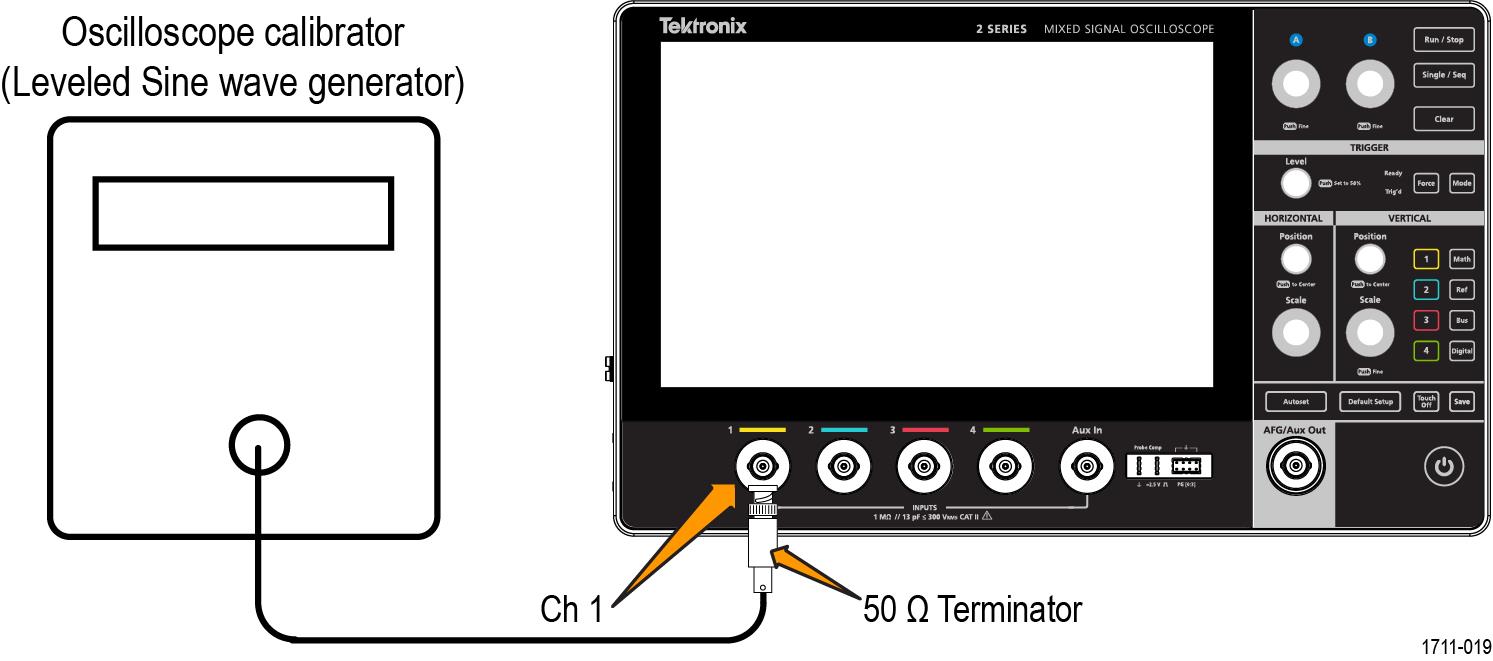

Analog Bandwidth test record

Analog Bandwidth performance checks
Bandwidth at ChannelVertical scaleVin-AC RMS Vbw-AC RMSLimitTest result Gain = Vbw-AC RMS/Vin-AC RMS
Channel 11 mV/div≥ 0.707
2 mV/div≥ 0.707
5 mV/div≥ 0.707
10 mV/div≥ 0.707
20 mV/div≥ 0.707
200 mV/div≥ 0.707
700 mV/div≥ 0.707
3 V/div≥ 0.707
5 V/div≥ 0.707
Channel 21 mV/div≥ 0.707
2 mV/div≥ 0.707
5 mV/div≥ 0.707
10 mV/div≥ 0.707
20 mV/div≥ 0.707
200 mV/div≥ 0.707
700 mV/div≥ 0.707
3 V/div≥ 0.707
5 V/div≥ 0.707
Channel 31 mV/div≥ 0.707
2 mV/div≥ 0.707
5 mV/div≥ 0.707
10 mV/div≥ 0.707
20 mV/div≥ 0.707
200 mV/div≥ 0.707
700 mV/div≥ 0.707
3 V/div≥ 0.707
5 V/div≥ 0.707
Channel 41 mV/div≥ 0.707
2 mV/div≥ 0.707
5 mV/div≥ 0.707
10 mV/div≥ 0.707
20 mV/div≥ 0.707
200 mV/div≥ 0.707
700 mV/div≥ 0.707
3 V/div≥ 0.707
5 V/div≥ 0.707

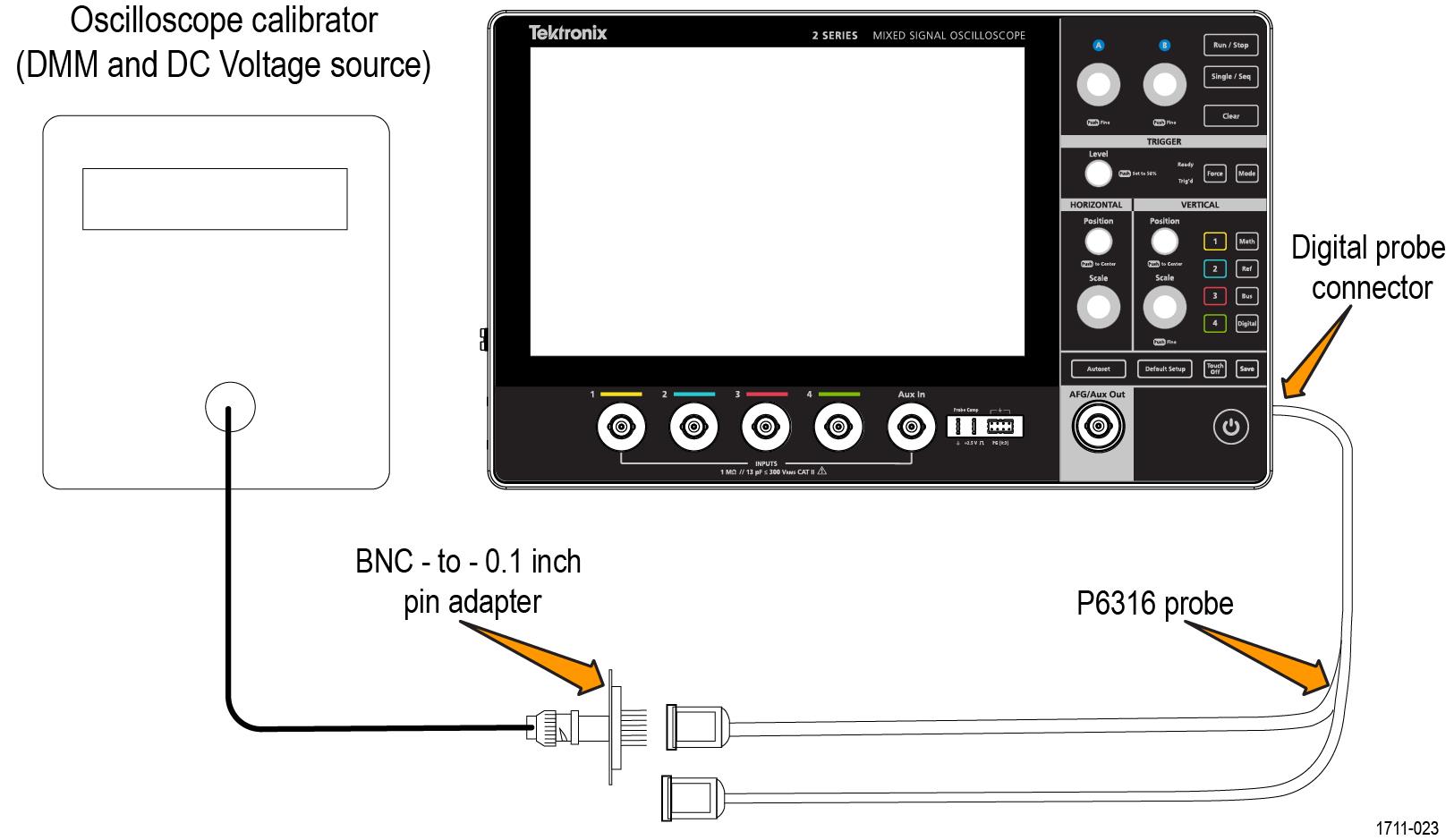

Digital threshold accuracy tests with 2-MSO option

Digital threshold accuracy performance checks
Digital channel ThresholdVs-Vs+ Low limitTest result VsAvg = (Vs-- + Vs+)/2 High limit
D0 0 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D10 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D20 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D30 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D40 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D50 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D60 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D70 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D80 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D90 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D100 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D110 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D120 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D130 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D140 V-0.18 V0.18 V
4 V3.74 V 4.26 V
D150 V-0.18 V0.18 V
4 V3.74 V 4.26 V

Long term sample rate test records

Long Term Sample RateLow limitTest resultHigh limit
Performance checks
Long Term Sample Rate -2 divisions +2 divisions

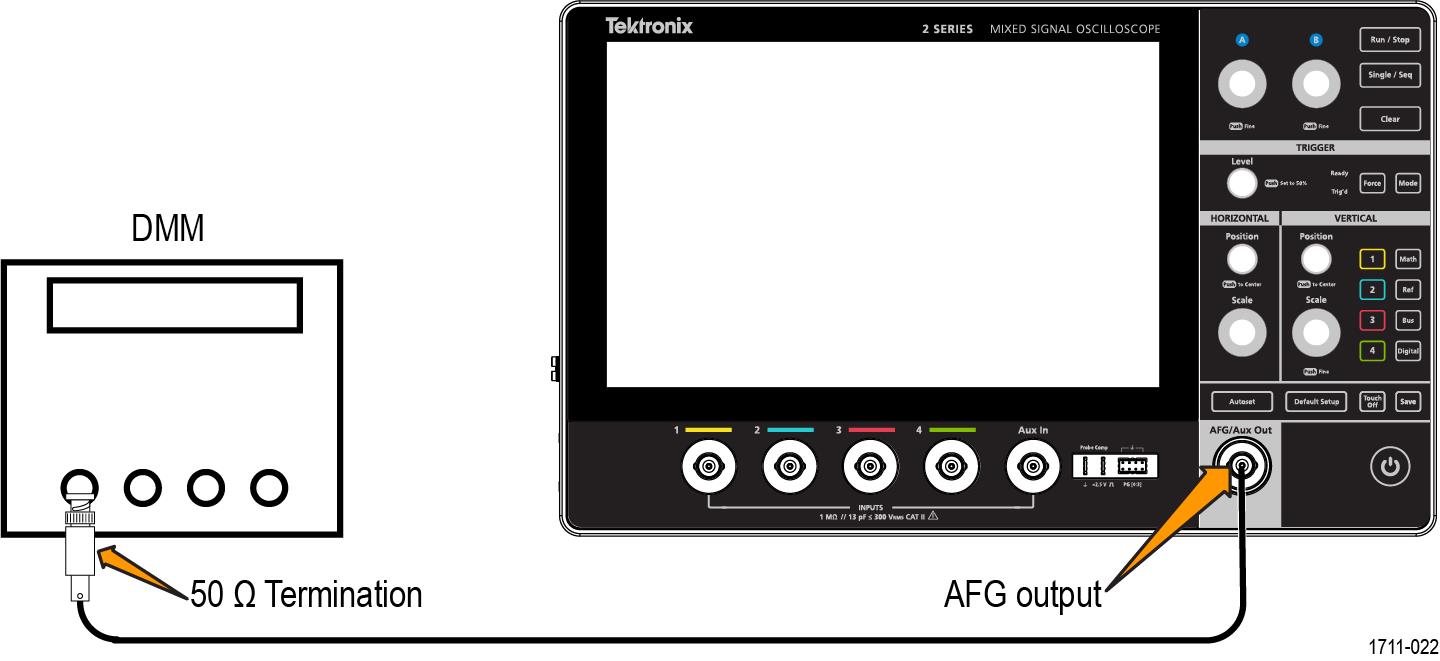

AFG DC Offset Accuracy Tests

AFG DC Offset Accuracy
Performance checksLow limitTest resultHigh limit
All models20 mV DC offset @ 50 Ω 18.7 mV 21.3 mV
1 V DC offset @ 50 Ω 984 mV 1.016 V
- 1 V DC offset @ 50 Ω-1.016 V -984 mV

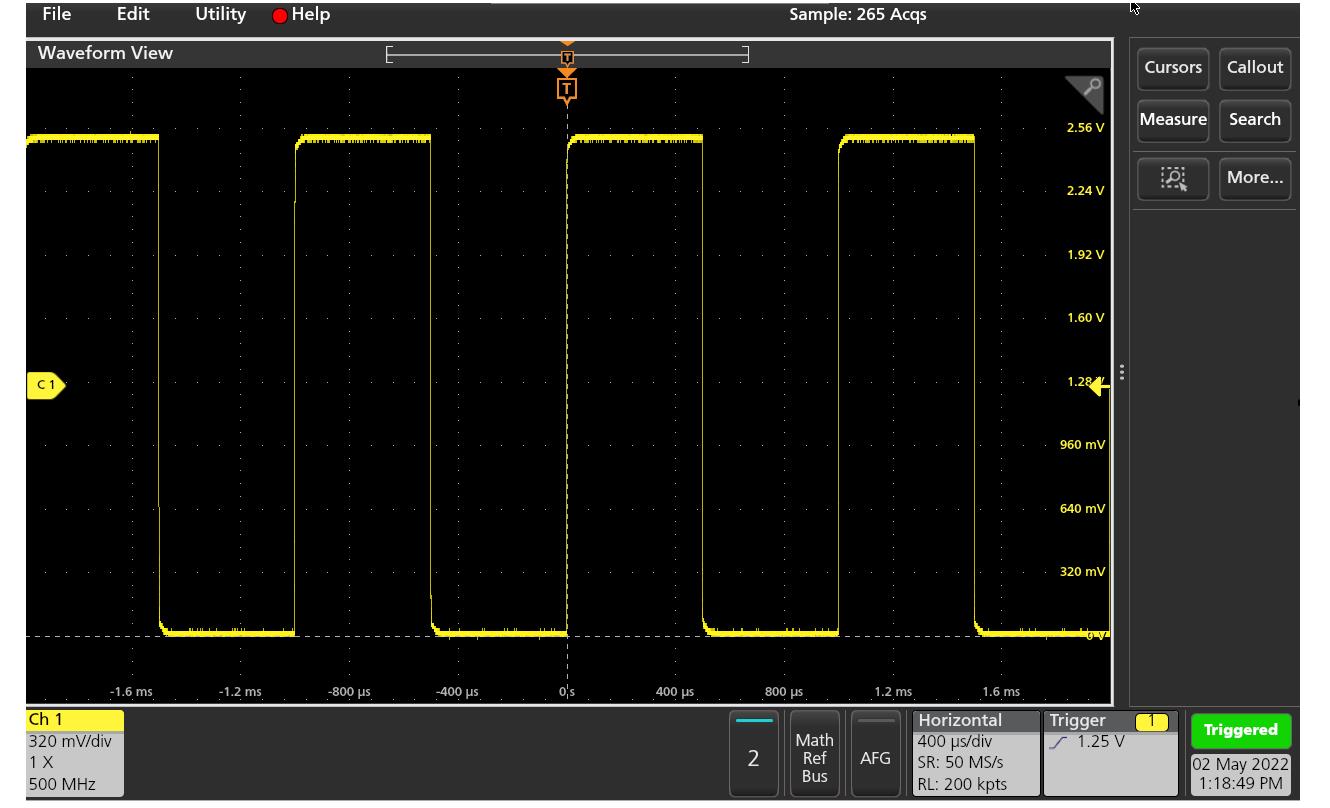

Check probe compensation

Procedure to check the probe compensation.

Procedure

  1. Connect the probe compensation to Ch 1.
  2. Turn on the Ch 1 and turn off all other channels.
  3. Tap File > Default Setup.
  4. Push Autoset button on the front-panel or tap File > Autoset from the menu bar.
    The screen displays a square wave. The levels should be approximately 0 V - 2.5 V and 1 kHz.

Check Aux In

Procedure to check the Aux In.

Procedure

  1. Connect probe compensation to Aux In.
  2. Tap File > Default Setup.
  3. Double-tap the trigger badge on the settings bar and set the trigger Source to Aux In.
  4. Set Trigger Level to 1 V.
  5. Tap Trigger on the settings bar and verify the oscilloscope is Triggering.

Check DC gain accuracy

Procedure to test the DC gain accuracy.

Procedure

WARNING:Set the generator output to Off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
  1. Connect the oscilloscope to a calibrated DC voltage source. If you are using the Fluke 9500 calibrator, connect the calibrator head to the oscilloscope channel to test.


  2. Tap File > Default Setup.
  3. Double-tap the Horizontal badge and open the Acquisition Settings.
  4. Set Acquisition Mode to Average.
  5. Set the Number of Waveforms to 16.
  6. Tap outside the menu to close the menu.
  7. Double-tap the Trigger badge and set the trigger Source to Internal.
  8. Tap outside the menu to close it.
  9. Add the Mean measurement to the Results bar:
    1. Tap the Measure button to open the Add Measurements menu.
    2. Set the Source to Ch 1.
    3. In the Amplitude Measurements panel, double-tap the Mean button to add the Mean measurement badge to the Results bar.
  10. Tap outside the menu to close it.
  11. Double-tap the Mean results badge.
  12. Tap Show Statistics in Badge.
  13. Tap outside the menu to close it.
  14. Tap the channel button of the channel to test, to add the channel badge to the Settings bar.
  15. Double tap the channel to test badge to open its menu and set the channel settings:
    1. Set Vertical Scale to 2 mV/div.
    2. Tap Bandwidth Limit and set to 20 MHz.
    3. Tap Probe Setup and set Attenuation to 1X.
    4. Tap outside the menu to close it.
  16. Record the negative-measured and positive-measured mean readings in the Expected gain worksheet as follows:
    1. On the calibrator, set the DC Voltage Source to the Vnegative value as listed in the 2 mV row of the worksheet.
    2. Double-tap the Horizontal badge and open Acquisition Settings.
    3. Tap Clear to reset the measurement statistics.
    4. Enter the Mean reading in the worksheet as Vnegative-measured.
    5. On the calibrator, set the DC Voltage Source to Vpositive value as listed in the 2 mV row of the worksheet.
    6. Double-tap the Horizontal badge and open Acquisition Settings (if not open).
    7. Tap Clear to reset the measurement statistics.
    8. Enter the Mean reading in the worksheet as Vpositive-measured.
    Table 1. Expected gain worksheet
    Oscilloscope vertical scale setting VdiffExpectedVnegativeVpositive Vnegative-measuredVpositive-measuredVdiff Test result (Gain accuracy)
    2 mV/div
    4.98 mV/div
    5 mV/div
    10 mV/div
    20 mV/div
    49.8 mV/div
    50 mV/div
    100 mV/div
    200 mV/div
    500 mV/div
    1.0 V/div
    100 mV/div at Full BW
    Tektronix recommends calculating the stimulus voltage using 7 vertical divisions. However, the stimulus voltage value could be what fits within the display area based on the vertical scale.
    • TotalOffset = ((-Position * VoltsPerDiv) + Offset
    • Voltage = (number of vertical divisions * VoltsPerDiv)/2
    • Vnegative = TotalOffset – Voltage
    • Vpositive = TotalOffset + Voltage
    • VdiffExpected = abs(Vnegative – Vpositive)
    • Divisions = peak to peak voltage in division equivalent (7 divisions at 1mV/div = 7mVpp signal, or ±3.5mV, around the TotalOffset)
    Table 2. Example expected gain worksheet with 7 vertical divisions stimulus voltage values
    Oscilloscope vertical scale setting VdiffExpectedVnegativeVpositive Vnegative-measuredVpositive-measuredVdiff Test result (Gain accuracy)
    2 mV/div14 mV-7 mV+7 mV
    4.98 mV/div34.86 mV-17.43 mV+17.43 mV
    5 mV/div35 mV-17.5 mV+17.5 mV
    10 mV/div70 mV-35 mV+35 mV
    20 mV/div140 mV-70 mV+70 mV
    49.8 mV/div348.6 mV-174.3 mV+174.3 mV
    50 mV/div350 mV-175 mV+175 mV
    100 mV/div700 mV-350 mV+350 mV
    200 mV/div1400 mV-700 mV+700 mV
    500 mV/div3500 mV-1750 mV+1750 mV
    1.0 V/div7 V-3.5 V+3.5 V
    100 mV/div at Full BW700 mV-350 mV+350 mV
  17. Calculate Gain Accuracy as follows:
    1. Calculate V diff as follows:
      V diff = | V negative-measured - V positive-measured |
    2. Enter V diff in the worksheet.
    3. Calculate Gain Accuracy as follows:
      Gain Accuracy = ((V diff - V diffExpected )/V diffExpected ) × 100%
    4. Enter the Gain Accuracy value in the worksheet and in the test record.
  18. Repeat steps 15 through 17 for all vertical scale settings in the work sheet and the test record.
  19. Repeat the procedure for all remaining channels:
    1. Set the calibrator to 0 volts.
    2. Move the calibrator output to the next channel input to be tested.
    3. Double-tap the channel badge of the channel that you have finished testing and set Display to Off.
    4. Double-tap the Mean measurement badge.
    5. Tap the Configure panel.
    6. Tap the Source 1 field and select the next channel to test.
    7. Starting from step 15, set the values from the test record for the channel under test, and repeat the above steps until all channels have been tested.
  20. Touch outside a menu to close the menu.

Check analog bandwidth

Procedure to check the bandwidth for each channel.

Procedure

WARNING:Set the generator to off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
  1. Connect the output of the calibrated leveled sine wave generator to the 50 Ω terminator (Tektronix Part Number 011-0049-02) on Channel 1 as shown in the following illustration.
    If using the Fluke 9500 calibrator as the sine wave generator, connect the calibrator head to the 50 Ω terminator with the Fluke 9500 in 50 Ω output mode. Do not connect the Fluke 9500 calibrator head directly to the oscilloscope channel.


  2. Tap File > Default Setup to reset the instrument and add the channel 1 badge and signal to the display.
  3. Add the AC RMS measurement as follows:
    1. Tap the Measure button.
    2. Set the Source to the channel under test.
    3. In the Amplitude Measurements panel, double-tap the AC RMS measurement button to add the measurement badge to the Results bar.
  4. Set the channel under test settings:
    1. Double-tap the badge of the channel under test to open its configuration menu.
    2. Set Vertical Scale to 1 mV/div.
    3. Tap outside the menu to close it.
  5. Adjust the leveled sine wave signal source to display a waveform of 8 vertical divisions at the selected vertical scale with a set frequency of 1 kHz.
    For example, at 5 mV/div, use a ≥40 mVp-p signal; at 2 mV/div, use a ≥16 mVp-p signal.
    At some V/div settings, the generator may not provide 8 vertical divisions of signal. Set the generator output to obtain as many vertical divisions of signal as possible.
  6. Double-tap the Horizontal badge in the Settings bar.
  7. Set the Horizontal Scale to 1 ms/division.
  8. Tap outside the menu to close it.
  9. Record the AC RMS measurement in the V in-AC RMS entry of the test record.
  10. Double-tap the Horizontal badge in the Settings bar.
  11. Set the Horizontal Scale to 4 ns/division.
  12. Adjust the signal source to the maximum bandwidth frequency for the bandwidth and model being tested.
  13. Record the AC RMS measurement at the new frequency in the V bw-pp entry of the test record.
  14. Use the values of V bw-pp and V in-pp recorded in the test record, and the following equation, to calculate the Gain at bandwidth.
    Gain = Vbw-pp / Vin-pp.
    To pass the performance measurement test, Gain should be ≥ 0.707. Enter Gain in the test record.
  15. Repeat steps from 4 to 14 for all combinations of Vertical Scale and Horizontal Scale settings listed in the test record.
  16. Repeat the test for all remaining channels as follows:
    1. Turn Off the generator.
    2. Move the calibrator output to the next channel input to be tested.
    3. Turn On the generator.
    4. Tap the channel button on the oscilloscope Settings bar of the next channel to test.
    5. Double-tap the AC RMS measurement badge.
    6. Tap the Configure panel.
    7. Tap the Source 1 field and select the next channel to test.
    8. Starting from step 4, repeat the procedure until all channels have been tested.

Check digital threshold accuracy with 2-MSO option

This procedure checks the threshold accuracy of the digital channels and is for models with the 2-MSO option only.

About this task

This procedure applies to digital channels D0 through D15, and to channel threshold values of 0 V and 4 V.

Procedure

  1. Connect the P6316 digital probe to the instrument.
  2. Connect the P6316 Group 1 pod to the DC voltage source to run this test.
    You will need a BNC-to-0.1 inch pin adapter to complete the connection. If using the Fluke 9500 calibrator as the DC voltage source, connect the calibrator head to the P6316 Group 1 pod. You will need a BNC-to-0.1 inch pin adapter to complete the connection.


  3. Push Default Setup on the front panel to set the instrument to the factory default settings.
  4. Display the digital channels and set the thresholds as follows:
    1. Tap the D15-D0 button on the Settings bar.
    2. Double-tap the D15-D0 badge on the Settings bar.
    3. Tap the D15-D8 Turn All On button to turn all bits on.
    4. Tap the D7-D0 Turn All On button to turn all bits on.
    5. Tap the D15-D8 Thresholds field at the bottom of the menu and set the value to 0 V.
    6. Tap the D7-D0 field at the bottom of the menu and set the value to 0 V. The thresholds are set for the 0 V threshold check.
    7. Tap outside the menu to close it.
  5. You need to record the test values in the test record row for 0 V for each digital channel. See Digital threshold accuracy performance checks table.
  6. Double-tap the Trigger badge.
  7. Tap Slope and change the slope to rising edge.
  8. Set the Source to the appropriate channel, such as D0.
    By default, the Type is set to Edge, Coupling is set to DC, Slope is set to Rising, Mode is set to Auto, and Level is set to match the threshold of the channel being tested.
  9. Tap outside the menu to close it.
  10. Set the DC voltage source (Vs) to -400 mV. Wait 3 seconds. Check the logic level of the corresponding digital channel in the display.
    If the channel is a static logic level high (green), change the DC voltage source Vs to -500 mV.
  11. Increment Vs by +20 mV. Wait 3 seconds and check the logic level of the corresponding digital channel in the display. If the channel is at a static logic level high (green), record the Vs value as in the 0 V row of the test record.
    If the channel is a logic level low (blue) or is alternating between high and low, repeat this step (increment Vs by 20 mV, wait 3 seconds, and check for a static logic high). Continue until a value for Vs- is found. In this procedure, the channel might not change state until after you pass the set threshold level.
  12. Double-tap the Trigger badge.
  13. Tap Slope and change the slope to falling edge.
  14. Tap outside the menu to close it.
  15. Set the DC voltage source (Vs) to +400 mV. Wait 3 seconds. Check the logic level of the corresponding digital channel in the display.
    If the channel is a static logic level low (blue), change the DC voltage source Vs to +500 mV.
  16. Decrement Vs by -20 mV. Wait 3 seconds and check the logic level of the corresponding digital channel in the display. If the channel is at a static logic level low, record the Vs value as Vs+ in the 0 V row of the test record.
    If the channel is a logic level high (green) or is alternating between high and low, repeat this step (decrement Vs by 20 mV, wait 3 seconds, and check for a static logic low). Continue until a value for Vs+ is found.
  17. Find the average, VsAvg = (Vs- + Vs+)/2. Record the average as the test result in the test record.
    Compare the test result to the limits. If the result is between the limits, continue with the procedure to test the channel at the +4 V threshold value.
  18. Repeat the procedure starting with step 6 for each remaining digital channel.
  19. Double-tap the Trigger badge.
  20. Set the Source to the appropriate channel, such as D0.
  21. Tap Slope and change the slope to falling edge.
  22. The remaining part of this procedure is for the +4 V threshold test.
    1. Double-tap the D15-D0 badge on the Settings bar.
    2. Tap the D15-D8 Turn All On button to turn all bits on.
    3. Tap the D7-D0 Turn All On button to turn all bits on.
    4. Tap the D15-D8 Thresholds field at the bottom of the menu and set the value to 4.00 V.
    5. Tap the D7-D0 Thresholds field at the bottom of the menu and set the value to 4.00 V.
    6. Tap outside the menu to close it.
  23. Set the DC voltage source (Vs) to +4.4 V. Wait 3 seconds. Check the logic level of the corresponding digital channel in the display.
    If the channel is a static logic level low (blue), change the DC voltage source Vs to +4.5 V.
  24. Decrement Vs by -20 mV. Wait 3 seconds and check the logic level of the corresponding digital channel in the display. If the channel is at a static logic level low, record the Vs value as Vs+ in the 4 V row of the test record.
    If the channel is a logic level high (green) or is alternating between high and low, repeat this step (decrement Vs by 20 mV, wait 3 seconds, and check for a static logic low). Continue until a value for Vs+ is found.
  25. Double-tap the Trigger badge.
  26. Tap Slope and change the slope to rising edge.
  27. Tap outside the menu to close it.
  28. Set the DC voltage source (Vs) to +3.6 V. Wait 3 seconds. Check the logic level of the corresponding digital channel in the display.
    If the channel is a static logic level high (green), change the DC voltage source Vs to +3.5 V.
  29. Increment Vs by +20 mV. Wait 3 seconds and check the logic level of the corresponding digital channel in the display. If the channel is at a static logic level high, record the Vs value as in the 4 V row of the test record.
    If the channel is a logic level low (blue) or is alternating between high and low, repeat this step (increment Vs by 20 mV, wait 3 seconds, and check for a static logic high). Continue until a value for Vs- is found.
  30. Find the average, VsAvg = (Vs- + Vs+)/2. Record the average as the test result in the test record.
    Compare the test result to the limits. If the result is between the limits, the channel passes the test.
  31. Repeat the procedure starting with step 19 for each digital channel.

Check long term sample rate

This procedure checks the sample rate and delay time accuracy (time base).

Procedure

WARNING:Set the generator to off or 0 volts before connecting, disconnecting, and/or moving the test hookup during the performance of this procedure. The generator is capable of providing dangerous voltages.
  1. Connect the output of a time mark generator to the oscilloscope channel 1 input.
  2. Set the time mark generator period to 80 ms. Use a time mark waveform with a fast rising edge.
  3. If it is adjustable, set the time mark amplitude to approximately 1 VP-P.
  4. Tap File > Default Setup.
  5. Tap the channel 1 button on the Settings bar.
  6. Double-tap the Channel 1 badge to open its Configuration menu.
  7. Set Vertical Scale to 500 mV.
  8. Set the Position value to center the time mark signal on the screen.
  9. Tap outside the menu area to close it.
  10. Double-tap the Horizontal settings badge.
  11. Set the Horizontal Scale to 1 us/div.
  12. Tap outside the menu area to close it.
  13. Double-tap the Trigger settings badge.
  14. Set Source to the channel being tested.
  15. Set the Level as necessary for a triggered display.
  16. Tap outside the menu area to close it.
  17. Double-tap the Horizontal settings badge.
  18. Adjust the Position value to move the trigger point to the center of the screen.
  19. Turn Delay to On and set Position to 80 ms.
  20. Set the Horizontal Scale to 1 us/div.
  21. Observe where the rising edge of the marker crosses the center horizontal graticule line. The rising edge should cross within ±2 divisions of the vertical center graticule. Enter the deviation in the test record.
    A 2.5 x 10-6 time base error is 2 divisions of displacement.

Check AFG DC offset accuracy

This procedure checks the AFG DC Offset Accuracy.

Procedure

  1. Connect the AFG output to the DMM through a 50 Ω termination.


  2. Push the Default Setup button on the oscilloscope front panel.
  3. Tap the AFG button.
  4. Tap Waveform Type and select DC from the drop down list.
  5. Tap Amplitude and set amplitude to the value shown in the test record.
  6. Set DMM to measure DC Voltage.
  7. Measure voltage on the DMM. Compare the result to the limits in the test record.
  8. Repeat steps from 3 to 7 above for each line in the test record. This completes the procedure.

Help us improve our technical documentation. Provide feedback on our TekTalk documentation forum.
