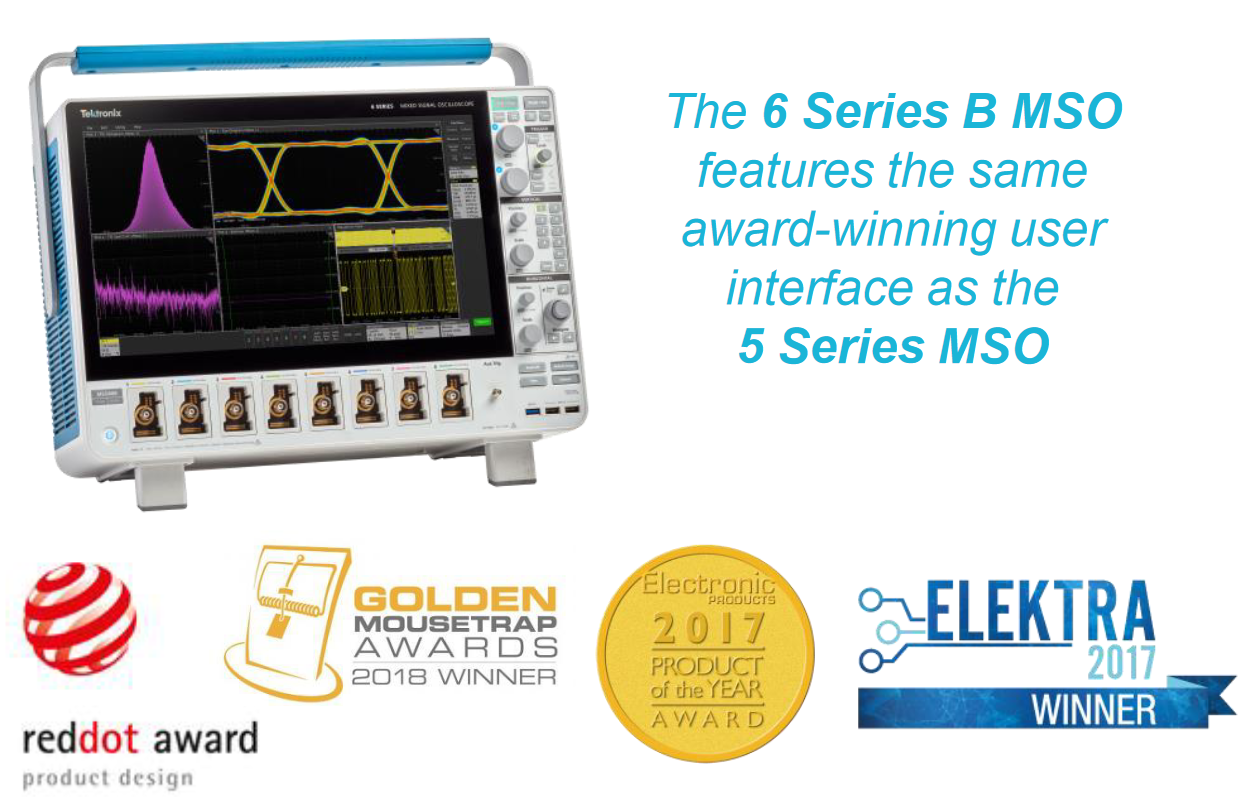

Keysight S-Series vs. 6 Series B MSO Mixed Signal Oscilloscope Comparison


Oscilloscope
Oscilloscope Performance Specs
Tektronix 6 Series B MSO
✔ 10 GHz & 50 GS/s on two channels
    10 GHz & 25 GS/s on four channels
✔ Up to 64 digital channels (500MHz, 25GS/s)
✔ 100 GS/s of 12-bit ADCs (4x at 25 GS/s), shared for analog or digital FlexChannels
Industry's Only Std. Closed Embedded OS or optional Windows 10 OS
✔ Full HD 1920 x 1080 15.6” Multi-touch capacitive display
Keysight S-Series
8 GHz & 20 GS/s on two channels
MSO model - 16 digital channels (400 MHz, 2 GS/s)
40 GS/s of 10-bit ADCs (2x at 20 GS/s) for analog channels only
Windows 7 Only
XGA 1024 x 768 15” Multi-touch capacitive display
Best in Class Noise Performance1,2
Bandwidth Volts / Div 6 Series B MSO S-Series
1 GHz 1 mv 51.1 µV ✔ 90 µV
10 mv 82.9 µV ✔ 110 µV
100 mv 829 µV ✔ 960 µV
4 GHz 1 mv 97.4 µV ✔ 153 µV
10 mv 220 µV ✔ 110 µV
100 mv 1.73 mV ✔ 1.6 mV
8 GHz 1 mv 153 µV ✔ 260 µV
10 mv 287 µV ✔ 390 µV
100 mv 2.94 mV ✔ 3.10 mV
Vertical Resolution
Tektronix 6 Series B MSO
✔ 12-bit Analog-to-Digital Converter (ADC)
✔ 12-bit data used at 12.5 GS/s (up to 8 channels) with High Res
✔ 25 GS/s on four channels; 12.5 GS/s on eight channels
Keysight S-Series
Up to 4 GHz on four channels
10 GS/s on four channels
Channel Bandwidth & Sample Rate
Tektronix 6 Series B MSO
✔ Up to 10 GHz on four channels; Up to 5 GHz on eight channels
✔ ENOB: 8.45 bits (1 GHz), 7.95 bits (2.5 GHz), 7.6 bits (4 GHz), 6.85 bits (8 GHz)
Keysight S-Series
10-bit Analog-to-Digital Converter
8-bit data used at 5 GS/s or lower, High Res and Peak Detect modes
ENOB: 7.8 bits (1 GHz), 7.4 bits ( 2.5GHz) 7.2 bits (4 GHz), 6.4 bits (8 GHz)

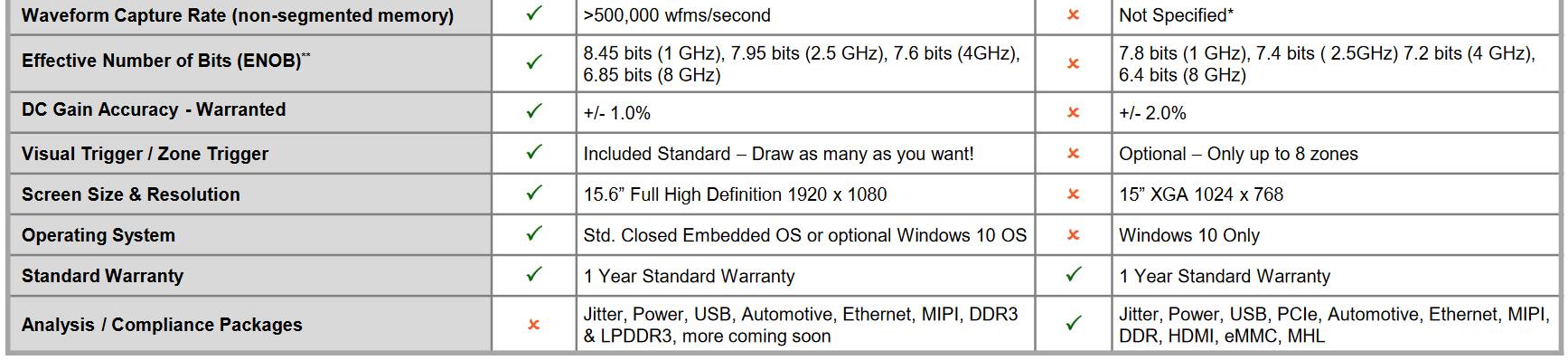

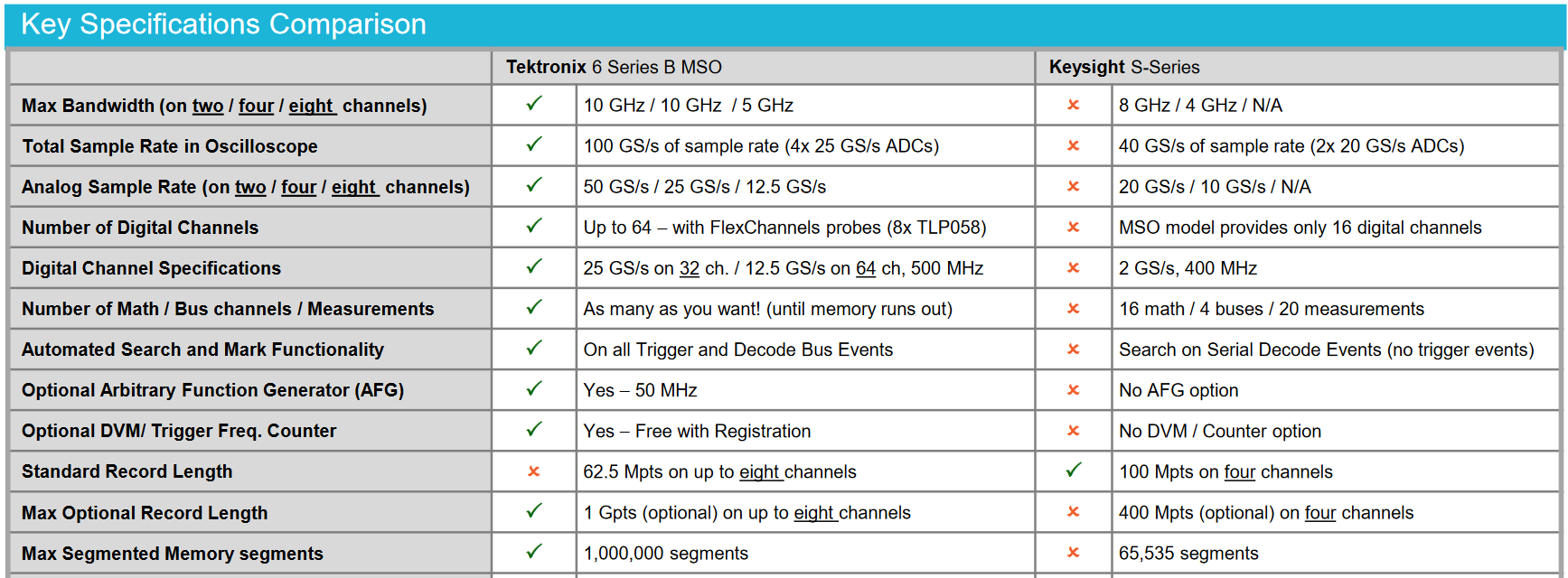

key features comparison key features comparison

* Not specified by Keysight, but maximum rate measured by Tektronix was 600 wfms/sec
** ENOB was tested by Tektronix at 500mV Full Scale and 90% of screen. Keysight is tested at 300mV Full Scale
