Keysight 3000T X-Series Oscilloscopes vs. 3 Series MDO Mixed Domain Oscilloscopes Comparison


Screen Size and Waveform Viewing Area

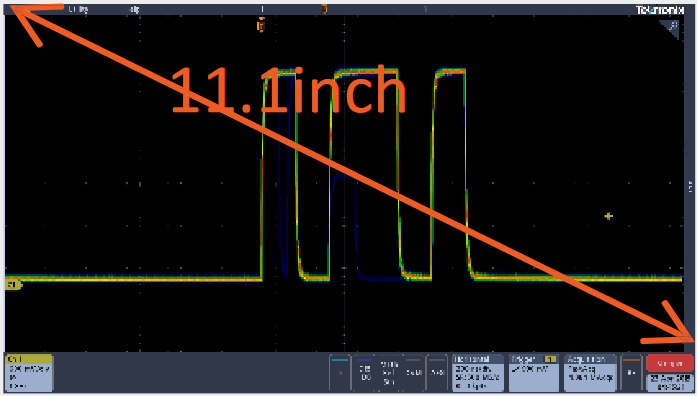

Tektronix x 3 Series MDO (11.6” HD 1920x1080 touch)
Oscilloscope

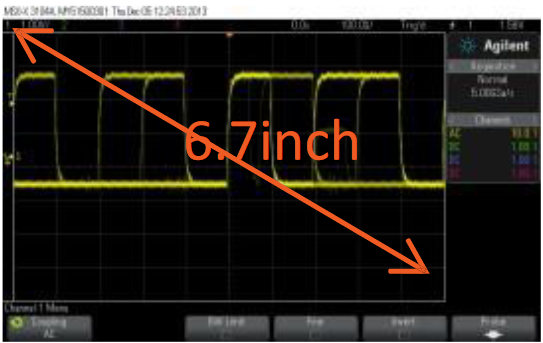

Keysight X3000T-Series (8.5” VGA 800x480 touch)
Oscilloscope
Digital Channels
Tektronix 3 Series MDO
✔ Maximum record length 10 Mpoints, even with analog channels on
✔ Minimum detectable pulse 2ns
✔ Channel-to-channel skew 500 ps typical
✔ MagniVu high speed sampling offers timing resolution of 121 ps
Keysight X3000T-Series
Maximum record length 4 Mpoints with no analog channels on, 500 kpoints with analog channels on
Minimum detectable pulse 5ns
Channel-to-channel skew 2 ns typical
Digital channel sample rate of 1 GS/s gives 1 ns timing resolution
Long Record Length Navigation and Search
Tektronix 3 Series MDO
✔ 10 Mpoints record length on all channels, standard
✔ Intuitive waveform navigation pan/zoom easy scrolling through long records
Keysight X3000T-Series
Maximum 4 Mpoints record length
Limited navigation buttons and multiplexed horizontal controls
Spectrum Analyzer
Tektronix 3 Series MDO
✔ Flat frequency response, 9 kHz to 1 GHz ($1,500 value FREE) or 3 GHz (optional)
✔ Dedicated RF hardware with guaranteed RF specifications
✔ Intuitive on-screen controls for fast adjustments.
✔ Spectrogram display shows frequency and amplitude changes
MDO3000 does not provide synchronized time- and frequency-domain display
Oscilloscope

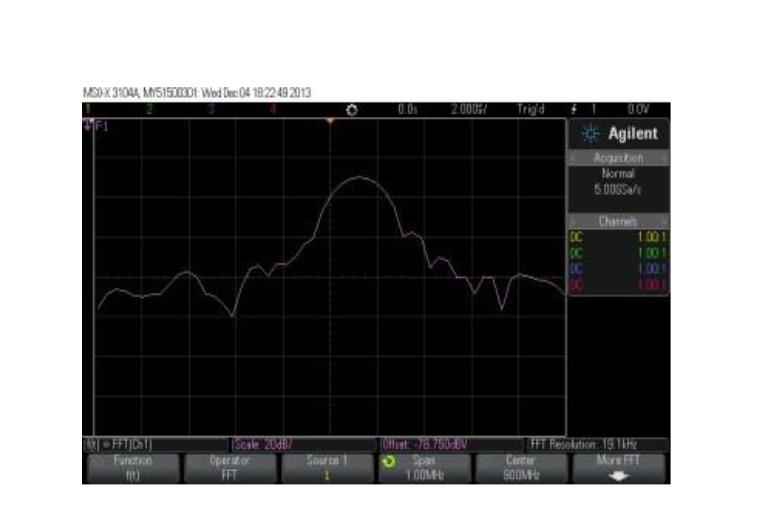

Keysight X3000T-Series
FFT amplitude is -3dB at analog channel bandwidth
Software based FFT, no specifications
Multiplexed front panel and menu controls for FFT
Spectrogram Display not available.
✔ Gated FFT display correlates the time and frequency domains.
Oscilloscope

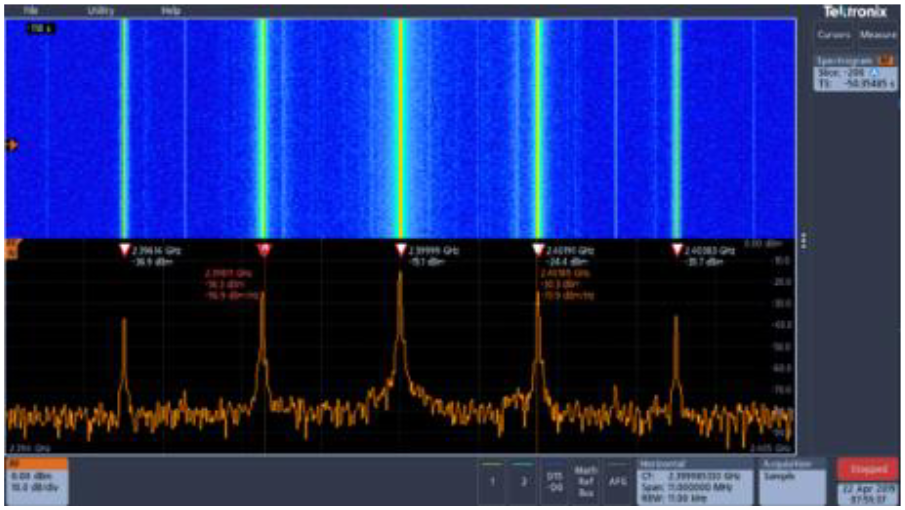

Spectrum display comparison, 3 Series MDO offers automatic markers and spectrogram display.
Arbitrary Waveform Generator
Tektronix 3 Series MDO
✔ Optional and upgradable
✔ Up to 50 MHz function generation, 13 predefined functions
✔ Arbitrary waveform generation with 128k waveform memory and 250 MS/s output rate
Keysight X3000T-Series
✔ Optional and upgradable
Up to 20 MHz function generation, 11 predefined functions
Arbitrary waveform generation with 8k waveform memory and 100 MS/s output rate
key features comparison key features comparison
price comparison price comparison

Find more valuable resources at TEK.COM


Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc. All other trade names referenced are the service marks, trademarks or registered trademarks of their respective companies.

07/2020 48W-61579-1
