PSPL5544 100 V Bias Tee Datasheet

PSPL5544 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5544 Datasheet

The PSPL5544 is an ultra-broadband, high-current, coaxial bias insertion tee and DC blocking capacitor. The high DC blocking voltage (100 V) and high bias current capability (2 A) make it an excellent choice for broadband measurements of power devices and circuits.

Key performance specifications
  • 50 kHz to 40 GHz
  • 8 ps rise time
  • 100 V, 2 A

Typical performance

The following figures show the linear sweep from 40 MHz to 50 GHz. The AC connector is the input (port 1) and the AC + DC connector is the output (port 2).

The following figure shows the S21 insertion loss.

PSPL5544-Datasheet--457775-9-N

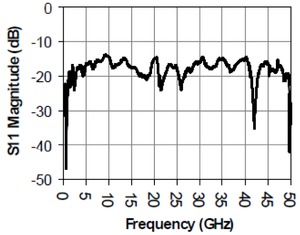

The following figure shows the S11 return loss.

PSPL5544-Datasheet--457775-10-N

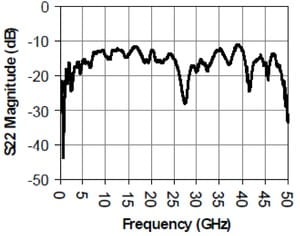

The following figure shows the S22 return loss.

PSPL5544-Datasheet--457775-11-N


Specifications

Parameter Symbol Units Minimum 1 Typical Maximum 1 Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz 40
Lower 3 dB frequency fc,l kHz   50
Rise time tr ps     10 – 90%
Insertion loss S21 dB   See plot Measured with open on DC port.
Input (AC), Return Loss S11 dB 10  See plot
Output (AC+DC), Return Loss S22 dB See plot
DC voltage V V     100
DC current I A
Capacitance C μF   0.2
Inductance L μH   100
Resistance R ohms   0.5
CW RF power P W     10
Isolation S13 dB   > 35    f > 100 MHz
DC path bandwidth fc,DC kHz   42
RF connectors 2.92 mm jacks (f)
Warranty One year

1*Maximum and minimum values are based on manufacturing test limits at 25 °C.

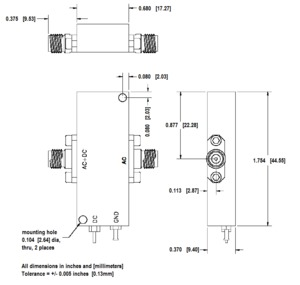

Mechanical dimensions
PSPL5544-Datasheet--457775-12-N

Ordering information

Models
PSPL5544
BIAS TEE, 100 V, 2 A
Options
PSPL5544 292JJ
2.92 mm connectors (f) on the AC and AC + DC ports, solder connection on the DC port
