P6900系列DDR存储器应用产品技术资料

Verification and debug of today's high speed, low voltage DDR Memory interface signals requires probing solutions that can accurately acquire from a wide variety of form factors and provide excellent signal fidelity. Tektronix logic analyzer probes contain a variety of connectivity options that are engineered to ensure that signal acquisition is a true reflection of your design's performance.

Key features
  • <0.7 pF total capacitive loading minimizes intrusion on circuits
  • 20 kΩ input resistance
  • 6.5 Vp-p dynamic range supports a broad range of logic families
  • General-purpose probing allows flexible attachment to industry- standard connections
  • Connectorless probing system eliminates need for onboard connectors
Applications
  • DDR3/DDR4 Debug and Verification
  • LPDDR Debug and Validation
  • Embedded Systems integration, debug, and verification

Leading probe solutions for real-time digital systems analysis

P6900 series probes

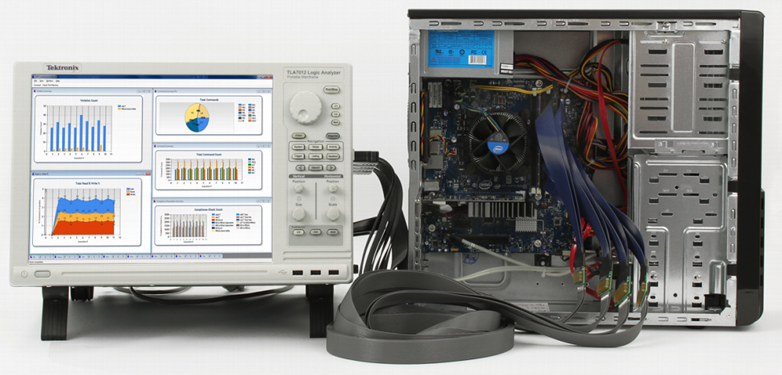

The DDR memory interface has evolved to support higher data rates at lower voltages creating several debug and validation challenges. With the industry's lowest capacitance, the P6900 specialty probes for DDR Memory applications offer excellent signal integrity to ensure a true representation of the signal - critical for connecting to high-speed memory interfaces and performing debug and analysis.

Probes with a variety of attachment mechanisms for different applications are available. Where circuit board space is at a premium, the high-density P6960DBL and P6962DBL probes with D-Max® Probing Technology offers the industry's smallest available footprint. For use with interposers, the P6960HCD, P6960HCD-LV and P6962HCD offer a low profile connection mechanism making it mechanically easy to use with the interposers. For low signal swing application the P6960HS based on the D-Max® Probing Technology is suitable.

For debugging the signal integrity problems common on high-speed DDR buses, the P6900 specialty probes for DDR applications work with the TLA7Bxx modules to provide iCapture™ simultaneous digital-analog acquisition. This allows you to clearly see the time-correlated digital and analog behavior of your design, without the extra capacitance and setup time of double probing.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview

Compatible with TLA7BBx and TLA7ACx modules

 P6960DBLP6962DBLP6960HSP6960HCDP6962HCDP6960HCD-LV
DataSingle-endedSingle-endedSingle-endedSingle-endedSingle-endedSingle-ended
ClockDifferentialSingle-ended
Number of input channels68 68 34 68 68 34
Attachment to target systemD-Max® probing technology compression cLGAD-Max® probing technology compression cLGAD-Max® probing technology compression cLGAHCD ConnectorHCD ConnectorHCD Connector
Probe specifications
Input resistance
P6960DBL, P6962DBL, P6960HS
11.7K kΩ to Ground (typical)
P6960HCD, P6962HCD, P6960HCD-LV
Tip resistor on the interposer + 75 Ω to 0.75 V (typ)
Input capacitance
P6960DBL, P6962DBL, P6960HS
<0.7 pF
P6960HCD, P6962HCD, P6960HCD-LV
Depends on the tip resistor on the Interposer used with the probe
Minimum digital swing
with TLA7BBx or TLA7ACx modules
P6960DBL, P6962DBLP6960HSP6960HCD, P6962HCD, P6960HCD-LV
200 mV single-ended100 mV single-ended150 mV single-ended
Analog bandwidth 1
With TLA7Bxx module

3 GHz through iCapture™ to analog out BNCs

1 Analog bandwidth is less with the flying lead set attached.

Operating range
P6960DBL, P6962DBL
-2 V to +5 V
P6960HS
-1 V to +2.5 V
P6960HCD, P6962HCD, P6960HCD-LV
0 V to 1.5 V (compatible with DDR3/DDR4)
Maximum nondestructive voltage
P6960DBL, P6962DBL
±15 V
P6960HS, P6960HCD, P6962HCD, P6960HCD-LV
±7.5 V

Ordering information

P6900 models
ModelDescription
P6960DBLSingle-ended 34-channel high-density connectorless with D-Max Probing Technology with double back end connectors to the Tektronix logic analyzer module for double probing the signals with a single probe head.
P6962DBLSingle-ended 34-channel high-density connectorless with D-Max Probing Technology, optimized for 2X Demux (half channel acquisition), with double back end connectors to the TLA logic analyzer module for double probing the signals.
P6960HCDSingle-ended 34-channel HCD connector to LAI with two full channel back-end connectors to the Tektronix logic analyzer module for double probing the signals with 0.75 V pull-up resistors.
P6962HCDSingle-ended 34-channel HCD connector to LAI with four 2X Demux (half channel acquisition) back-end connectors to the Tektronix logic analyzer module for double probing the signals.
P6962HCD-LVSingle-ended 34-channel HCD connector to LAI with two full channel back-end connectors to the Tektronix logic analyzer module for double probing the signals with 0.6 V pull-up resistors.
P6960HS34-channel, high-density connectorless, single-ended data, differential clock, higher sensitivity; for use with Tektronix logic analyzer modules.
Standard accessories
P6960DBL
335-1955-xx
Sheet of probe labels
020-2908-xx
Probe retention kit for D-Max® Probing Technology (contains 2 retention shrouds)
P6962DBL
335-1955-xx
Sheet of probe labels
020-2908-xx
Probe retention kit for D-Max® Probing Technology (contains 2 retention shrouds)
P6960HS
355-3009-xx
Sheet of probe labels
020-2908-xx
Probe retention kit for D-Max® Probing Technology (contains 2 retention shrouds)
P6960HCD
335-2069-xx
Sheet of probe labels
P6960HCD-LV
335-3012-xx
Sheet of probe labels


P6962HCD
335-2071-xx
Sheet of probe labels
Language options
Opt. L0
English manual
Opt. L99
No manual
ServiceOptions

Customers who choose a Tektronix product receive a support partnership focused on making the deployment and operation of their products successful. Tektronix support teams are committed to providing rapid response. A broad range of flexible services is available at the time of product purchase to meet customer service needs.

OptionDescription
CA1Single calibration event or coverage for the designated calibration interval, whichever comes first
C3Calibration Service, 3 Years
C5Calibration Service, 5 Years
R3Repair Service, 3 Years
R5Repair Service, 5 Years
R1PWRepair Service Coverage, 1-year Post Warranty
R2PWRepair Service Coverage, 2-years Post Warranty
R3DWRepair Service Coverage, 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
R5DWRepair Service Coverage, 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
Recommended accessories
P6960DBL
020-2910-xx (50 included)
Probe retention kit for D-Max Probing Technology
020-2539-xx
Post-style retention kit for D-Max Probing Technology
P6962DBL
020-2910-xx (50 included)
Probe retention kit for D-Max Probing Technology
020-2539-xx
Post-style retention kit for D-Max Probing Technology
P6960HS
020-2910-xx (50 included)
Probe retention kit for D-Max Probing Technology
020-2539-xx
Post-style retention kit for D-Max Probing Technology
