DPO7RFK1，DPO7RFK2，DPO7RFK3，DPO7RFC1，DPO7RFC2和DPO7RFC3信号路径解决方案产品技术资料
信号路径解决方案产品技术资料

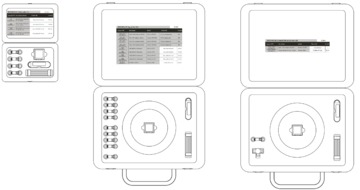

The DPO7RF Signal Path Solutions kits provide you with preconfigured kits of components you can use to optimize measurement performance in your ultra-high bandwidth applications. Kits include attenuators, adapters, DC Blocks, power divider, color marking bands, S-parameters, and documentation.
Key performance specifications
- 3 dB, 6 dB, 10 dB, 20 dB attenuators
- 65 GHz 1.85 mm male - 1.85 mm male adapter
- 40 GHz 1.85 mm male - 2.92 mm female adapter
- 40 GHz 1.85 mm female - 2.92 mm male adapter
- 40 GHz 1.85 mm female - 2.92 mm female adapter
- 65 GHz 1.85 mm female to female DC Block
- 65 GHz 1.85 mm female Power divider
- 70 GHz S-parameter files provided
Key features
- Kits and cables include S-parameter files and documentation on a USB memory stick
- Kits include signal path marking accessories
DPO7RFK1, 60 GHz RF attenuator kit, 1.85 mm
This kit provides (4) attenuators (3 dB, 6 dB, 10 dB, 20 dB) with 1.85 mm connectors, characterized to 70 GHz. This kit extends the input range of ATI channels from a maximum of 300 mV full scale to 420 mV, 600 mV, 950 mV, and 3 V respectively. S-parameter data specifically for each serial numbered attenuator is provided on a memory stick for de-embedding purposes using SDLA.
DPO7RFK2, 60 GHz RF signal path kit, 1.85 mm
This kit includes all elements of the attenuator kit plus 4 adapters and a DC Block. This kit covers the majority of signal path configurations found in high performance data comm and enterprise computing applications.
Adapters address conversion needs when routing 2.92 mm fixture connections to 1.85 mm ATI inputs. To remove DC levels from your signals, a DC Block is provided.
DPO7RFK3, 65 GHz RF channel timing de-skew kit, 1.85 mm
This kit includes a high performance power divider (65 GHz, 1.85 mm) and a 65 GHz, 1.85 mm male-male adapter. Use these components to perform channel timing de-skew using the final device under test (DUT) connection cables for device under test (DUT) connection. Having timing de-skewed with the final device connections ensures the most accurate measurements.
DPO7RFC1, 67 GHz matched cable pair, 1.85 mm, male-male, 24 inch
This kit provides a high performance set of 67 GHz, 24 inch Gore Phase - Flex cables (male-male) matched to ≤2 ps. Use these cables to facilitate timing de-skew and provide connection to a DUT. S-parameter data to 70 GHz is provided for de-embedding cable effects.
DPO7RFC2, 67 GHz phase-stable coaxial cable, 1.85 mm, male-male, 24 inch
A 67 GHz, 24 inch Gore Phase-Flex cable with 1.85 mm male connectors on both ends. S-parameter data to 70 GHz is provided for de-embedding cable effects.
DPO7RFC3, 67 GHz phase-stable coaxial cable, 1.85 mm, male-male, 36 inch
A 67 GHz, 36 inch Gore Phase-Flex cable with 1.85 mm male connectors on both ends. S-parameter data to 70 GHz is provided for de-embedding cable effects.
Specifications
Anritsu Gold Line attenuator specifications
| Model1 | Attenuation (dB) | Attenuation accuracy | SWR | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| DC- 18 GHz | 15 to 26.5 GHz | 26.5 -40 GHz | 40- 60 GHz | DC- 12 GHz | 12- 18 GHz | 18- 26.5 GHz | 26.5- 40 GHz | 40- 60 GHz | ||
| 41V-3 | 3 | ±0.5 | ±0.6 | ±0.9 | ±1.50 | ±1.15 | ±1.20 | ±1.30 | ±1.50 | ±1.90 |
| 41V-6 | 6 | ±0.5 | ±0.6 | ±0.9 | ±1.50 | ±1.15 | ±1.20 | ±1.25 | ±1.40 | ±1.90 |
| 41V-10 | 10 | ±0.5 | ±0.6 | ±0.9 | ±1.50 | ±1.15 | ±1.20 | ±1.25 | ±1.40 | ±1.90 |
| 41V-20 | 20 | ±0.5 | ±0.6 | ±0.9 | ±1.50 | ±1.15 | ±1.20 | ±1.25 | ±1.40 | ±1.90 |
- Temperature
- Operating temperature range
- -55 °C to +85 °C
- Temperature shock
- -55 °C to +150 °C
- Humidity
- 95% at 40 °C, 96 hours, test 103B, condition B
- Shock
- 100 G peak sawtooth, method 213, condition B
- Vibration
- Random: 50 Hz to 2000 Hz, 11.6 Grms, Power spectral density 0.1 Grms 2 Hz, method 214, test condition 1, letter D
- Salt spray
- 5% concentration for 48 hours, method 101D, condition B
- Voltage withstand
- 500 Vac RMS, 60 seconds, method 301
- Connectors
- V-Connector®
- Male and female compatible with 2.4 mm
DC Block
Model2 Frequency range Insertion loss Rise time Group delay Max DC voltage Max RF power Connectors V261 50 kHz to
65 GHz
<2.0 dB typical <5 ps typical 113±1 ps typical
16 V DC 1W RF in: V(m)RF out: V(f)
Coaxial adapters
Model3 Frequency range Connectors SWR 34VKF50 DC to 40 GHz V(m) to K(f) 1.12 34VFK50 DC to 40 GHz V(f) to K(m) 1.3 34VFKF50 DC to 40 GHz V(f) to K(f) 1.3 34VV50 DC to 65 GHz V(m) toV(m) 1.5
Power divider
Model Frequency range Impedance Connectors Maximum input power Temperature range V240C DC to 65 GHz 50 Ω V(f) 1W 0 °C to +70 °C Frequency range Tracking of outputs Insertion loss (max) SWR Amplitude Phase DC to 6 GHz ±0.3 dB ±2° 7 dB 1.22 6 to 18 GHz ±0.3 dB ±3° 7.5 dB 1.44 18 to 26.5 GHz ±0.6 dB ±4° 8 dB 1.58 26.5 to 40 GHz ±0.6 dB ±6° 8.5 dB 1.79 40 to 65 GHz ±0.8 dB ±18° 10 dB 3.11
1Usable to 70 GHz
2Specifications apply over the temperature range of 0 °C to +70 °C.
3Temperature range: -55 °C to +125 °C.
Ordering information
Models
- DPO7RFK1
- 3 dB, 6 dB, 10 dB, and 20 dB attenuator kit with 1.85 mm connectors, characterized to 70 GHz. Includes serial numbers and S-parameters for each attenuator.
- DPO7RFK2
- Includes the contents of the DPO7RFK1 plus a DC Block and 4 adapters for connecting to 1.85 and 2.92 mm fixtures.
- DPO7RFK3
- RF channel timing de-skew kit, 65 GHz, 1.85 mm. Kit includes a high performance power divider and 1.85 mm male-male adapter.
- DPO7RFC1
- Matched cable pair, 67 GHz, 1.85 mm, male-male, 24 inch, characterized to 70 GHz with provided S-parameters.
- DPO7RFC2
- Phase-stable coaxial cable, 67 GHz, 1.85 mm, male-male, 24 inch. Kit includes S-parameter data to 70 GHz.
- DPO7RFC3
- Phase-stable coaxial cable, 67 GHz, 1.85 mm, male-male, 36 inch. Kit includes S-parameter data to 70 GHz.
Standard accessories
| Kit | Quantity | Part number | Description |
|---|---|---|---|
| DPO7RFK1 | RF Attenuator kit | ||
| 1 | 050-3847-00 | 60 GHz, 3 dB V Fixed Atten W/Data | |
| 1 | 050-3848-00 | 60 GHz, 6 dB Fixed Atten W/Data | |
| 1 | 050-3849-00 | 60 GHz, 10 dB V Fixed Atten W/Data | |
| 1 | 050-3850-00 | 60 GHz, 20 dB V Fixed Atten W/Data | |
| 3 | 016-1948-00 | Marking band sets | |
| 1 | -- -- | Documentation memory stick |
| Kit | Quantity | Part number | Description |
|---|---|---|---|
| DPO7RFK2 | RF Signal Path kit | ||
| 1 | 050-3847-00 | 60 GHz, 3 dB V Fixed Atten W/Data | |
| 1 | 050-3848-00 | 60 GHz, 6 dB Fixed Atten W/Data | |
| 1 | 050-3849-00 | 60 GHz, 10 dB V Fixed Atten W/Data | |
| 1 | 050-3850-00 | 60 GHz, 20 dB V Fixed Atten W/Data | |
| 1 | 050-3852-00 | 65 GHz 1.85 mm male - 1.85 mm male adapter | |
| 1 | 050-3853-00 | 40 GHz 1.85 mm male - 2.92 mm female adapter | |
| 1 | 050-3854-00 | 40 GHz 1.85 mm female - 2.92 mm male adapter | |
| 1 | 050-3855-00 | 40 GHz 1.85 mm female - 2.92 mm female adapter | |
| 1 | 050-3851-00 | DC Block V(m-f) W/Data | |
| 6 | 016-1948-00 | Marking band sets | |
| 1 | -- -- | Documentation memory stick |
| Kit | Quantity | Part number | Description |
|---|---|---|---|
| DPO7RFK3 | RF Channel Timing and De-skew kit | ||
| 1 | 020-3175-00 | Power divider V (f) | |
| 1 | 050-3852-00 | 65 GHz 1.85 mm male - 1.85 mm male adapter | |
| 3 | 016-1948-00 | Marking band sets | |
| 1 | -- -- | Documentation memory stick |
DPO7RFC1, DPO7RFC2, and DPO7RFC3
| Kit | Quantity | Description |
|---|---|---|
| DPO7RFC1 | 1 | Phase-matched cable pair, 67 GHz, 1.85 mm, male-male, 24 inch |
| DPO7RFC2 | 1 | Phase-stable coaxial cable, 67 GHz, 1.85 mm, male-male, 24 inch |
| DPO7RFC3 | 1 | Phase-stable coaxial cable, 67 GHz, 1.85 mm, male-male, 36 inch |
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar. 55W-60895-2
