Digital Storage Oscilloscopes

TBS1000 Series Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

TBS1000-Digital-Storage-Oscilloscope-Datasheet
TBS1000 Series Datasheet

The TBS1000 Digital Storage Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features - including USB connectivity, 16 automated measurements, limit testing, data logging, and context-sensitive help - the TBS1000 Series oscilloscopes help you get more done, in less time.

Key performance specifications
  • 150 MHz, 100 MHz, and 60 MHz bandwidth models
  • 4-channel models
  • 1 GS/s sample rate on all channels
  • 2.5k point record length on all channels
  • Advanced triggers including pulse width trigger and line-selectable video trigger
Key features
  • 16 automated measurements, and FFT analysis for simplified waveform analysis
  • Built-in waveform limit testing
  • Automated, extended data logging feature
  • Autoset and signal auto-ranging
  • Built-in context-sensitive help
  • Probe check wizard
  • Multiple-language user interface
  • 5.7 in. (144 mm) Active TFT Color Display
  • Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb. (2 kg)
Connectivity
  • USB 2.0 host port on the front panel for quick and easy data storage
  • USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
  • Includes Tektronix OpenChoice® software for connecting your bench

Digital precision for accurate measurements

With up to 150 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. Tektronix proprietary sampling technology provides real-time sampling with the stated sampling rate on all channels, all the time to accurately capture your signals. Sampling performance is not reduced when using multiple channels.



TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-9-L



See all the details other oscilloscopes might miss with Tektronix proprietary digital real-time sampling

The TBS1000 Digital Oscilloscope Series is especially well suited to meet the needs of today's demanding measurement requirements. Packed with features and built-in tools, the TBS1000 is easy to learn and simple to operate - ideal for first-time oscilloscope users or experienced veterans. Featuring the same user interface as the Tektronix TDS Oscilloscope Family, when operating a TBS1000 you’ll be using the world's most popular oscilloscope platform, with over 500,000 oscilloscopes in operation worldwide.

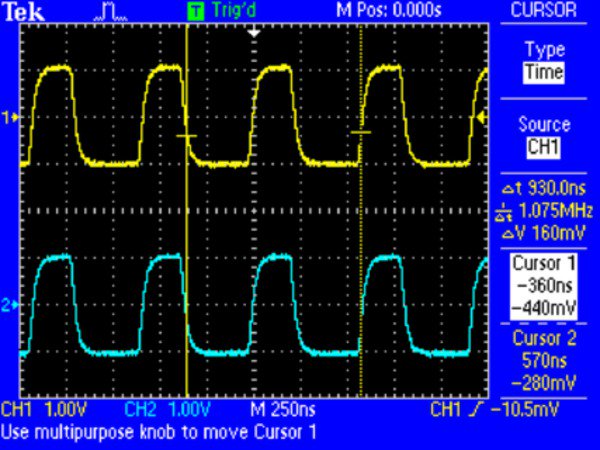

TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-10-L



Quickly and easily capture waveforms

To simplify integration with your existing curriculum, the TBS1000 also includes an Education Resource CD filled with tools to help beginners master the use of an oscilloscope. The TBS1000 offers the tools and performance you need at a price you can afford.

Critical tools for troubleshooting your device

Advanced triggers - rising/falling edge, pulse width, and video - help you quickly isolate your signals of interest. Once you've captured a signal, advanced math capabilities and automated measurements can speed your analysis. Quickly perform an FFT or add, subtract, or multiply waveforms. Sixteen automated measurements quickly and reliably calculate important signal characteristics such as frequency or rise time, while the built-in Limit Test function enables you to easily identify problems in your signal.



TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-11-L

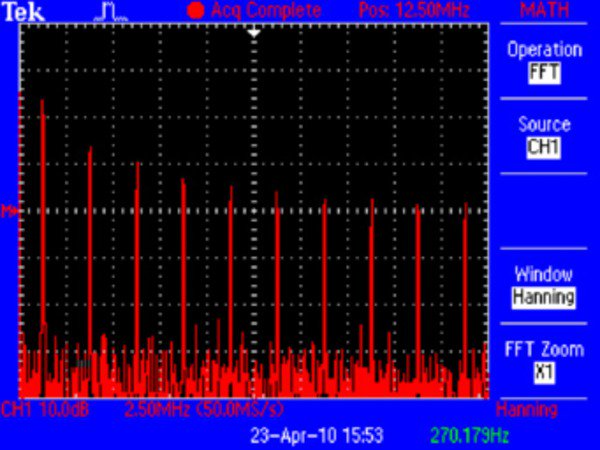

Quickly perform an FFT with the advanced math functions

Designed to make your work easy

The TBS1000 series oscilloscopes are designed with the ease of use and familiar operation you have come to expect from Tektronix.

Intuitive operation

The intuitive user interface with dedicated per-channel vertical controls, auto-setup, and auto-ranging makes these instruments easy to use, reducing learning time and increasing efficiency.

Help when you need it, where you need it


TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-12-L

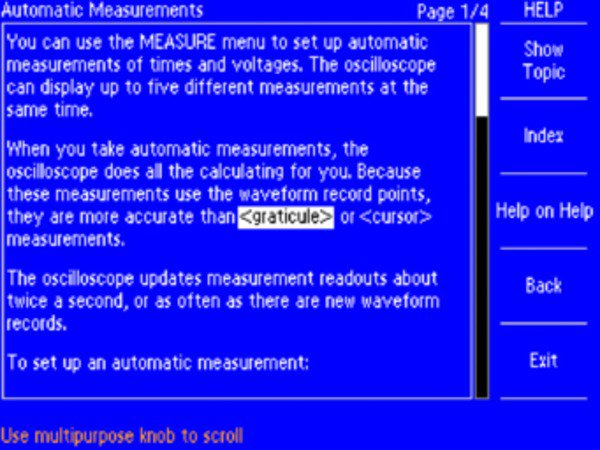

The context-sensitive help system provides important information specific to the task you are working on

The built-in Help menu provides you with important information on your oscilloscope's features and functions. Help is provided in the same languages as the user interface.

Probe check wizard

Check out your probe compensation before making measurements with just one button that starts a fast, easy procedure.

Limit test


TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-13-L

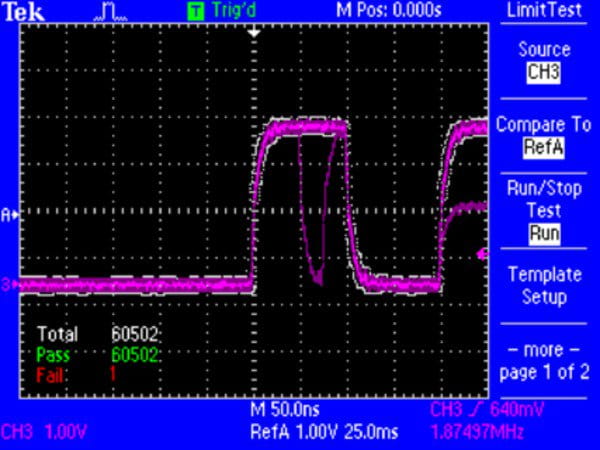

Limit test provides a quick Pass/Fail comparison of any triggered input signal to a user-defined template

The oscilloscope can automatically monitor source signals and output Pass or Fail results by judging whether the input waveform is within predefined boundaries. Specific actions can be triggered on violation including stopping waveform acquisition, stopping Limit Test functions, saving the failed waveform data or screen image to a USB memory device, or any combination of the above. This is an ideal solution for manufacturing or service applications where you need to make decisions quickly.

Flexible data transfer


TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-14-L

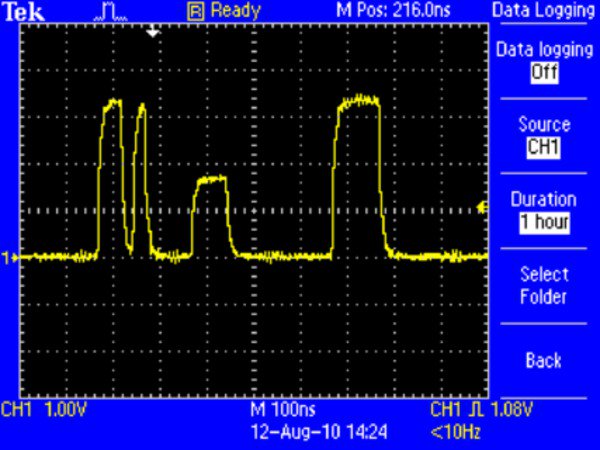

Data logging enables automatic saving of triggered waveforms

The USB host port on the front panel enables you to save your instrument settings, screenshots, and waveform data in a flash. The built-in Data Logging feature means you can set up your oscilloscope to save user-specified triggered waveforms to a USB memory device for up to 24 hours. You can also select the "Infinite" option for continuous waveform monitoring. With this mode you can save your triggered waveforms to an external USB memory device without a duration limitation until the memory device is full. The oscilloscope will then guide you to insert another USB memory device to continue saving waveforms.

Easy PC connectivity

Easily capture, save, and analyze measurements results by connecting to your PC with the rear-panel USB device port and the included copy of OpenChoice PC Communications Software. Simply pull screen images and waveform data into the stand-alone desktop application or directly into Microsoft Word and Excel. Alternatively, if you prefer not to use your PC, you can simply print your image directly to any PictBridge-compatible printer.



TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-15-L

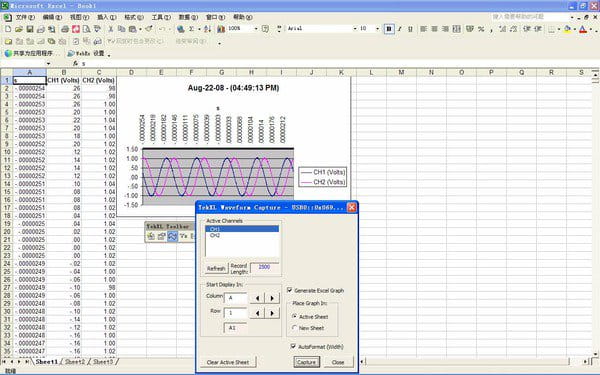

Easily capture, save and analyze measurement results with OpenChoice™ PC communications software

Performance you can count on

In addition to industry-leading service and support, every TBS1000 series oscilloscope comes backed with a 5-year warranty as standard.

Educational resources

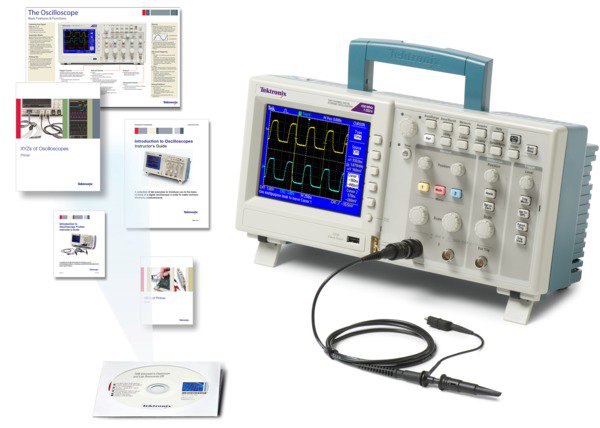

Every TBS1000 model includes an education resource CD filled with tools to help beginners master the use of an oscilloscope. The education resource CD includes two labs and instructor's guides, and two primers. TheIntroduction to Oscilloscopeslab and instructor's guide explains the basics of oscilloscope operation complete with hands-on exercises for classroom environments. TheIntroduction to Oscilloscope Probeslab and instructor's guide explains the fundamentals of probing and how probes can affect measurement quality. The two primers included are the most popular and widely-used from Tektronix - theXYZs of OscilloscopesandABCs of Probes.



TBS1000-Digital-Storage-Oscilloscope-Datasheet-EN_US-16-L



The included education resource CD is filled with tools to help beginners master the use of an oscilloscope.

Specifications

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

Model overview
  TBS1064 TBS1104 TBS1154
Bandwidth 1 60 MHz 100 MHz 150 MHz
Channels
Sample rate on each channel 1.0 GS/s 1.0 GS/s 1.0 GS/s
Record length 2.5k points at all time bases

1Bandwidth is 20 MHz at 2 mV/div

Vertical system — Analog channels
Vertical resolution
8 bits
Input sensitivity range
2 mV to 5 V/div on all models with calibrated fine adjustment
DC gain accuracy
±3%, from 10 mV/div to 5 V/div
Maximum input voltage
300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
Offset range

2 mV to 200 mV/div: ±1.8 V

>200 mV to 5 V/div: ±45 V

Bandwidth limit
20 MHz
Input coupling
AC, DC, GND
Input impedance
1 MΩ in parallel with 20 pF
Vertical zoom
Vertically expand or compress a live or stopped waveform
Horizontal system — Analog channels
Time base range
5 ns to 50 s/div
Time base accuracy
50 ppm
Horizontal zoom
Horizontally expand or compress a live or stopped waveform
Input/Output ports
USB interface
USB host port on front panel supports USB flash drives
USB device port on back of instrument supports connection to PC and all PictBridge®-compatible printers
GPIB interface
Optional
Data storage
Nonvolatile storage
Reference waveform display
2.5K point reference waveforms
Waveform storage without USB flash drive
2.5K point
Maximum USB flash drive size
64 GB
Waveform storage with USB flash drive
96 or more reference waveforms per 8 MB
Setups without USB flash drive
10 front-panel setups
Setups with USB flash drive
4000 or more front-panel setups per 8 MB
Screen images with USB flash drive
128 or more screen images per 8 MB (the number of images depends on file format selected)
Save All with USB flash drive
12 or more Save All operations per 8 MB

A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform)

Acquisition system
Acquisition modes
Peak Detect
High-frequency and random glitch capture. Captures glitches as narrow as 12 ns (typical) at all time base settings from 5 μs/div to 50 s/div
Sample
Sample data only
Average
Waveform averaged, selectable: 4, 16, 64, 128
Single Sequence
Use the Single Sequence button to capture a single triggered acquisition sequence
Roll
At acquisition time base settings of >100 ms/div
Trigger system
External trigger input
Included on all models
Trigger modes
Auto, Normal, Single Sequence
Trigger types
Edge (Rising/Falling)
Conventional level-driven trigger. Positive or negative slope on any channel. Coupling selections: AC, DC, Noise Reject, HF Reject, LF Reject
Video
Trigger on all lines or individual lines, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM)
Pulse Width (or Glitch)
Trigger on a pulse width less than, greater than, equal to, or not equal to, a selectable time limit ranging from 33 ns to 10 s
Trigger source
Four channel models: CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line
Trigger view
Displays trigger signal while Trigger View button is depressed.
Trigger signal frequency readout
Provides a frequency readout of the trigger source.
Waveform measurements
Cursors
Types
Amplitude, Time
Measurements
ΔT, 1/ΔT, ΔV
Automatic measurements
Period, Frequency, +Width, –Width, Rise Time, Fall Time, Max, Min, Peak-to-Peak, Mean, RMS, Cycle RMS, Cursor RMS, Duty Cycle, Phase, and Delay
Waveform math
Arithmetic
Add, Subtract, Multiply
Math functions
FFT
FFT
Windows: Hanning, Flat Top, Rectangular
2048 sample points
Sources
CH1 – CH2, CH2 – CH1, CH1 + CH2, CH1 × CH2, CH3 – CH4, CH4 – CH3, CH3 + CH4, CH3 × CH4
Autoset



Autoset menu
Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo Autoset
Square wave
Single Cycle, Multicycle, Rising or Falling Edge
Sine wave
Single Cycle, Multicycle, FFT Spectrum
Video (NTSC, PAL, SECAM)
Field: All, Odd, or Even
Line: All or Selectable Line Number
Autorange

Automatically adjust vertical and/or horizontal oscilloscope settings when probe is moved from point to point, or when the signal exhibits large changes.
Display system
Interpolation
Sin (x)/x
Waveform styles
Dots, vectors
Persistence
Off, 1 s, 2 s, 5 s, infinite
Format
YT and XY
Physical characteristics
Dimensions
Height
158.0 mm (6.22 in)
Width
326.3 mm (12.85 in)
Depth
124.2 in (4.89 in)
Shipping dimensions
Height
266.7 mm (10.5 in)
Width
476.2 mm (18.75 in)
Depth
228.6 mm (9.0 in)
Weight
Instrument only
2.0 kg (4.4 lbs)
... with accessories
2.2 kg (4.9 lbs)
RM2000B rackmount
Width
482.6 mm (19.0 in)
Height
177.8 mm (7.0 in)
Depth
108.0 mm (4.25 in)
Environmental
Temperature
Operating
0 to +50 ºC
Nonoperating
–40 to +71 ºC
Humidity
Operating and nonoperating

Up to 85% RH at or below +40 ºC

Up to 45% RH up to +50 ºC

Altitude
Operating and nonoperating
Up to 3,000 m (9,843 ft.)
Regulatory
Electromagnetic compatibility
Meets Directive 2004/108/EC, EN 61326-2-1 Class A; Australian EMC Framework
Safety
UL61010-1:2004, CSA22.2 No. 61010-1:2004, EN61010-1:2001, IEC61010-1:2001

Ordering information

Models
TBS1064
60 MHz, 4 Ch, 1 GS/s, TFT DSO
TBS1104
100 MHz, 4 Ch, 1 GS/s, TFT DSO
TBS1154
150 MHz, 4 ch, 1 GS/s, TFT DSO
Language options

Translated front-panel overlays included with their respective user manuals.1

Language Description
L0 English (front-panel overlay on instrument)
L1 French (front-panel overlay)
L2 Italian (front-panel overlay)
L3 German (front-panel overlay)
L4 Spanish (front-panel overlay)
L5 Japanese (front-panel overlay)
L6 Portuguese (front-panel overlay)
L7 Simple Chinese (front-panel overlay)
L8 Standard Chinese (front-panel overlay)
L9 Korean (front-panel overlay)
L10 Russian (front-panel overlay)

1User manuals (PDF) in 11 languages are available on the CD and for download from www.tek.com . There are no printed user manuals.

Power plug options
Opt. A0
North America power plug (115 V, 60 Hz)
Opt. A1
Universal Euro power plug (220 V, 50 Hz)
Opt. A2
United Kingdom power plug (240 V, 50 Hz)
Opt. A3
Australia power plug (240 V, 50 Hz)
Opt. A5
Switzerland power plug (220 V, 50 Hz)
Opt. A6
Japan power plug (100 V, 50/60 Hz)
Opt. A10
China power plug (50 Hz)
Opt. A11
India power plug (50 Hz)
Opt. A12
Brazil power plug (60 Hz)
Opt. A99
No power cord
Service options
Opt. D1
Calibration Data Report

Probes and accessories are not covered by the oscilloscope warranty and Service Offerings. Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms.

Standard accessories
Accessory Description
Passive probes, one per channel TPP0101: 100 MHz passive probe for: TBS1064
TPP0201: 200 MHz passive probe for: TBS1104 and TBS1154
Power cord (Please specify plug option)
NIM/NIST Traceable certificate of calibration
Printed documentation Installation and safety manual
(English, Japanese, and Simplified Chinese)
CD with customer documentation and OpenChoice PC communications software Customer documentation including detailed user manuals (English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish, Traditional Chinese)
Software for fast and easy communication between an MS Windows PC and the TBS1000 series using USB to transfer and save settings, waveforms, measurements, and screen images
Educators Classroom and Lab Resource CD Contains lab experiments and primers for both oscilloscopes and probes
5-year warranty Covers labor and parts for defects in materials and workmanship for 5 years, excluding probes and accessories (probes and accessories are not covered by the oscilloscope warranty and service offerings. refer to the data sheet of each probe and accessory model for its unique warranty and calibration terms)
Recommended accessories
Accessory Description
TEK-USB-488  GPIB-to-USB converter
AC2100 Soft carrying case for instrument
HCTEK4321 Hard plastic carrying case for instrument (requires AC2100)
RM2000B Rackmount kit
077-0444-xx Programmer manual – English only
077-0772-xx Service manual – English only
174-4401-xx USB host to device cable, 3 ft. long
Recommended probes
Probe Description
TPP0101 10X passive probe, 100 MHz bandwidth
TPP0201 10X passive probe, 200 MHz bandwidth
P2220 1X/10X passive probe, 200 MHz bandwidth
P6101B 1X passive probe (15 MHz, 300 VRMS CAT II rating)
P6015A 1000X high-voltage passive probe (75 MHz)
P5100A 100X high-voltage passive probe (500 MHz)
P5200A 50 MHz, 50X/500X high-voltage differential probe
P6021A 15 A, 60 MHz AC current probe
P6022 6 A, 120 MHz AC current probe
A621 2000 A, 5 to 50 kHz AC current probe
A622 100 A, 100 kHz AC/DC current probe/BNC
TCP303/TCPA300 150 A, 15 MHz AC/DC current probe/amplifier
TCP305A/TCPA300 50 A, 50 MHz AC/DC current probe/amplifier
TCP312A/TCPA300 30 A, 100 MHz AC/DC current probe/amplifier
TCP404XL/TCPA400 500 A, 2 MHz AC/DC current probe/amplifier
