PSPL5575A 12 GHz Bias Tee Datasheet

PSPL5575A Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5575A Datasheet

The PSPL5575A is a broadband coaxial bias insertion tee and DC blocking capacitor designed to pass fast rise pulses with minimum waveform distortion. The rise time is 30 ps with a -3 dB bandwidth extending from 10 kHz to 12 GHz. The PSPL5575A will safely carry 500 mA of DC current. However, core saturation limits the low frequency response at DC currents above 20 mA.

Key performance specifications
  • 10 kHz to 12 GHz
  • 30 ps rise time
  • 50 V, 500 mA

Typical performance


PSPL5575A-Datasheet-709103-9-N

1 db/div and 2 GHz/div Insertion Loss



PSPL5575A-Datasheet-709103-10-N

5 dB/div and 2 GHz/div Return Loss



PSPL5575A-Datasheet-709103-11-N

10 dB/div and 2 GHz/div Isolation (AC-DC)



PSPL5575A-Datasheet-709103-12-N

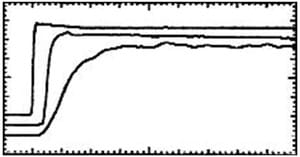

Top to bottom: 500 ps/div, 100 ps/div, and 20 ps/div; 10 ps Step Response



PSPL5575A-Datasheet-709103-13-N

2.5% rho/div and 200 ps/div; 35 ps TDR of AC port.


Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz 10  12
Lower 3 dB frequency fc,l kHz   10
Rise time tr ps   30  35  10 – 90%
Insertion loss S21 dB   0.6    0.01 – 3 GHz
Input (AC), Return Loss S11 dB RL > 18 dB – 1.2 dB / GHz * f (GHz) 0.1
Refl. Coefficient (35 ps TDR) Γ %   ±5
-6
  t ≤ 100 ps
t > 100 ps
DC voltage V V     50
DC current I mA     500
Capacitance C μF   0.02    - 50%, + 80%
Inductance L mH     ±30%
Resistance R ohms   0.6
RF power P W     3.5  Average power
Isolation S13 dB   ≥30
DC path bandwidth fc,DC kHz   10
Core Saturation
(-3 dB low freq.)
fc,lsat kHz
≤10
70
300
  DC Current
100 mA
500 mA
RF Connectors SMA jacks (f)
DC Connector SMA jack (f)
Warranty One Year



Mechanical dimensions


PSPL5575A-Datasheet-709103-14-N

Dimensions in inches; Tolerances: .XX = 0.01, .XXX = 0.05


Ordering information

Models
PSPL5575A
BIAS TEE, 12 GHz, 50 V
