PSPL5546 7 GHz Bias Tee

PSPL5546 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5546 Datasheet

The PSPL5546 is a broadband, coaxial bias insertion tee and DC blocking capacitor. It was designed to have a very low cutoff frequency of only 3.5 kHz. It passes fast rise pulses with a minimum of waveform distortion. Its rise time is 45 ps. The frequency response is very flat, and the -3 dB bandwidth extends from 3.5 kHz to 7 GHz. The PSPL5546 is supplied with a 1 mH choke and terminal strip for connection to the DC bias.

Key performance specifications
  • 3.5 kHz to 7 GHz
  • 45 ps rise time
  • 50 V, 500 mA

Typical performance

PSPL5546-Datasheet-803753-9-N

1 db/div log plot to 10  GHz Insertion Loss

PSPL5546-Datasheet-803753-10-N

1 db/div log plot to 10  GHz Insertion Loss

PSPL5546-Datasheet-803753-11-N

5 dB/div log plot to 10 GHz Return Los


PSPL5546-Datasheet-803753-12-N

Top to bottom: 1 ns/div, 200 ps/div, and 50 ps/div. Response to 20 ps rise time input step



PSPL5546-Datasheet-803753-13-N

2.5% rho/div and 200 ps/div. 35 ps rise time input step

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz
Lower 3 dB frequency fc,l kHz   3.5
Rise time tr ps   45  75  10 – 90%
Insertion loss S21 dB   0.5
Input (AC)
Return Loss
S11 dB   23    f = 100 MHz
Refl. Coefficient (35 ps TDR) Γ %   -5    t > 200 ps
DC voltage V Volts     50
DC current I mA     500
Capacitance C μF   0.9    - 50%, + 80%
Inductance L mH   1.34    +/- 30% 1
Resistance R ohms   1.5
RF power P W     Average power
Isolation S13 dB   30
DC path bandwidth fc,DC kHz   4.5
RF Connectors SMA jacks (f)
DC Connector Solder pin
Warranty One Year

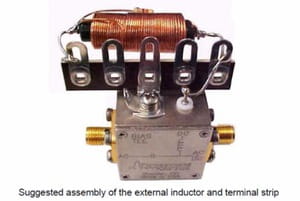

1 A 1 mH choke is supplied with the bias tee. It is to be wired in series directly to the DC in solder terminal on the coax module. This is a high impedance point. Avoid using long wire, especially coax, for this connection. Do not locate the choke close to ground. Excessive stray capacitance will cause a resonance that will appear as a dip in the insertion loss between 1 and 10 MHz.

Mechanical dimensions

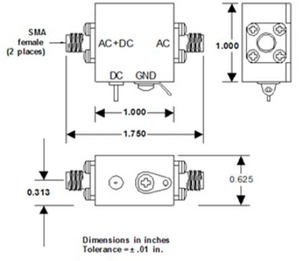

PSPL5546-Datasheet-803753-14-N

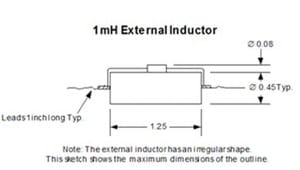

PSPL5546-Datasheet-803753-15-N

PSPL5546-Datasheet-803753-16-N

Ordering information

Models
PSPL5546
BIAS TEE, 7 GHz, 50 V
