PSPL5545 20 GHz Bias Tee Datasheet

PSPL5545 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5545 Datasheet

The PSPL5545 Bias Tee and DC Block is a broadband, coaxial bias insertion tee and DC blocking capacitor. It passes fast rise pulses with a minimum of waveform distortion. The rise time is 12 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 65 kHz to 20 GHz.

Key performance specifications
  • 65 kHz to 20 GHz
  • 12 ps rise time
  • 100 V, 500 mA

Typical performance

The following figure shows the S21 insertion loss at 0.5 dB/div.

PSPL5545-Datasheet-754956-9-N

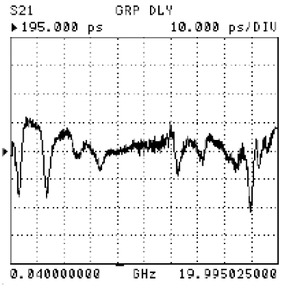

The following figure shows the S21 group delay at 10 ps/div.

PSPL5545-Datasheet-754956-10-N

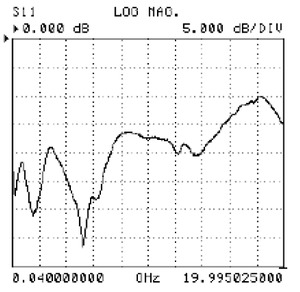

The following figure shows the S11 return loss at 5 dB/div.

PSPL5545-Datasheet-754956-11-N



The following figures show the linear sweep from 40 MHz to 20 GHz at 2 GHz/div.

PSPL5545-Datasheet-754956-12-N

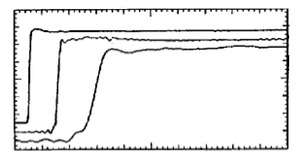

500 ps/div, 100 ps/div, and 20 ps/div, 10 ps Step Response



PSPL5545-Datasheet-754956-13-N

2.5% rho/div and 500 ps/div, 35 ps TDR

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz   >20  1
Lower 3 dB frequency fc,l kHz   65
Rise time tr ps   12    10 – 90%
Insertion loss S21 dB   0.7

1.5

f < 5 GHz
f < 12 GHz
Input (AC)
Return Loss
S11 dB   23
>20
>12
  f = 100 MHz
f < 6 GHz
f < 14 GHz
Refl. Coefficient (35 ps TDR) Γ %   -7    t > 1 ns
DC voltage V V     50
DC current I mA     500
Capacitance C μF   0.03    ±20%
Inductance L μH   340    ±20%
Resistance R ohms   1.1
RF power P W     Average power
Isolation S13 dB   >25
DC path bandwidth fc,DC kHz   37
Delay Td ps   195
RF Connectors SMA jacks (f)
DC Connector Solder pin
Warranty One year

1 Not recommended for freq. domain applications above 15 GHz due to higher order mode resonances.

Ordering information

Models
PSPL5545
BIAS TEE, 20 GHz, 50 V
