PSPL5542K Kelvin Bias Tee Datasheet

PSPL5542K Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5542K Datasheet

The PSPL5542K is an ultra-broadband, coaxial dual bias insertion tee and DC blocking capacitor. It passes ultra-fast rise pulses with a minimum of waveform distortion. Its rise time is only 7 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 12 kHz to beyond 40 GHz. The 2.92 mm connector is mechanically and electrically compatible with SMA and 3.5 mm connectors. Both biasing networks are connected to the AC+DC Port. This bias tee is intended for Kelvin measurements in which a DC bias current is supplied through one biasing network, and the DC voltage is measured using the other. It is packaged in an extremely compact housing.

Key performance specifications
  • 12 kHz to >40 GHz
  • 7 ps rise time
  • 16 V, 100 mA

Typical performance

In the following plots, the Linear sweep is from 0.04 to 40 GHz (4 GHz/div), the AC connector is input (port 1), and the AC+DC connector is output (port 2).

PSPL5542K-Datasheet--350628-9-N

Insertion Loss, S21

PSPL5542K-Datasheet--350628-10-N

Group Delay, S21

PSPL5542K-Datasheet--350628-11-N

Return Loss, S11

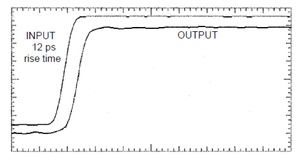

PSPL5542K-Datasheet--350628-12-N

Step Response, 20 ps/div



PSPL5542K-Datasheet--350628-13-N

2% rho/div, 100 ps/div; 25 ps TDR of AC input port



PSPL5542K-Datasheet--350628-14-N

Log sweep from 10 kHz to 50 GHz. Insertion loss scale is 0.5 dB/div. Return loss scale is 5 dB/div

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z ohms   50
Upper 3 dB frequency fc,h GHz 40
Lower 3 dB frequency fc,l kHz   12
Rise time tr ps     10 – 90%
Insertion loss S21 dB   0.2    Mid-band
Return loss S11 dB   >20
>13
  1 MHz to 4 GHz
DC voltage V V     16
DC current I mA     100  Each path
Capacitance C μF   0.22    -50%, +80%
Inductance L mH   1.5    +/-20% each path
Resistance R ohms   5.6    Each path
RF power P W     Avg.,
f
Isolation S13 dB   >50    f > 100 MHz
DC path bandwidth fc,DC kHz
Delay Td ps   140    AC to AC+DC port
RF Connectors 2.9 mm jacks (f)
DC Connectors Solder pin
Warranty One year



Mechanical dimensions
PSPL5542K-Datasheet--350628-15-N

Ordering information

Models
PSPL5542K
KELVIN BIAS TEE
