PSPL5315 17 GHz差分脉冲分配器产品技术资料

PSPL5315产品技术资料

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5315产品技术资料

The PSPL5315 BALUN is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input, while the other output is inverted in polarity. The PSPL5315 BALUN has a very fast 21 ps rise time and a bandwidth of 17 GHz. One application of the PSPL5315 is to provide push-pull, balanced drive signals for the deflection plates of ultra-wideband, traveling-wave oscilloscopes.

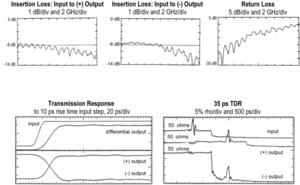

Typical performance

PSPL5315-Datasheet--617886-10-N

Specifications

Parameter 1 Value
Rise time (10%-90%) 21 ps typical, 25 ps max.
Bandwidth (-3 dB) 17 GHz typical
Low Frequency Cutoff 200 kHz (-3 dB)
Insertion Loss 8 dB, nominal
Impedance 50 Ω
Refl. Coeff. (35 ps TDR)
Input
(+) output
(-) input
-4%, t > 1 ns
-4%, t > 3 ns
-15%, t > 2 ns
Return Loss 0.1  20 dB -2.5 dB/GHz*f (GHz)
2  15 dB -1.25 dB/GHz*f (GHz)
Sag Time Constant 800 ns (1/e)
Delay 0.9 ns
Diff. Delay Balance (step response) ±2 ps max.
Diff. Balance (step response) 1 ns
Max. Input 0.75 Watts
Connectors SMA jacks (f)
Weight 0.5 lbs. (0.2 kg)
Dimensions 6 in x 3.7 in x 1.1 in (15 cm x 9.4 cm x 2.8 cm)
Warranty One year

1 All parameters listed are typical unless max/min guaranteed limits are provided. Due to internal reflections, the PSPL5315 is NOT recommended for use with gigabit logic signals nor in a differential network analyzer.

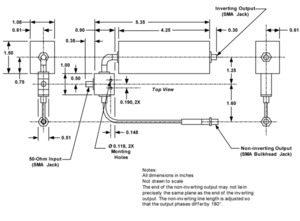

Mechanical dimensions
PSPL5315-Datasheet--617886-11-N

Ordering information

Models
PSPL5315
Diff pulse splitter-Balun, SMA J-J-J
