PSPL5310R Phase-Matched Balun Datasheet

PSPL5310R Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5310R Datasheet

The PSPL5310R Phase-Matched Balun is a broadband differential pulse splitter. A signal fed into the 50 Ω input is split equally into two 50 Ω outputs. One output is the same polarity as the input while the other is inverted in polarity. The PSPL5310R uses proprietary technology that provides exceptional phase and amplitude matching. Popular uses for the PSPL5310R are in Analog-Digital-Converter (ADC) and differential Test & Measurement applications.

Key performance specifications
  • Excellent Phase and Amplitude Balance from 100 MHz to 4 GHz

  • Operating range 4 MHz to 6.5 GHz
  • Designed for use with ADCs
  • Maximum input power > +20 dBm

Typical performance

PSPL5310-Datasheet-452542-9-N

Response to 2 Gb/s NRZ signal with 27-1 PRBS pattern

PSPL5310-Datasheet-452542-10-N

PSPL5310-Datasheet-452542-11-N

PSPL5310-Datasheet-452542-12-N

Specifications

Parameter Test Condition Minimum Typical Maximum
Risetime 10% to 90%   54 ps
Bandwidth -3 dB   6.5 GHz
Low Frequency Cutoff -3 dB   4 MHz
Insertion Loss 100 MHz
1 GHz
2 GHz
3 GHz
  6.9 dB
6.9 dB
7.1 dB
7.6 dB
7.1 dB
7.3 dB
7.7 dB
8.1 dB
Impedance     50 Ohms
Return Loss
Input
Non-Inverting Output
Inverting Output
100 MHz – 2 GHz
-30 dB
-30 dB
-15 dB

-25 dB
-18 dB
-10 dB
Delay     320 ps
Differential Amplitude
Balance
100 MHz – 3.0 GHz   ±0.1 dB +0.3 dB
-0.2 dB
Differential Phase
Balance
500 MHz – 2.0 GHz   ±0.5 degree ±2 degrees
Maximum Input 100 MHz +20 dBm
Connectors SMA jacks (f)
Weight 1.4 oz. (40 grams)
Temperature Range 0 to +70 °C operating, -40 to +125 °C storage
Warranty One Year

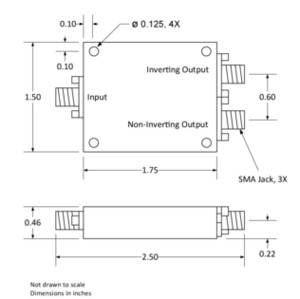

Mechanical dimensions
PSPL5310-Datasheet-452542-13-N

Ordering information

Models
PSPL5310R
Phase-Matched Balun
