Automotive Ethernet Test Application

Multigigabit Ethernet (Opt. AUTOEN10G), 1000/100BASE-T1 (Opt. BRR), 10BASE-T1S (Opt. AUTON10) Datasheet

Multigigabit Ethernet (Opt. AUTOEN10G), 1000/100BASE-T1 (Opt. BRR), 10BASE-T1S (Opt. AUTON10) Datasheet

Tektronix options AUTOEN10G (MultiGBASE-T1), BRR (100BASE-T1/1000BASE-T1) and AUTOEN10 (10BASE-T1S) comprise the most comprehensive solution for Automotive Ethernet transmitter compliance testing, as well as debug and validation of Automotive Ethernet devices and ECU's, against the IEEE and Open Alliance specifications. The test suite runs on the MSO/DPO70000DX and DPO70000SX, letting you take full advantage of validation and debug capabilities in the oscilloscope, in addition to compliance testing. The integration of Automotive Ethernet is placing greater demands on technology and is placing even greater demands on comprehensive design validation to ensure interoperability between multiple ECU's and reliability in demanding environments. A complete testing solution enables passing strict compliance tests and provides greater confidence in design margins under real-world conditions.

The Tektronix Automotive Ethernet application allows you to select the reference specification, and the test plan depending on the selected specification and currently supports the following data rates and standards:

  • 10BASE-T1S as per IEEE 802.3cg and OPEN Alliance TC14.
  • 100BASE-T1 as per IEEE 802.3bw and OPEN Alliance TC1.
  • 1000BASE-T1 as per IEEE 802.3bp and OPEN Alliance TC12.
  • 2.5/5/10GBASE-T1 as per IEEE 802.3ch and OPEN Alliance TC15 1

Features and benefits

Test coverage:Tektronix Automotive Ethernet application covers transmitter compliance tests for 100BASE-T1 (IEEE 802.3bw), 1000BASE-T1 (IEEE 802.3bp), MultiGBASE-T1 (IEEE 802.3ch), and 10BASE-T1S (IEEE 802.3cg) standards through a single Automotive Ethernet compliance application. The application uses the TekExpress automation framework and tests as per IEEE and Open Alliance specification for Tektronix DPO70000 SX/DX and MSO's.

Test time: Fully automated with setup wizard, configures all required test parameters to perform compliance testing as per Automotive Ethernet standards. Highly optimized and intuitive user interface for quick test configuration and validation of electrical signals.

Accuracy:The application runs on Tektronix DPO70000 SX/DX series oscilloscopes for accurate and repeatable results.

Pattern matching: Verifies that the correct set of compliance patterns are sent by the transmitter before acquiring signals for compliance analysis.

Reporting: Compiles all test results into a customizable report with pass/fail results for easy analysis and record keeping, as well as margin testing.

Compliance and debug: Provides a toolkit of DPOJET based setups to quickly switch into debug and validation mode when a DUT fails compliance.

Analysis and debug tools: Supporting tools, such as TekExpress user defined Mode, advanced DPOJET jitter analysis (Opt. DJA), PAM4 Eye Diagram Analysis (Opt. PAM4) tools help to catch problems before compliance testing, or root-cause the problem in the event of a failure.

Performance verification: The Automotive Ethernet application allows you to run a test multiple times and save or stop acquisitions in the event of an out-of-limit condition. The report shows statistics with pass/fail results for each run to show device performance over multiple runs.

PHY level protocol decode: Opt. SR-AUTOETH1 decodes and displays 100BASE-T1 data in a protocol-aware view. A time-correlated event table view with waveforms allow you to quickly search through decoded data for events of interest.

Comprehensive programmatic interface: Enables automation programs and scripts to call Automotive Ethernet test functions.

Automated Automotive Ethernet compliance application

Physical layer compliance tests have been defined to ensure the interoperability between different designs and hardware vendors. Tektronix Automotive Ethernet compliance testing application provides the most comprehensive solution to serve the need of engineers designing Automotive Ethernet silicon or electronic control units (ECU's), as well as those validating physical layer compliance of Automotive Ethernet as per IEEE or Open Alliance specifications.

10BASE-T1S100BASE-T11000BASE-T1SMultiGBASE-T1
IEEE Specification802.3cg802.3bw802.3bp802.3ch
Data rate10 Mbps100 Mbps1 Gbps2.5/5/10 Gbps
Symbol rate12.5 MHz66.66 MHz750 MHz1.4/2.8/5.6 GHz
Line coding4B/5B, DMEPAM3PAM3PAM4
Voltage1 Vpp2.2 Vpp1.3 Vpp1.3 Vpp
CommunicationHalf DuplexFull DuplexFull DuplexFull Duplex

Industry defined testing for Automotive Ethernet

The IEEE and Open Alliance provide compliance tests for an Automotive Ethernet PHY or ECU. As per the IEEE and Open Alliance, we have the following compliance requirements for Physical Media Attachment (PMA) transmitter test for an Automotive Ethernet PHY or ECU.

Test name

100BASET1 IEEE 802.3 bw

ECU TC8 100/1000B ASE-T1

1000BASE -T1 IEEE 802.3 bp

MultiGBA SE-T1 IEEE 802.3 ch

Transmitter output Droop

96.5.4.1

OABR_PM A_TX_01

97.5.3.1149.5.2.1

Transmitter Distortion

96.5.4.2

OABR_PM A_TX_08

97.5.3.2NA

Transmitter Linearity

NANANA149.5.2.2

Transmitter Timing Jitter in Master/Slave Mode

96.5.4.3

OABR_PM A_TX_02

97.5.3.3149.5.2.3

Transmitter MDI Jitter

NANA97.5.3.3NA

Tx MDI Random Jitter (Master)

NANANA

149.5.2.3.1

Tx MDI Deterministic Jitter (Master)

NANANA

149.5.2.3.2

Transmitter Power Spectral Density (PSD)

96.5.4.4

OABR_PM A_TX_04

97.5.3.4149.5.2.4

Transmit Clock Frequency

96.5.6

OABR_PM A_TX_03

97.5.3.6149.5.2.6

Transmitter Peak Differential Output

96.5.4.5NA97.5.3.5149.5.2.5
MDI Return Loss96.8.2.1

OABR_PM A_TX_05

97.7.2.1149.8.2.1

MDI Mode Conversion

NA

OABR_PM A_TX_06

NANA

Common Mode Emission

NA

Only 100BASET1

NANA

Each test requires the engineer to set the required test mode, acquire waveforms with the correct instrument settings, and analyze the results per the standard. Manually capturing and analyzing them is tedious, time consuming, and subject to errors.

The TekExpress Automotive Ethernet compliance application allows you to automatically execute physical layer electrical tests for transmitter compliance using IEEE and/or Open Alliance (OABR) specifications. The Tektronix Opt. BRR and AUTOEN10G applications combine to form a TekExpressTM compliance automation solution for 100BASE-T1, 1000BASE-T1 and MultiGBASE-T1 Automotive Ethernet with a single user interface. The TekExpress Automotive Ethernet application is configured by following a step-bystep process. The application sets up the oscilloscope and automates testing, guiding you to accurate and repeatable results.

MultiGBASE-T1 PMA transmitter compliance measurements

MultiGBASE-T1 is specified in IEEE 802.3ch, an extension to BASE-T1 PHYs at speeds in excess of 1000 Mb/s, including 2.5GBASE-T1, 5GBASE-T1, and 10GBASE-T1. The physical layer operates over a single pair of shielded cable in full-duplex mode with four level pulse amplitude modulation (PAM4).

MultiGBASE-T1 PMA transmitter measurements
Test specificationTest modePattern typeInstrument
Tx Output Droop6Oscilloscope
Tx Linearity4PAM4Oscilloscope
Tx Timing Jitter (Master and Slave)1ClockOscilloscope
Tx MDI Random Jitter (Master Mode)2SquareOscilloscope
Tx MDI Deterministic Jitter (Master Mode)2JP03AOscilloscope
Even Odd Jitter (EOJ)2JP03BOscilloscope
Tx Power Spectral Density and Power level5PAM4Oscilloscope
Tx Clock Frequency 1ClockOscilloscope
Tx Peak Differential Output5PAM4Oscilloscope
MDI Return LossSlaveVNA
1000BASE-T1 PMA transmitter measurements
Test specificationTest modePattern typeInstrument
Tx Output Droop6Oscilloscope
Tx Distortion4PAM3Oscilloscope
Tx Timing Jitter (Master and Slave)1ClockOscilloscope
Tx MDI Jitter2ClockOscilloscope
Tx Power Spectral Density and Power level5PAM3Oscilloscope
Tx Clock Frequency 1ClockOscilloscope
Tx Peak Differential Output5PAM3Oscilloscope
MDI Return LossSlaveVector Network Analyzer or Oscilloscope + AWG
MDI Mode ConversionSlaveVNA
100BASE-T1 PMA transmitter measurements
Test specificationTest modePattern typeInstrument
Tx Output Droop6Oscilloscope
Tx Distortion4PAM4Oscilloscope
Tx Timing Jitter (Master and Slave)1ClockOscilloscope
Tx Power Spectral Density and Power level5PAM3Oscilloscope
Tx Clock Frequency 2ClockOscilloscope
Tx Peak Differential Output5PAM3Oscilloscope
MDI Return LossSlaveVNA
MDI Mode Conversion SlaveVNA
MDI Common Mode Emission5PAM3Oscilloscope
10BASE-T1S PMA transmitter measurements
Test specificationTest modeInstrument
Tx Output Droop2Oscilloscope
Tx Timing Jitter 1Oscilloscope
Tx Power Spectral Density and Power level3Oscilloscope
Tx Peak Differential Output1Oscilloscope
MDI Return LossSlaveOscilloscope + AFG

The TekExpress Automotive Ethernet automated testing application

The Tektronix Automotive Ethernet application offers exceptional ease of use with the TekExpress Automation platform. Testing follows a logical workflow for quick, easy test setups, changes and review of test results. Valid testing requires proper cabling, probes, and connections between fixtures, instruments, and the device under test (DUT). The TekExpress Automotive Ethernet application provides setup instructions for each test, with images and reference illustrations showing correct configurations. It generates a comprehensive, date-stamped test report with pass/fail results, waveforms, and data plots.

Accurate, repeatable compliance tests follow a 5-step workflow.

Step 1: Selection of test suite

Automotive_Ethernet MSO70K 61W 73831 0

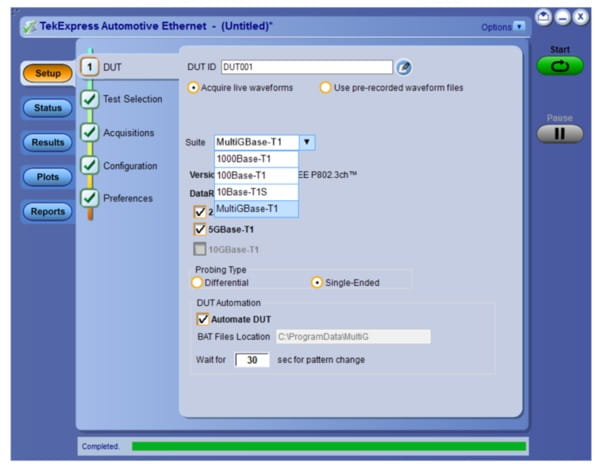

Selection of test suite in the DUT panel

Test selections includes Automotive Ethernet 100BASE-T1, 1000BASE-T1, and MultiGBASE-T1. You can select different speed gears for MultiGBASE-T1. The test selection, test limits, and configuration will be selected based on the test suite chosen. You can test using live oscilloscope waveforms or previously recorded waveforms or sessions.

Step 2: Test selection

Automotive_Ethernet MSO70K 61W 73831 0

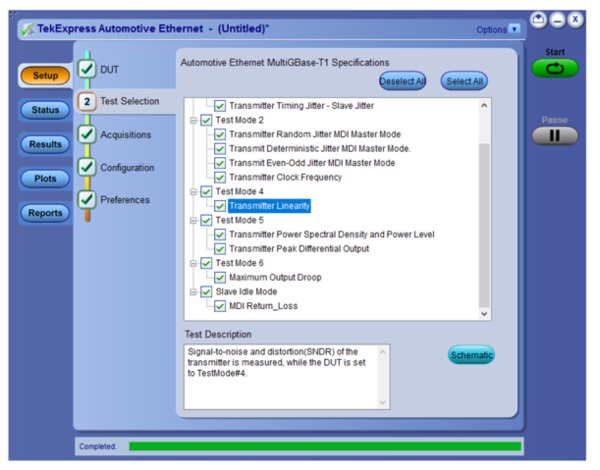

Multigigabit Ethernet test selection

Based on the test suite selection in Step 1, the TekExpress Automotive Ethernet application allows you to select one or multiple tests from the test tree for the respective test suite.

A schematic views and descriptions guide you through connections, along with test information and golden waveforms. If you select multiple tests, the application will provide prompts to set the correct DUT test mode and make the appropriate connections.

Automotive_Ethernet MSO70K 61W 73831 0
Automotive Ethernet 1000BASE-T1 Test selection
Automotive_Ethernet MSO70K 61W 73831 0

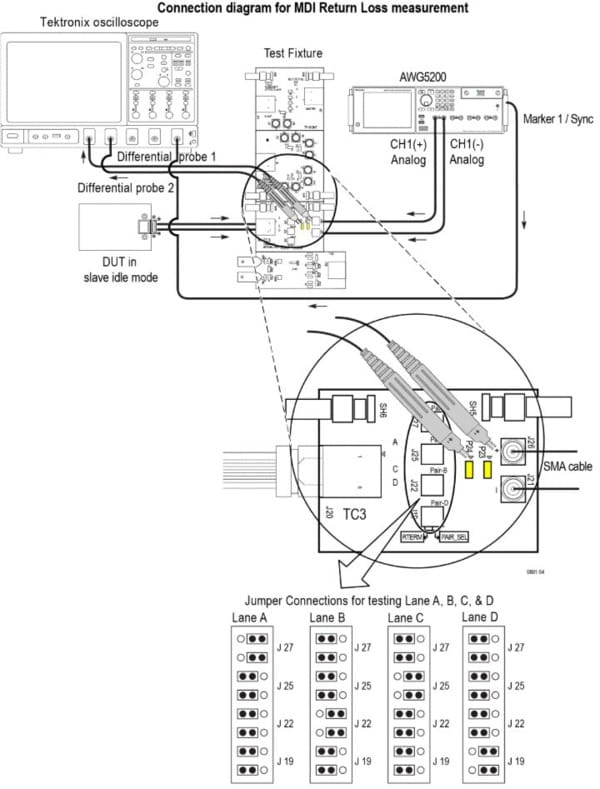

Automotive Ethernet connection diagram

Step 3: Signal validation

Automotive_Ethernet MSO70K 61W 73831 0

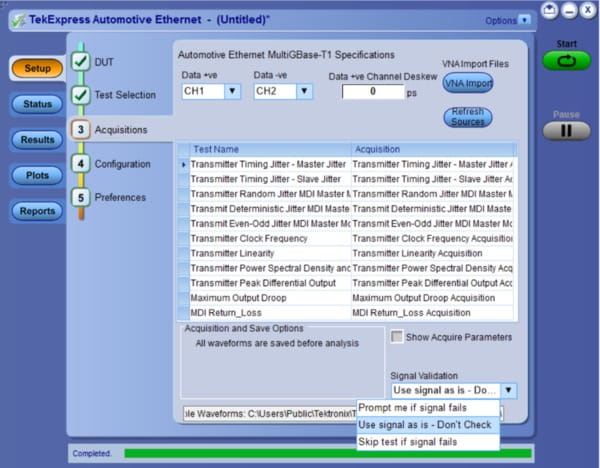

Signal acquisition and validation

It is important to validate the signal parameters before performing a compliance test. The TekExpress application checks for the correct test mode waveform before running any test. This ensures that the proper test connections are in place and that the DUT is sending the appropriate test pattern.

Step 4: Configuration of User defined and Compliance Mode

Automotive_Ethernet MSO70K 61W 73831 0

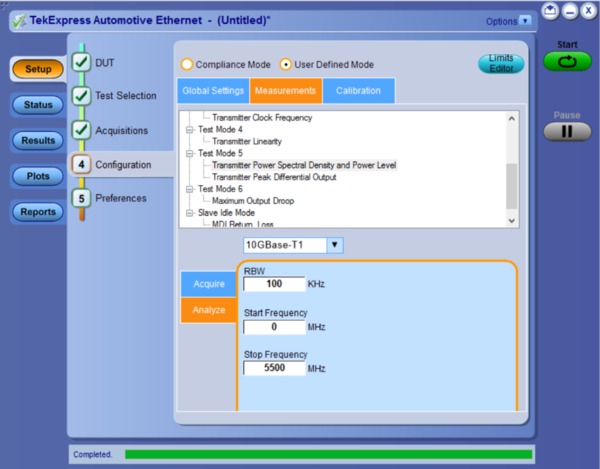

User defined configuration for PSD test

The TekExpress Automotive Ethernet application allows you to configure the test in compliance mode or user defined mode. In compliance mode, the application configures the oscilloscope per the test procedure defined in the test specifications from the applicable standard. The DUT is tested against limits defined by the standard.

In user defined mode, you can change the test parameters such as record length, sample rate, etc., as well as test limits. User-defined Mode allows you to test your device beyond compliance.

Step 5: Preferences

Automotive_Ethernet MSO70K 61W 73831 0

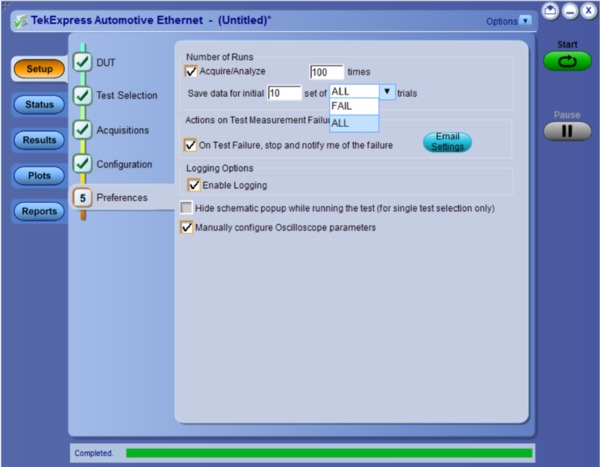

Multi-run configuration for statistical analysis

The TekExpress application allows you to run multiple consecutive tests for statistical analysis. You can save the waveforms from failed tests for debugging.

Pass/Fail report:

Automotive_Ethernet MSO70K 61W 73831 0

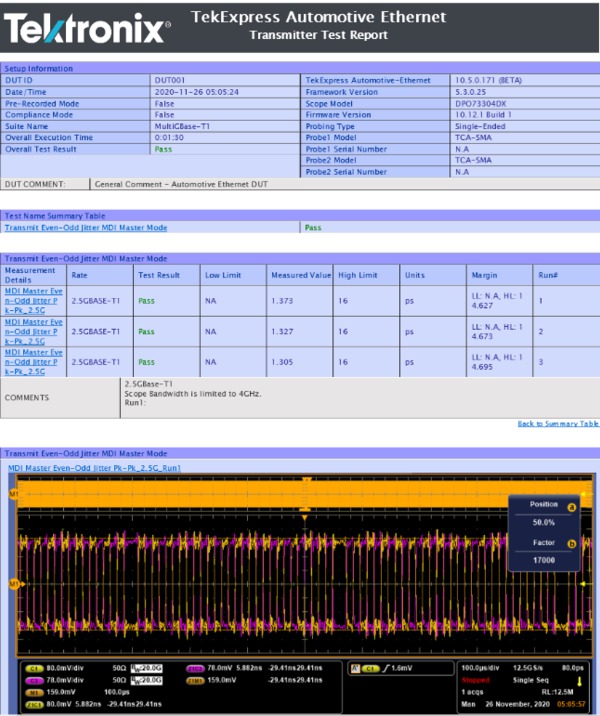

Detailed pass/fail report of MultiGBASE-T1

Creating compliance test documentation is quick and easy in the TekExpress application with a summary report in MHL or PDF formats. The TekExpress application generates a report after the test execution is complete, and includes pass/fail status to quickly analyze the test results. The report also includes test configuration details, waveform plots, oscilloscope displays, margin analysis, and statistical analysis to provide insights into your design.

Single instrument for time domain and frequency domain measurements

Automotive Ethernet compliance testing includes time domain measurements like jitter, droop, clock frequency and peak differential output. It also includes frequency domain measurements such as power spectral density and return loss. The Tektronix Automotive Ethernet application allows you to perform all of these measurements using an oscilloscope, eliminating the need to connect a spectrum analyzer or vector network analyzer.

Return loss measurement

The MDI return loss measurement determines the impedance mismatch from the differential impedance specification of 100 Ω, which will affect hardware interoperability. Return loss is a frequency domain measurement, but the Automotive Ethernet application can perform this test with an oscilloscope and function generator using a patented measurement approach. Return loss using this method is available for 10BASE-T1S, 100BASE-T1, and 1000BASE-T1.

Automotive_Ethernet MSO70K 61W 73831 0
Tektronix patented return loss measurement using oscilloscope and AWG for 100/1000BASE-T1

Automotive_Ethernet MSO70K 61W 73831 0
Return loss plot generated using oscilloscope and AWG method

Power spectral density

The power spectral density of a test signal for the selected standard is computed using oscilloscope math functions. Post processing is done on the signal to arrive at the PSD. The computed PSD is then compared with the specification by using lower and upper masks to arrive at the final result.

Automotive_Ethernet MSO70K 61W 73831 0
Power sprectral density plot

Analysis and debug beyond compliance

If a DUT fails any portion of the compliance test, powerful debugging and analysis tools such as DPOJET jitter analysis, PAM4 analysis, and protocol decoding are available to determine root cause and examine system-level performance.

DPOJET Jitter Analysis measurements (Opt. DJA)

The new jitter measurements introduced with MultiGBASE-T1 Ethernet provide separate limits for Deterministic Jitter (DJ), Even Odd Jitter (EOJ) and Random jitter (Rj). The DPOJET jitter analysis tool provides additional analysis capabilities like crosstalk and power noise separation to help find the root cause of failures.

Jitter tests quantify the timing variations of the edges of the signal, using specified test patterns. These jitter measurements include the contributions from duty cycle distortion and baseline wander. Jitter is determined by accumulating waveforms and measuring the width of the accumulated points at the eye crossing. The peak-to-peak jitter is inferred from minimum and maximum values in the tails of the histogram.

Automotive_Ethernet MSO70K 61W 73831 0

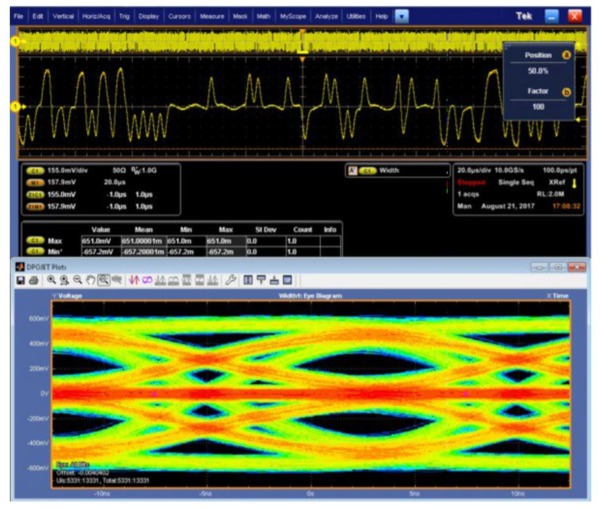

PAM3 Eye diagram using DPOJET

Apart from jitter measurements for MultiGBASE-T1, DPOJET allows you to perform analysis for following measurements:

  • Clock frequency and transmitter amplitude with histogram and trend analysis
  • Positive and negative droop measurements
  • Full characterization of jitter performance including TIE and histogram profiles.
Automotive_Ethernet MSO70K 61W 73831 0
Jitter measurement and analysis using DPOJET

PAM4 Analysis (Option PAM4)

Automotive_Ethernet MSO70K 61W 73831 0
PAM4 analysis

Automotive MultiGBASE-T1 uses four-level Pulse Amplitude Modulation (PAM4) for physical layer transmission since PAM4 signaling needs half the bandwidth as NRZ for the same data rate. However the 4 levels of PAM4 introduce additional complexity in signaling and place new demands on the test methodology. The PAM4 analysis tool offers several measurement and visualization capabilities to make validating PAM4 designs significantly more efficient.

PAM4 Analysis

  • Enhanced software clock recovery offers the industry's most robust clock recovery capability even from heavily impaired signals.
  • Integrated receiver equalization: Apply CTLE, FFE and DFE equalization to the acquired waveform to open a closed eye. Model different types of receiver settings to perform what-if analysis.
  • Configurable Bessel-Thomson filter offers the flexibility to tune bandwidth of the measurement receiver, either manually or automatically, based on detected data rate.
  • Waveform filter enables embed or de-embed test fixtures or channel models.

PAM4 Measurements

  • Jitter measurement and eye analysis: Full Characterization of the PAM4 eyes to support standard based and debug analysis.
  • Rise and fall times for all 12 PAM4 transitions offer the capability to analyze each transition type in the PAM4 signal.
  • Symbol and bit error detector: Accumulate SER and BER over multiple acquisition cycles.

Plots and reports

  • Comprehensive plots enable in-depth analysis: HTML report captures all the relevant setup configuration, measurement test results, and plot in single file that is easy to read and share. Measurement results across multiple acquisitions can be exported to a consolidated CSV file for easy multi-run analysis.

Automotive Ethernet decoder for 100BASE-T1 (Opt. SR-AUTOETH1)

Automotive_Ethernet MSO70K 61W 73831 0
100BASE-T1 Protocol decode solution

Decode and display Automotive Ethernet data in a protocol-aware view with the characters and names that are familiar from the standard such as the ordered sets: SOF, Electrical Idle, and EOF.

You can now feed the output of directional coupler to Tektronix oscilloscope for time domain view. SR-AUTOETH1 100BASE-T1 protocol decode software runs on DPO70000SX and MSO/DPO70000 Series oscilloscopes and easily decodes PAM3-encoded 100BASET1 signal. This enables engineers to quickly understand the protocol activity between the ECUs. A time-correlated event table view with waveform allows for quickly searching through events of interest simultaneously.

Key feautures

  • Decodes PAM3 encoded 100BASE-T1 signals.
  • Decodes Send_N mode packets without any training sequence.
  • Validate FCS and reports error packets in red.
  • Display the time stamp, packet type, IP source and destination address, decoding of the payload.
  • Detail view correlates the decoded packets with waveform using a bus diagram.
  • Separately displays Master and Slave packets.
  • Export the decoded data in CSV or TXT file format.
  • Report generation.

1Refer Ordering information section to know more about bandwidth requirements.

Ordering information

StandardCompliance testInstrument Model number
Multigigabit Ethernet Droop, Linearity, Dj and Rj Jitter, Power Spectral Density, Clock frequency, Peak Differential outputOscilloscope with bandwidth
  • ≥ 4 GHz bandwidth for 2.5Gbps
  • ≥ 8 GHz bandwidth for 5Gbps
  • ≥ 13 GHz bandwidth for 10Gbps
DPO70000 SX/DX series, MSO6B series
MDI Return LossVector Network Analyzer with bandwidth ≥ 4 GHz8.5 GHz ShockLine MS46522B 2-port Anritsu VNA
1000BASE-T1Droop, Jitter, Power Spectral Density, Clock frequency, Peak Differential outputOscilloscope with bandwidth ≥ 2 GHzDPO70000 C/SX/DX series, MSO5/6B series
Distortion Test2 channel Function Generators with bandwidth ≥ 125 MHzAFG31000 series or AWG5200
MDI Return LossAWG or Vector Network Analyzer 8.5 GHz ShockLine MS46522B 2-port Anritsu VNA
MDI Mode conversionVector Network Analyzer 8.5 GHz ShockLine MS46522B 2-port Anritsu VNA
100BASE-T1Droop, Jitter, Power Spectral Density, Clock frequency, Peak Differential output, Common mode emissionOscilloscope with bandwidth ≥ 1 GHzDPO70000 C/SX/DX series, MSO5/6B series
Distortion Test2 channel Function Generators with bandwidth ≥ 25 MHzAFG31000 series
MDI Return lossAFG(125 MHz) or Vector Network Analyzer 8.5 GHz ShockLine MS46522B 2-port Anritsu VNA
MDI Mode conversionVector Network Analyzer 8.5 GHz ShockLine MS46522B 2-port Anritsu VNA
10BASE-T1SDroop, Jitter, Power Spectral Density, Clock frequency, Peak Differential outputOscilloscope with bandwidth ≥ 350 MHzDPO70000 SX/DX series, MSO5/6B series
MDI Return lossArbitrary Function GeneratorsAFG31000 Series

Software option

StandardCompliance testOptionDescription
MultiGBASE-T1802.3ch Transmitter ComplianceAUTOEN10GTekExpress Automotive Ethernet -MultiGBASE-T1 Compliance Solution(Requires Opt. DJA)
DPO-UP AUTOEN10GTekExpress Automotive Ethernet -MultiGBASE-T1 Compliance Solution(Requires Opt. DJA); Upgrade
DPOFL-AUTOEN10GTekExpress Automotive Ethernet -MultiGBASE-T1 Compliance Solution(Requires Opt. DJA); Floating
100/1000BASE-T1IEEE and Open Alliance PMATransmitter complianceBRRTekExpress Automotive Ethernet Compliance
DPO-UP BRRTekExpress Automotive Ethernet Compliance; Upgrade
DPOFL-BRRTekExpress Automotive Ethernet Compliance; Floating
100BASE-T1Protocol decodeSR-AUTOETH1Automotive Ethernet 100BASE-T1 Protocol decode
10BASE-T1S IEEE and Open Alliance PMA Transmitter ComplianceAUTOEN10TekExpress Automotive Ethernet - 10BASE-T1S Compliance Solution
DPO-UP AUTOEN10TekExpress Automotive Ethernet - 10BASE-T1S Compliance Solution
DPOFL-AUTOEN10TekExpress Automotive Ethernet - 10BASE-T1S Compliance Solution; Floating

Pre-requisite software

StandardOptionDescription
MultiGBASE-T1DJAAdvance Jitter Analysis (Order preinstalled on a new oscilloscope)
5XL Extended record length - 62.5 M/Ch (required only with DPO70000 DX model)

Optional software

StandardOptionDescription
MultiGBASE-T1 PAM4PAM4 Transmitter Analysis
Low Speed Protocol decodeSR-AUTOCAN, LIN, FlexRay serial bus trigger and decode

MDI Return Loss with AWG/AFG method

StandardModel numberDescription
1000BASE-T1AWG5202 with opt 250, 2 HV Tektronix AWG5200 with high amplitude DC coupled with output option
TDP3500 (2 nos)3.5 GHz Differential Probe with TekVPI™ Probe Interface s (require TCA-VPI50 adapter)
100BASE-T1AFG311521 μHz to 150 MHz sine wave, 2-channel arbitrary function generator
TDP1500 (2 nos)1.5 GHz Differential Probe with TekVPI™ Probe Interface s (require TCA-VPI50 adapter)

Probe

StandardModel numberDescription
MultiGBASE-T1 (Optional)TDP35003.5 GHz Differential Probe with TekVPI™ Probe Interfaces (require TCA-VPI50 adapter), for clock measurement
1000BASE-T1TDP35003.5 GHz Differential Probe with TekVPI™ Probe Interfaces (require TCA-VPI50 adapter)
100BASE-T1TDP15001.5 GHz Differential Probe with TekVPI™ Probe Interfaces (require TCA-VPI50 adapter)

Accessory

AccessoryPart numberUse case
Multigigabit Ethernet FixturePCB S3401 SB 396373 2Compliance measurement
100/1000BASE-T1 Fixture100/1000BASE-T1 FixtureTF-XGBTCompliance measurement

02K3E6 K00S3 387390 2

02K3E6 S00S3 387391 2

02S3E6 S00S3 387392 2

02S3E6 K00S3 387393 2

Mode conversion and Return loss fixture with Rosenberger connector type
100BASE-T1 Protocol decode fixtureDCDP for H-MTD Protocol decode directional coupler
Clock divider unitTF-BRR-CFDDistortion test
Cable 2SMA(f) to SMA(m) phase stable cables and N(m) to SMA(m) adapters (2 nos)Return Loss and MDI Mode conversion
Cal kit for Anritsu 2TOSLKF50A-20 calibration kitMDI Return and Mode conversion loss
Power splitter 2Mini circuit Z99SC-621Common mode emission test

23rd Party items
