PSPL5828A 14 GHz超宽带放大器产品技术资料

PSPL5828A产品技术资料

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持和保修状态。

更多信息

在线阅读：

PSPL5828A产品技术资料

This Ultra-Broadband Amplifier is an excellent choice for either pulse or RF applications. It offers a very attractive price/performance ratio. It is AC coupled and is extremely broadband, covering 5 ½ decades from 50 kHz to 14 GHz. It has clean transient response and smooth gain vs. frequency response. This is a stable 50 Ω amplifier, and several can be connected in cascade for higher gains. The PSPL5828A is ideal for 10 Gb/s systems.

Key performance specifications



  • Linear amplifier with 10 dB gain
  • 50 kHz to 14 GHz bandwidth
  • +12 dBm output
  • Single 12 V power supply

Typical performance

PSPL5828A-Datasheet-785076-9-N

PSPL5828A-Datasheet-785076-10-N

Step Response, input is 15 ps rise time.


PSPL5828A-Datasheet-785076-11-N

Eye diagram, 10.66 Gb/s PRBS=223–1, 250 mV input

Specifications

Parameter Symbol Units Minimum 1 Typical Maximum Comments
Impedance Z Ohms   50
Upper 3 dB freq. fc,h GHz 12  14.4
Lower 3 dB freq. fc,I kHz   50
Small signal gain S21 dB 9  10.6    Meas. at 100 MHz
Return Loss, Input
Output		 S11
S22		 dB   15
18 		   Meas. at 100 MHz
Isolation S12 dB   19    Meas. at 100 MHz
Rise Time
Fall Time		 tr
tf		 ps   23
23 		 30
30 		 10-90%, 25 ps input
Overshoot   %   5  8  25 ps rise time input
Gain Flatness   dB   +/- 0.5    f
Eff. Input RMS Noise Voltage   μV rms   112
Noise Figure   dB   6  8  Meas. at 100 MHz
TDR Refl. Input
Output		   %   +25
-10
Max Power Out
(-1 dB gain comp)		   dBm   +12 dBm
+14 dBm
+11 dBm		   100 MHz
5 GHz
10 GHz
Max RF In (cw)
or peak pulse		   dBm
V		     10
1 		 Damage threshold
Supply Voltage VDC V 11.5    12.5
Supply Current IDC mA   53
Temperature TCASE
Tstor		 Deg C -25
-25 		   +75
+90 		 Operating (case)
Storage
Temp Coeff - Gain   dB/Deg C   -0.002
Temp Coeff - BW   %/Deg C   -0.16
Polarity Inverting
Coupling AC, input and output
RF Connectors SMA jacks (f)
DC Connector Solder pin
Warranty One Year

1 Guaranteed at +12 V and 23 C when max/min limits are given.

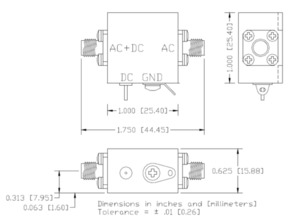

Mechanical dimensions
PSPL5828A-Datasheet-785076-12-N

Ordering information

Models
PSPL5828A
AMPLIFIER, 14 GHz, 10 dB GAIN
