PSPL5867 15 GHz Linear Amplifier Datasheet

PSPL5867 Datasheet

米乐m6网页版登录入口对于本技术资料上的产品不再有售。
查看 Tektronix Encore 了解翻新测试设备。
查看这些产品的支持保修状态。

更多信息

在线阅读:

PSPL5867 Datasheet

The PSPL5867 is a broadband linear amplifier intended for use amplifying signals with a minimum amount of distortion. The PSPL5867 demonstrates exceptional gain flatness and low deviation from linear phase while providing a bandwidth of 10 kHz to 15 GHz. This amplifier is ideal for use as a linear gain block in applications such as 12.5 Gb/s fiber optic receiver channels.

Key performance specifications
  • Broadband linear amplifier with 15 dB gain
  • 10 kHz to 15 GHz bandwidth
  • Low deviation from linear phase (±3 degrees)
  • 1 dB compression point of 13 dBm
  • RF power detection

Typical performance

The following figure shows the S21-Gain.

PSPL5867-Datasheet--384014-9-N

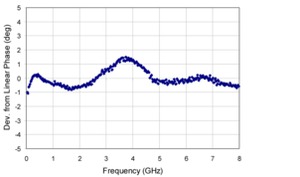

The following figure shows the deviation from linear phase.

PSPL5867-Datasheet--384014-10-N

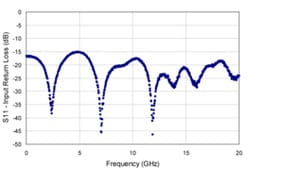

The following figure shows the input return loss.

PSPL5867-Datasheet--384014-11-N

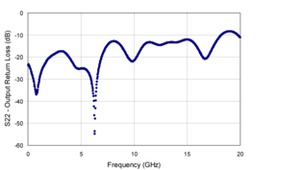

The following figure shows the output return loss.

PSPL5867-Datasheet--384014-12-N

Specifications

Parameter Symbol Units Minimum Typical Maximum Comments
Impedance Z Ohms   50
Upper 3 dB frequency fc,h GHz 14  15    3 dB roll-off point
Lower 3 dB frequency fc,l kHz   10  20  3 dB roll-off point
Small signal gain S21  dB 13  15  16  Avg. at 1 GHz and 2 GHz
Gain flatness   dB   +/-0.3  +/-0.5  50 MHz
Deviation from linear phase   deg   +/-3  +/-5  50 MHz
Return loss, input S11 dB     -10  50 MHz
Return loss, output S22 dB     -10
-9.5
50 MHz 14 GHz ≤ f
Eff. input RMS noise voltage   μV rms   99
Noise figure NF dB   5.0  7.0  f > 50 MHz
Maximum power out
(-1 dB gain comp)
  dBm 10  13
Power detector RF bandwidth   GHz   15
Power detector output bandwidth (video)   kHz   20
Power detector output voltage range   VDC 3.4  4.0  4.6  At 12 dBm RF output
Polarity Inverting
Coupling AC, input and output
Supply voltage (+) +VDC VDC 7.5  8.5
Supply voltage (-) -VDC VDC -5.5  -5  -4.5
Supply current (+) +IDC mA   105
Supply current (-) -IDC mA
Power dissipation Pdiss W   1.0  1.5
Maximum allowed input   dBm     15  Input damage threshold
Input DC bias range Vbias VDC -10    Input is AC coupled
Output DC bias range Vbias VDC -5    13  Output is AC coupled
Operating temperature TCASE Deg C   75  Case temperature
Storage temperature Tstor Deg C -40    125
RF connectors SMA jacks (f)
DC connector Solder pins
Warranty One year

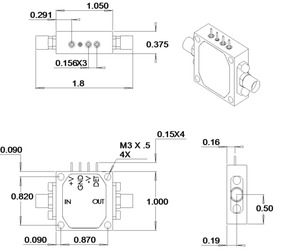

Mechanical dimensions
PSPL5867-Datasheet--384014-13-N

Ordering information

Models
PSPL5867
LINEAR AMPLIFIER, 15 GHz
Options
SMAJJ
SMA jacks (f) on input and output
