26 GHz Bias Tee

PSPL5541A Datasheet

The Model PSPL5541A is a very broadband, coaxial bias insertion tee and DC blocking capacitor. It passes very fast rise pulses with a minimum of waveform distortion. Its rise time is only 8 ps. The frequency response is flat over many decades, and the -3 dB bandwidth extends from 80 kHz to beyond 26 GHz.

Key performance specifications

80 kHz to 26 GHz
8 ps rise time
50 V, 100 mA

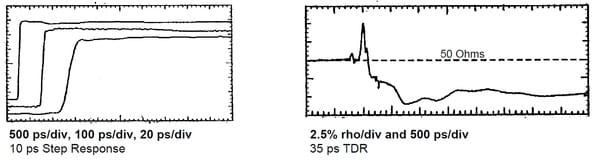

Typical performance

Specifications

Parameter	Symbol	Units	Typical	Maximum	Comments
Impedance	Z	Ohms	50
Upper 3 dB frequency	f_c,h	GHz	>26
Lower 3 dB frequency	f_c,l	kHz	80
Rise time	t_r	ps	8	12	10 – 90%
Insertion loss	S₂₁	dB	0.4 1 1.5		Typical f < 6 GHz f < 20 GHz
Return loss	S₁₁	dB	20 >15		f = 100 MHz f < 10 GHz
Refl. Coefficient (35 ps TDR)	Γ	%	-5		t > 1 ns (AC Port)
DC voltage	V	Volts		50
DC current	I	mA		100
Capacitance	C	μF	0.02		+/-20%
Inductance	L	mH	1		+/-20%
Resistance	R	Ohm	3.7
RF power	P	W		2	Average power
Isolation	S₁₃	dB	>40
DC path bandwidth	f_c,DC	kHz	16
Delay	Td	ps	213		AC port to AC+DC port
RF Connectors	SMA jacks (f)
DC Connector	SMA jack (f)
Warranty	One Year

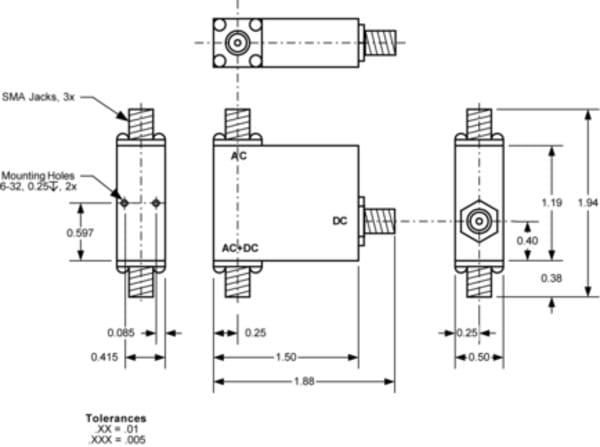

Mechanical dimensions

Ordering information

Models

PSPL5541A: BIAS TEE, 26 GHz, 50 V
